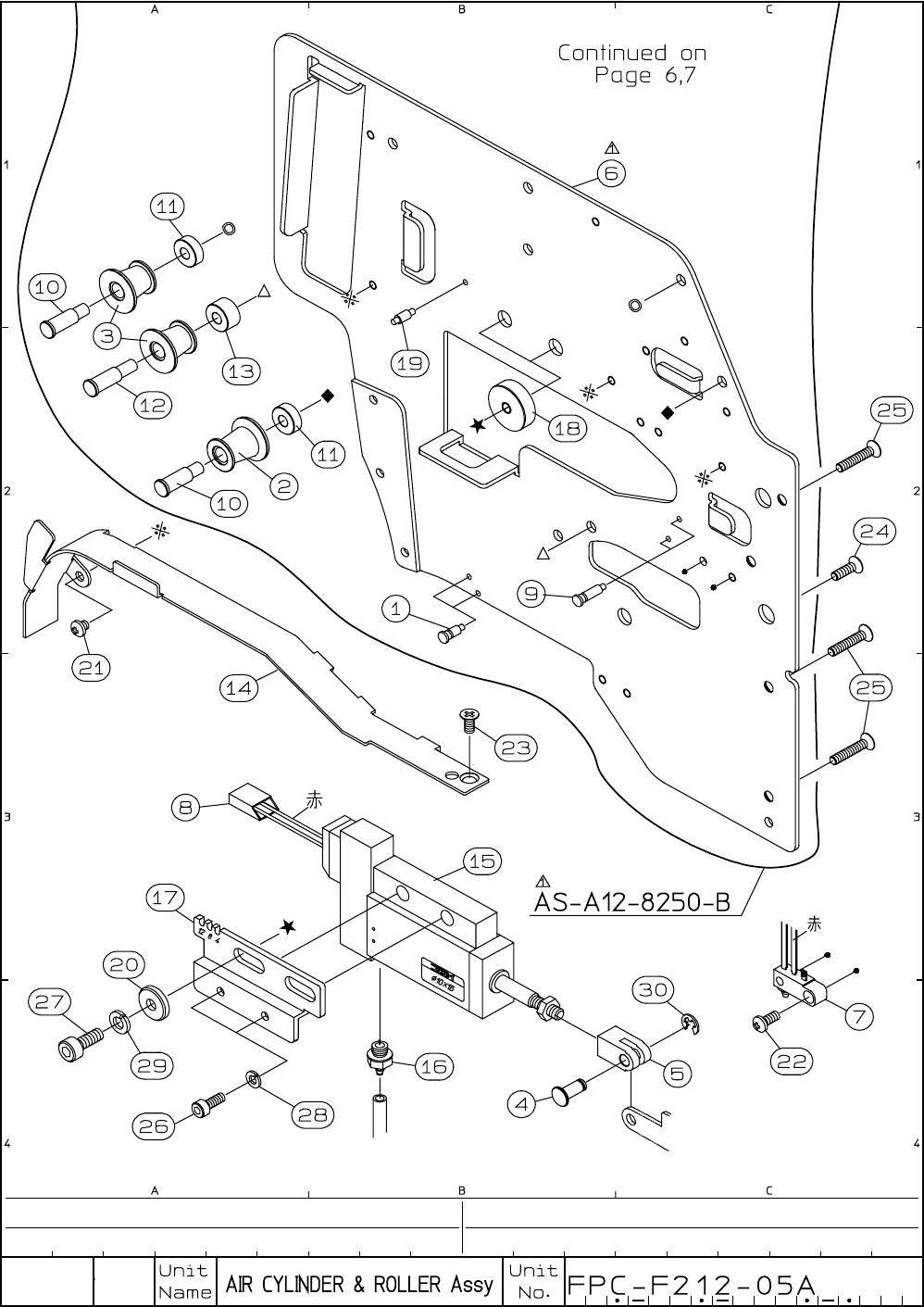

I･pulse F2 Series F2-12(A type) P 5 No. Code No. Parts Name Q'ty Parts No. ※1 LG4-M4A60-110 BACK PLATE ASSY 1 AS-A12-8250-B 1 K87-M116A-100 SPRING HOOK PIN 2 AS-A12-8250-B 2 LG4-M4A6H-000 TAPER ROLLER 1 FTA-A12-8172…

100%1 / 933
4-9
I･pulse　 F2　Series
F2-12(A type)
P 5
No. Code No. Parts Name Q'ty Parts No.
※1
LG4-M4A60-110 BACK PLATE ASSY 1 AS-A12-8250-B
1 K87-M116A-100 SPRING HOOK PIN 2
AS-A12-8250-B
2
LG4-M4A6H-000 TAPER ROLLER
1 FTA-A12-8172-1
3
LG4-M4A6G-000 TAPER ROLLER
2 FTA-A12-8172-2
4
LG4-M1A72-000 CONNECT PIN
1 FTA-A08-8146
5
LG4-M1A71-000 ROD CONNECT
1 FTA-A08-8147
※2
6 LG4-M4A61-110 BACK PLATE 1
FTA-A12-8250-B
7
LG4-M1AA3-000 MICRO SWITCH ASSY
1 FTA-A08-8151-6
8
LG4-M1AA4-000 VALVE HARNESS ASSY
1 FTA-A08-8151-7
9
LG4-M4A6J-000
SPRING HOOK PIN 2
FTA-A12-8156
10
LG4-M4A6A-000 ROLLER AXIS T
2 FTA-A12-8173
11
LG4-M4A6C-000 LEAF T
2 FTA-A12-8173-1
12
LG4-M4A6B-000 ROLLER AXIS U
1 FTA-A12-8174
13
LG4-M4A6D-000 LEAF U
1 FTA-A12-8174-1
14
LG4-M4A6N-100 MIDDLE GUIDE PLATE C
1 FTA-A12-8276
15
LG4-M4AB1-000 VAL PACK CYLINDER
1 BDA10×15-343W
16 LG4-M1AB3-000
BARB CONNECTOR
1 BF3BU-136W
17
LG4-M4A73-001 ADJUST PLATE
1 FTA-A12-8151-D
18
LG4-M4A6E-010
ADJUST PLATE STUD 2 FTA-A12-8151-1B
19
LG4-M4A6F-000
SET PIN 1 FTA-A12-8152
20
LG4-M4A74-000 PLANE WASHER
2
FTA-A12-8154-B
21
K87-M111N-000 SCREW,PAN HEAD+
3 3MC-3-P
22
LG4-M1ADC-000 SCREW,PAN HEAD+
1 3MC-7-P
23
LG4-M4ADE-000 SCREW,FLAT HEAD+
1
3MK-7-P
24 KW1-M45BG-000
SCREW,FLAT HEAD+
1 3MK-10-P
25
LG4-M4ADD-000 SCREW,FLAT HEAD+
3 3MK-15-P
26 K87-MB01H-000 BOLT,HEX SOCKET HEAD 2 3MX-8-P
27 K87-M23BB-000 BOLT,HEX SOCKET HEAD 2 4MX-10-P
28 K87-M21BM-000 SPRING LOCK WASHER 2
3MU-P
29
LG4-M4AD3-000
SPRING LOCK WASHER 2
4MU-P
30 K87-M11D7-000
CIRCLIP E
1 E.32
31
32
33
…F2-12-000078A～
※1．．．Serial No.1A～77A：LG4-M4A60-100
※2．．．Serial No.1A～77A：LG4-M4A61-100
　　
