F2FeederPartsList - 第266页
4D-13
I･pulse F2 Series
F2-12 (D type)
P 6
No. Code No. Parts Name Q'ty Parts No.
※1
LG4-M4A81-010
D.ROLLER ALL ASSY 1 AS5-A12-1170-B
※1
LG4-M4A82-010 INDEKING LEVER ASSY
1 AS3-A12-8164-C
KW1-M229F-000
DRIVE ROLLER ASSY
1 AS-A12-1170-B
KW1-M229L-000
IDLER ROLLER ASSY
1 AS-A12-1162-B
1 K87-M111C-000
PLANE WASHER
1 CTF-A08- 16-B
2 K87-M117B-000
PLANE WASHER
1 CTF-M08- 76-B
3 KW1-M229D-000
LEVER METAL
1 FTA-A12-1168
4 KW1-M229R-000
COLLAR
1 FTA-A12-1161
5 KW1-M229M-000
IDLE ROLLER
1 FTA-A12-1162-B
6 KW1-M229G-000
DRIVE ROLLER
1 FTA-A12-1170-B
7 KW1-M119H-000
COVER PLATE
1 FTA-A08-1171-B
8 KW1-M22A3-001
LOWER GUIDE PLATE,L
1 FTA-A12-1179-B
9
LG4-M4A62-000 METAL SHAFT
1 FTA-A12-8155
10
LG4-M4A63-000 LEVER AXIS PIN
1 FTA-A12-8159
11
LG4-M4A64-000 COLLAR
1 FTA-A12-8159-1
12
LG4-M4A65-000 TENSION LEVER
1 FTA-A12-8160
13
LG4-M4A8B-000
TENSION LEV.RE.SP.
1 FTA-A12-8160-700
14 KW1-M226G-000
ROLLER AXIS
1 FTA-A12-1163
15
LG4-M4A83-001 INDEXING LEVER
1 FTA-A12-8164-C
16
LG4-M4A8A-010
INDEXING LEV.RE.SP.
1 FTA-A12-8164-310B
※1 17
LG4-M4A84-010 ARM STUD
1 FTA-A12-8166-B
18 LG4-M4A6M-101 MIDDLE GUIDE PLATE T
1 FTA-A12-8276-1B
19 LG4-M4A6P-011 LOWER GUIDE PLATE,R
1 FTA-A12-8178-D
20 KW1-M119B-000 ONE･WAY CLUTCH 1 OWC4-13-3.1-L
21 KW1-M229E-000 ONE･WAY CLUTCH 1 OWC8-16-5.5-L
22 K87-M11BF-000
SCREW,FLAT HEAD
1 P2MK-4-IB
23 K87-M11BB-000
SCREW,FLAT HEAD
1 P2.6MK-5-IB
24 K87-M21BB-000 SCREW,TRUSS HEAD+ 1 T2.6M-5-P
25
K87-M111N-000
SCREW,PAN HEAD+ 6 3MC-3-P
26 K87-M11BE-000 THRUST WASHER 4 3V-0.5-8-P
※1 27 LG4-M1A85-000 ROLLER 1 FTA-A08-8167
28
29
30
※1．．．F2-12-898C～
4D-12
4D-13
I･pulse F2 Series
F2-12 (D type)
P 7

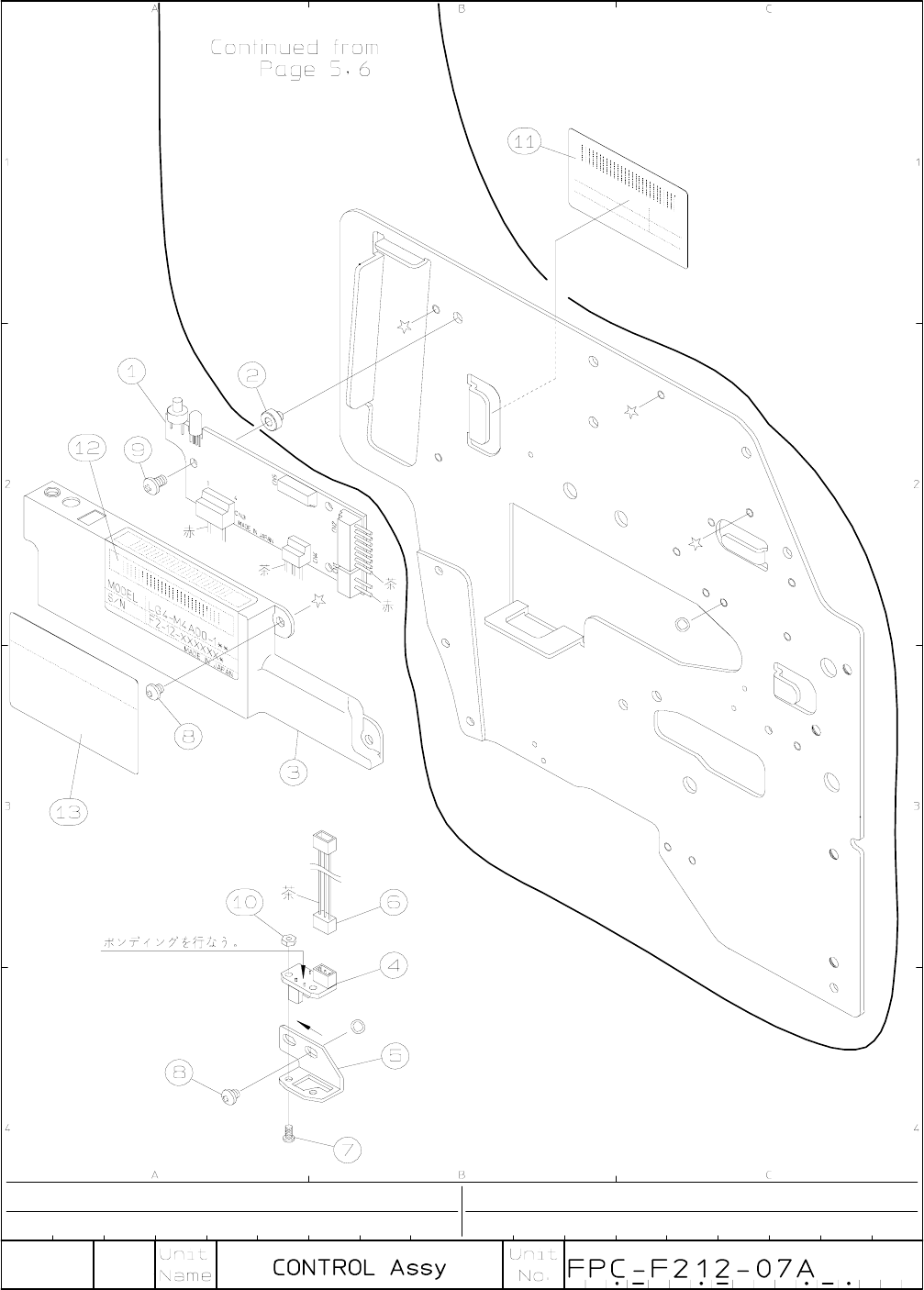

No. Code No. Parts Name Q'ty Parts No.
LG4-M1AH1-001
CONTROL BOARD 1
LG4-M1AH1-002
CONTROL BOARD 1
2
LG4-M1A6R-010
CONTROL BOARD COLLAR
3
FTA-A08-8152-B
3
LG4-M1A6S-100 CONTROL BOARD COVER
1
FTA-A08-8253
LG4-M1AH2-000
SENSOR CONTROL BOARD 1
LG4-M1AH2-002
SENSOR CONTROL BOARD
LG4-M1A6T-100 FTA-A08-8267
LG4-M1A6T-101
SENSOR GUIDE PLATE 1
FTA-A08-8267-B
6
LG4-M1AA6-100
SENSOR HARNESS ASSY 1 FTA-A08-8151-9
7
LG4-M1ADG-100
SCREW,PAN HEAD + 2 P2MC-4-P
8 K87-M111N-000 SCREW,PAN HEAD + 5
3MC-3-P
9
K87-M111W-000
SCREW,PAN HEAD + 3
3MC-5-P
10 LG4-M1AD4-100
SCREW NUT
2 2MH-P
11
LG4-M4AC1-100
SERIAL NO. STICKER 1
FTA-A12-8250-SNS
12
LG4-M4AC3-100
SERIAL NO. STICKER 1
FTA-A12-8250-SNS1
LG4-M1ACX-100
FTA-A08-8253-BLPS
LG4-M1ACX-110
FTA-A08-8253-PS-B
*1 LG4-M1ACX-111 PROTECTION SEAL 1
FTA-A08-8253-PS-C
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
*1
F2-12-2108D～
1
4
5
13
