4E-1 3
I･pulse F2 Series
F2-12 (E type)
P 6
No. Code No. Parts Name Q'ty Parts No.
LG4-M4A81-010 D.ROLLER ALL ASSY 1 AS5-A12-1170-B
LG4-M4A82-010 INDEKING LEVER ASSY 1 AS3-A12-8164-C
KW1-M229F-000 DRIVE ROLLER ASSY 1 AS-A12-1170-B
KW1-M229L-000 IDLER ROLLER ASSY 1 AS-A12-1162-B
1 K87-M111C-000 PLANE WASHER 1 CTF-A08- 16-B
2 K87-M117B-000 PLANE WASHER 1 CTF-M08- 76-B
3 KW1-M229D-000 LEVER METAL 1 FTA-A12-1168
4 KW1-M229R-000 COLLAR 1 FTA-A12-1161
5 KW1-M229M-000 IDLE ROLLER 1 FTA-A12-1162-B
6 KW1-M229G-000 DRIVE ROLLER 1 FTA-A12-1170-B
7 KW1-M119H-000 COVER PLATE 1 FTA-A08-1171-B
8 KW1-M22A3-001 LOWER GUIDE PLATE,L 1 FTA-A12-1179-B
9 LG4-M4A62-000 METAL SHAFT 1 FTA-A12-8155
10 LG4-M4A63-000 LEVER AXIS PIN 1 FTA-A12-8159
11 LG4-M4A64-000 COLLAR 1 FTA-A12-8159-1
12 LG4-M4A65-000 TENSION LEVER 1 FTA-A12-8160
13 LG4-M4A8B-000
TENSION LEV. RE. SP.
1 FTA-A12-8160-700
14 KW1-M226G-000 ROLLER AXIS 1 FTA-A12-1163
15 LG4-M4A83-001 INDEKING LEVER 1 FTA-A12-8164-C
16 LG4-M4A8A-010
INDEKING LEV. RE. SP.
1 FTA-A12-8164-310B
17 LG4-M4A84-010 ARM STUD 1 FTA-A12-8166-B
18 LG4-M4A6M-101 MIDDLE GUIDE PLATE T 1 FTA-A12-8276-1B
19 LG4-M4A6P-011 LOWER GUIDE PLATE,R 1 FTA-A12-8178-D
20 KW1-M119B-000 ONE･WAY CLUTCH 1 OWC4-13-3.1-L
21 KW1-M229E-000 ONE･WAY CLUTCH 1 OWC8-16-5.5-L
22 K87-M11BF-000 SCREW,FLAT HEAD+ 1 P2MK-4-IB
23 K87-M11BB-000 SCREW,FLAT HEAD+ 1 P2.6MK-5-IB
24 K87-M21BB-000 SCREW,TRUSS HEAD+ 1 T2.6M-5-P
25 K87-M111N-000 SCREW,PAN HEAD+ 6 3MC-3-P
26 K87-M11BE-000 THRUST WASHER 4 3V-0.5-8-P
27 LG4-M1A85-000 ROLLER 1 FTA-A08-8167
28
29
30
4E-12
4E-13

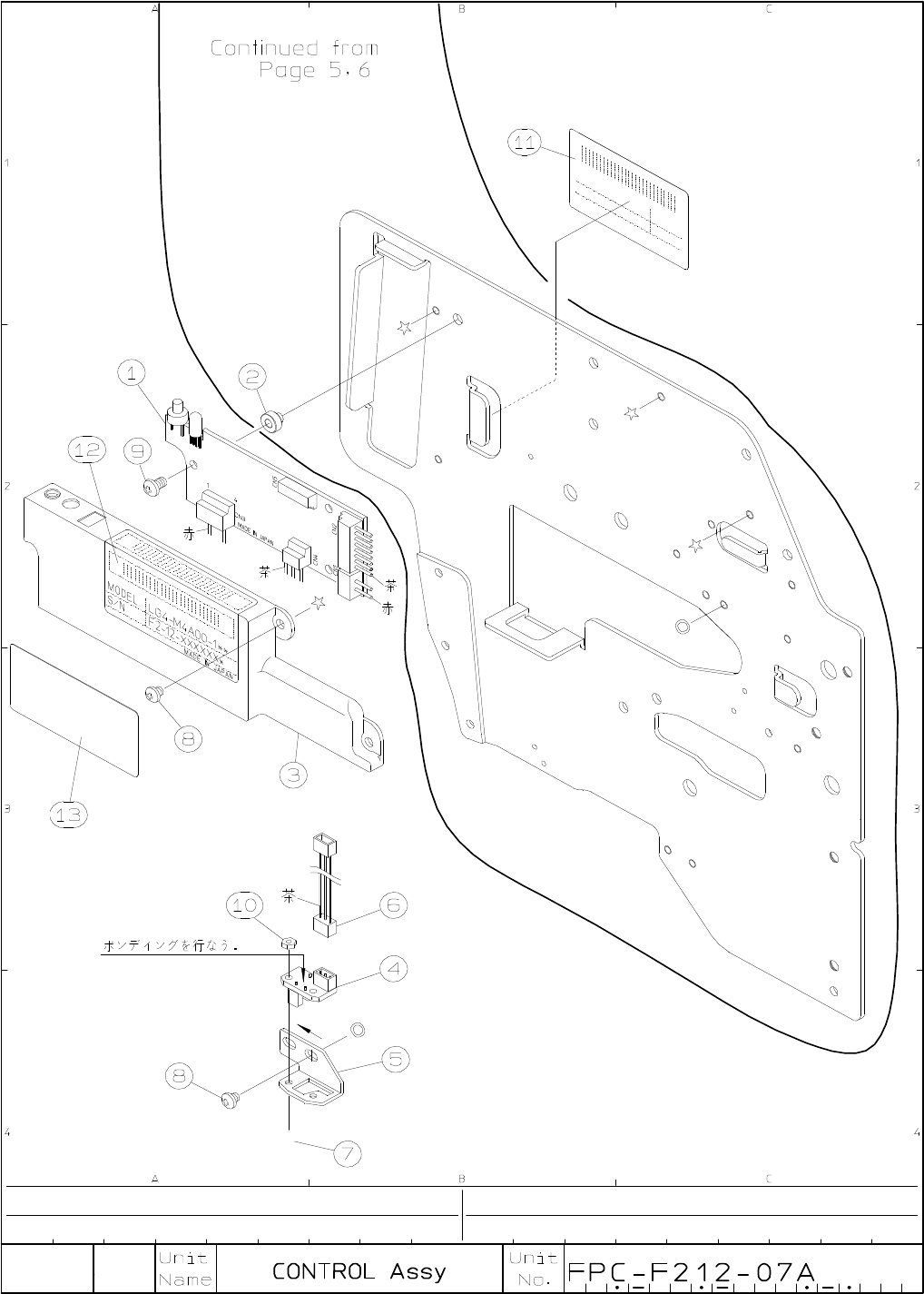

I･pulse F2 Series
F2-12 (E type)
P 7
No. Code No. Parts Name Q'ty Parts No.
1 LG4-M1AH1-006
BOARD ITF (REV.A) 1
2
LG4-M1A6R-010
CONTROL BOARD COLLAR
3
FTA-A08-8152-B
3
LG4-M1A6S-100 CONTROL BOARD COVER
1
FTA-A08-8253
4 LG4-M1AH2-002
BOARD ITF-A (REV.A) 1
5 LG4-M1A6T-101 SENSOR GUIDE PLATE FTA-A08-8267-B
6
LG4-M1AA6-100
SENSOR HARNESS ASSY 1 FTA-A08-8151-9
7
LG4-M1ADG-100
SCREW,PAN HEAD+ 2 P2MC-4-P
8 K87-M111N-000 SCREW,PAN HEAD+ 5
3MC-3-P
9
K87-M111W-000
SCREW,PAN HEAD+ 3
3MC-5-P
10 LG4-M1AD4-100
SCREW NUT
2 2MH-P
11
LG4-M4AC1-100
SERIAL NO. STICKER 1
FTA-A12-8250-SNS
12
LG4-M4AC3-100
SERIAL NO. STICKER 1
FTA-A12-8250-SNS1
※1
13
LG4-M1ACX-112 PROTECTION SEAL 1
FTA-A08-8253-PS-D
14
15
16
17
18
19
20
21
22
23
24
25
26
※1…F2-12-2418E～
