4E- 15
I･pulse F2 Series
F2-12 (E type)
P 7
No. Code No. Parts Name Q'ty Parts No.
1 LG4-M1AH1-006
BOARD ITF (REV.A) 1
2
LG4-M1A6R-010
CONTROL BOARD COLLAR
3
FTA-A08-8152-B
3
LG4-M1A6S-100 CONTROL BOARD COVER
1
FTA-A08-8253
4 LG4-M1AH2-002
BOARD ITF-A (REV.A) 1
5 LG4-M1A6T-101 SENSOR GUIDE PLATE FTA-A08-8267-B
6
LG4-M1AA6-100
SENSOR HARNESS ASSY 1 FTA-A08-8151-9
7
LG4-M1ADG-100
SCREW,PAN HEAD+ 2 P2MC-4-P
8 K87-M111N-000 SCREW,PAN HEAD+ 5
3MC-3-P
9
K87-M111W-000
SCREW,PAN HEAD+ 3
3MC-5-P
10 LG4-M1AD4-100
SCREW NUT
2 2MH-P
11
LG4-M4AC1-100
SERIAL NO. STICKER 1
FTA-A12-8250-SNS
12
LG4-M4AC3-100
SERIAL NO. STICKER 1
FTA-A12-8250-SNS1
※1
13
LG4-M1ACX-112 PROTECTION SEAL 1
FTA-A08-8253-PS-D
14
15
16
17
18
19
20
21
22
23
24
25
26
※1…F2-12-2418E～

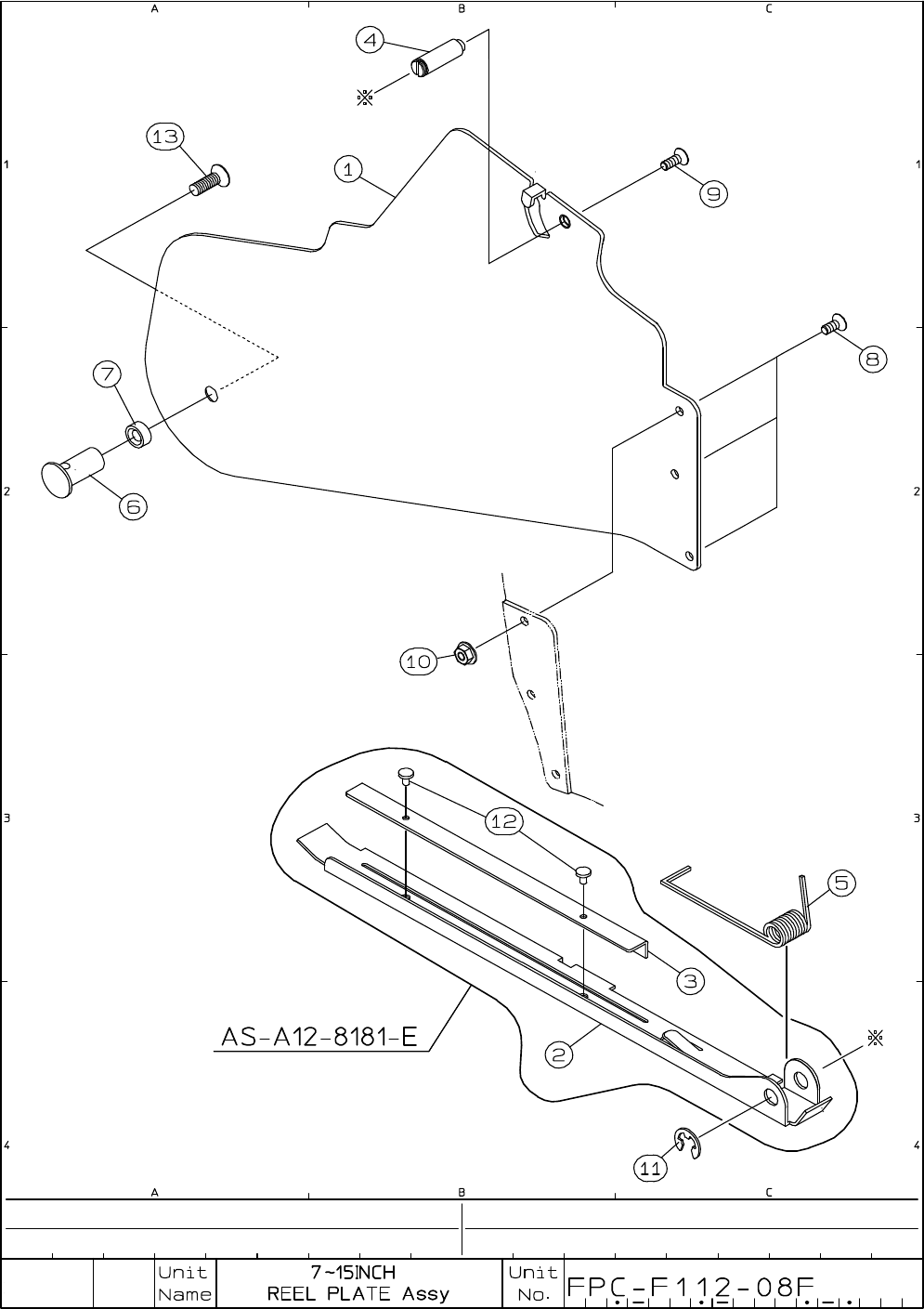

4E-15
I･pulse F2 Series
F2-12 (E type)
P 8
No. Code No. Parts Name Q'ty Parts No.
LG4-M4A9D-001 TENSION LEVER ASSY
1
AS-A12-8181-E
1
LG4-M4A91-012 REEL PLATE
1
FTA-A12-8180-E
2
LG4-M4A9A-002 TENSION LEVER
1
FTA-A12-8181-E
3
LG4-M4A9C-001 GUIDE ARM
1 FTA-A12-8181-E1
4
LG4-M4A92-010 TENSION AXIS
1
FTA-A12-8182-B
5
LG4-M4A9B-001 COIL SPRING
1 FTA-A12-8183-C
6
LG4-M4A93-010 REEL AXIS
1 FTA-A12-8185-C
7 LG4-M4A9E-010
SPACER
1
FTA-A12-8187-C
8
LG4-M4ADE-000
SCREW,FLAT HEAD+ 3 3MK-7-P
9 K87-M55BN-000 SCREW,FLAT HEAD+ 1 3MK-8-P
10 K87-M111U-000 SCREW FLANGE NUT 3 3MH-FS
11
LG4-M4AD4-000 CIRCLIP E
1 E.50
12
LG4-M4AD5-000 FLAT RIVET
2
2×4-2.5-BS
13
LG4-M4ADH-000
SCREW,FLAT HEAD+ 1 4MK-12-P
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
4E-16
