1B-7
I･pulse F2 Series
F2-82-0603 (B type)
P 3
No. Code No. Parts Name Q'ty Parts No.
LG4-M1A30-012
HOLD LEVER ASSY 1
AS3-A08-8190-B
1 K87-M111G-100 PUSH PIN 1
CTF-M08- 325
2 LG4-M1A1K-000 LEVER AXIS PIN 1
FTA-A08-8130-B
3 LG4-M1A1A-001
COVER PLATE
1
FTA-A08-8149-C
4
LG4-M1AA2-101
SP.CONNECTOR ASSY
1
FTA-A08-8151-12B
5 LG4-M1A31-000
HOLD LEVER M
1 FTA-A08-8190-B
6 LG4-M1A32-000
HOLD LEVER S
1 FTA-A08-8190-1B
7 LG4-M1A34-001
CLAMP LEVER
1 FTA-A08-8191-C
8 LG4-M1A3M-000 SCREW COIL SPRING 1
FTA-A08-8191-SCSp
9 LG4-M1A3A-000
HINGE PIN 1
1
FTA-A08-8191-1
10
LG4-M1A35-001
CLANK ARM
1 FTA-A08-8192-B
11 LG4-M1A3B-000
HINGE PIN 2
1
FTA-A08-8192-1
12 LG4-M1A36-000
ARM
1
FTA-A08-8193
13 LG4-M1A33-000
LINK PLATE
1
FTA-A08-8194
14
LG4-M1A3L-000
CLANK ARM AXIS PIN
1
FTA-A08-8195
15 LG4-M1A37-010 ADJUST CLAMP PIN 1
FTA-A08-8196
16 LG4-M1A3K-001
CLAMP LEVER AXIS PIN
1 FTA-A08-8197-B
17 LG4-M1A38-000
LINK PIN T
1
FTA-A08-8198
18
LG4-M1A39-000
LINK PIN U
1
FTA-A08-8199
19 LG4-M1ADC-000
SCREW,PAN HEAD+ 2 3MC-7-P
20 K87-M111S-000
SCREW,FLAT HEAD+
2
3MK-6-P
21 K87-M111T-000 SCREW,SET 1 3MY-3-F
22 K87-M111R-000 SCREW,SET 2
3MY-5-F
23 K87-M111U-000
SCREW FLANGE NUT
2
3MH-FS
24 K87-M21BN-000
SCREW NUT
2
3MH-P
25 K87-M21BM-000
SPRING LOCK WASHER
1
3MU-P
26 K87-M1115-000
CIRCULAR RIVET
1
2-10
27
28
29
30
31
32
33
1B-6
1B-7
I･pulse F2 Series
F2-82-0603 (B type)
P 4
No. Code No. Parts Name Q'ty Parts No.

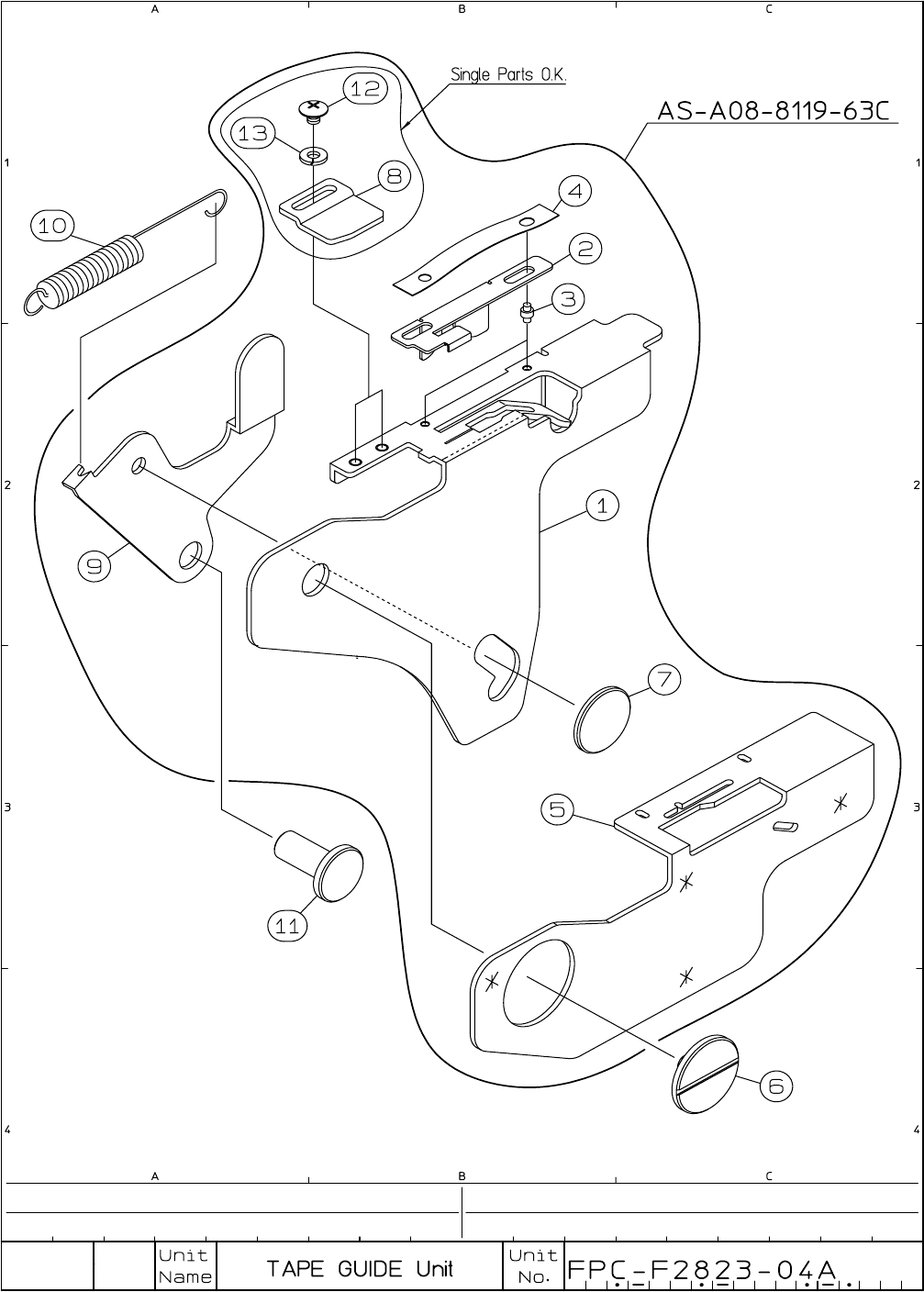

LG4-M3A40-011 T.G. PLATE ASSY 1 AS -A08-8119-63C
1
LG4-M3A41-011 TAPE GUIDE PLATE 1 FTA-A08-8119-63C
2
LG4-M3A42-000 SHUTTER PLATE 1 FTA-A08-8120-63
3
LG4-M1A45-000 SHUTTER GUIDE PIN 2 FTA-A08-8121
4 LG4-M1A44-001 SHUTTER PUSH SPRING 1 FTA-A08-8122-B
5
LG4-M3A43-010 SHUTTER GUARD PLATE 1 FTA-A08-8123-63B
6
LG4-M1A4L-000 T.G. GUIDE SCREW 1 FTA-A08-8124
7
LG4-M1A47-000 T.G. GUIDE PIN 1 FTA-A08-8125
8
LG4-M3A49-000 ADJUST PLATE 1 FTA-A08-8126-63
9
LG4-M1A46-000 LOCK LEVER 1 FTA-A08-8127-B
10 LG4-M1A48-001
T.G. PUSH SPRING 1 FTA-A08-8127-50
11
LG4-M1A4K-000 T.G.A. GUIDE PIN 1 FTA-A08-8129
12
K87-M1547-000 SCREW,TRUSS HEAD 2 T2M-2.5-P
13
LG4-M3AD3-000 SPRING LOCK WASHER 2 2MU-P
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
1B-8
