I･pulse F2 Series F2-82-0603 (B type) P 6 Code No. Parts Name Q'ty Parts No. LG4-M1A87-000 TENSION LEVER ASSY 1 AS -A08-8160-B LG4-M1A8E-000 IDLER ROLLER ASSY 1 AS -A08-8162 LG4-M1A86-000 I.ROLLER ALL ASSY 1 AS1-A08…
1B-11
I･pulse F2 Series
F2-82-0603 (B type)
P 6

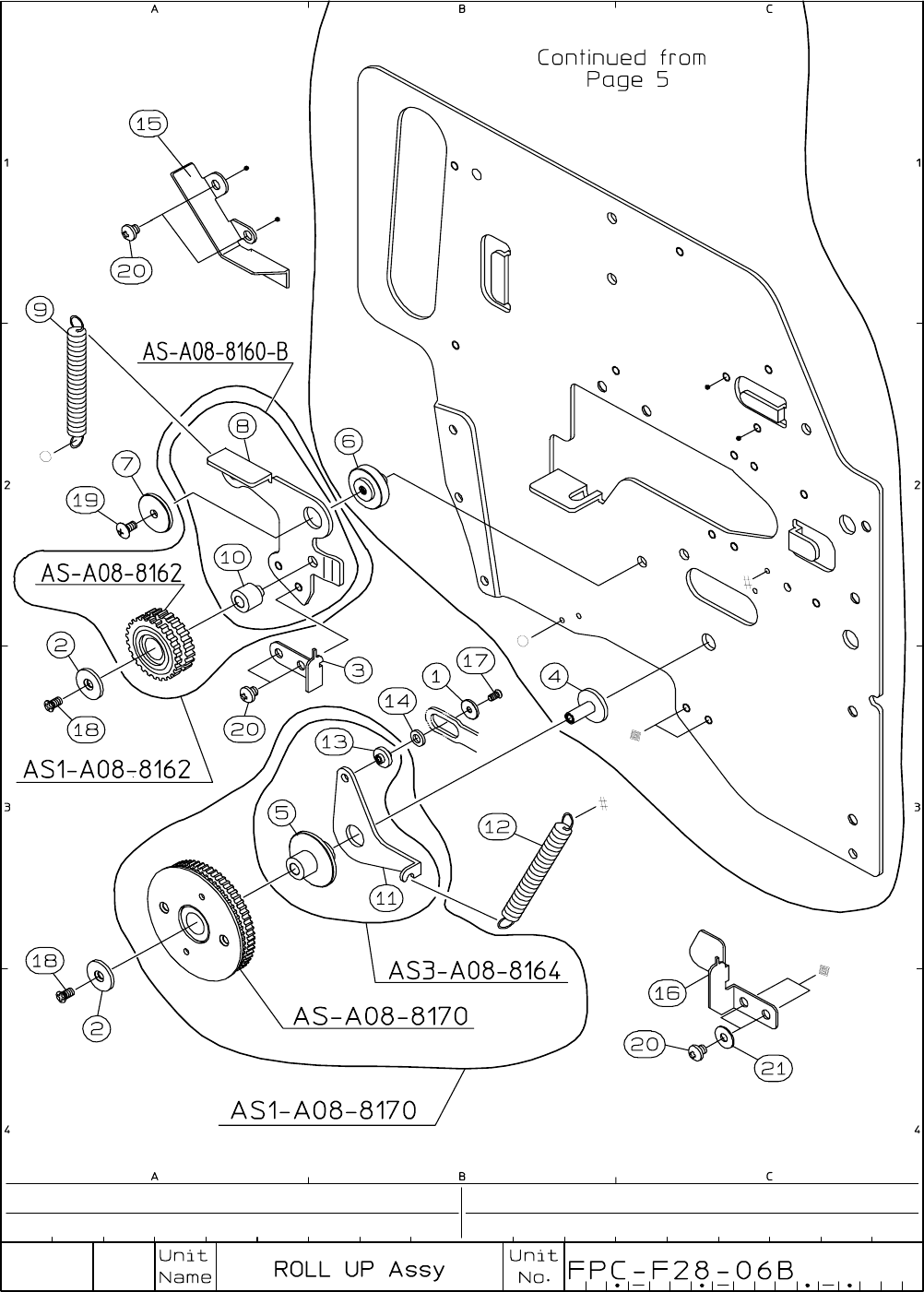

Code No. Parts Name Q'ty Parts No.
LG4-M1A87-000
TENSION LEVER ASSY
1 AS -A08-8160-B
LG4-M1A8E-000
IDLER ROLLER ASSY
1 AS -A08-8162
LG4-M1A86-000
I.ROLLER ALL ASSY
1 AS1-A08-8162
LG4-M1A82-012
INDEXING LEVER ASSY
1 AS3-A08-8164
LG4-M1A8D-000
DRIVE ROLLER ASSY
1 AS -A08-8170
LG4-M1A81-003 D.ROLLER ALL ASSY 1 AS1-A08-8170
1 K87-M111C-000
PLANE WASHER
1 CTF-A08- 16-B
2 K87-M117B-000
PLANE WASHER
2 CTF-M08- 76-B
3 KW1-M11A3-001
LOWER GUIDE PLATE,L
1 FTA-A08-1179-C
4 LG4-M1A62-000
METAL SHAFT
1 FTA-A08-8155
5 LG4-M1A8C-000
LEVER METAL
1 FTA-A08-8158-B
6 LG4-M1A63-010
LEVER AXIS PIN
1 FTA-A08-8159-B
7 LG4-M1A64-010
WASHER
1 FTA-A08-8159-1C
8 LG4-M1A65-010
TENSION LEVER
1 FTA-A08-8160-B
9 LG4-M4A8B-000
TENSION LEVER RE.SP.
1 FTA-A12-8160-700
10 LG4-M1A66-010
ROLLER AXIS
1 FTA-A08-8163-B
11 LG4-M1A83-000
INDEXING LEVER
1 FTA-A08-8164
12 LG4-M1A8A-000
INDEXING LEV.RE.SP.
1 FTA-A08-8164-440
13 LG4-M1A84-010
ARM STUD
1 FTA-A08-8166-B
14 LG4-M1A85-000
ROLLER
1 FTA-A08-8167
15 LG4-M1A6M-100
MIDDLE GUIDE PLATE T
1 FTA-A08-8277
16 LG4-M1A6P-011
LOWER GUIDE PLATE,R
1 FTA-A08-8178-C
17 K87-M11BF-000
SCREW,FLAT HEAD
1 P2MK-4-IB
18
K87-M11BB-000
SCREW,FLAT HEAD
2 P2.6MK-5-IB
19
K87-M21BB-000 SCREW,TRUSS HEAD+ 1 T2.6M-5-P
20
K87-M111N-000 SCREW,PAN HEAD+ 6 3MC-3-P
21
K87-M11BE-000 THRUST WASHER 2 3V-0.5-8-P
22
23
24
25
26
27
28
