I･pulse F2 Series F2-16 (C type) 16mm P 6 No. Code No. Parts Name Q'ty Parts No. ※1 LG4-M5A81-010 D.ROLLER ALL ASSY 1 AS5-A16-1170-B ※1 LG4-M5A82-010 INDEKING LEVER ASSY 1 AS4-A12-8164-C KW1-M329F-000 DRIVE ROLLER A…
5C-11

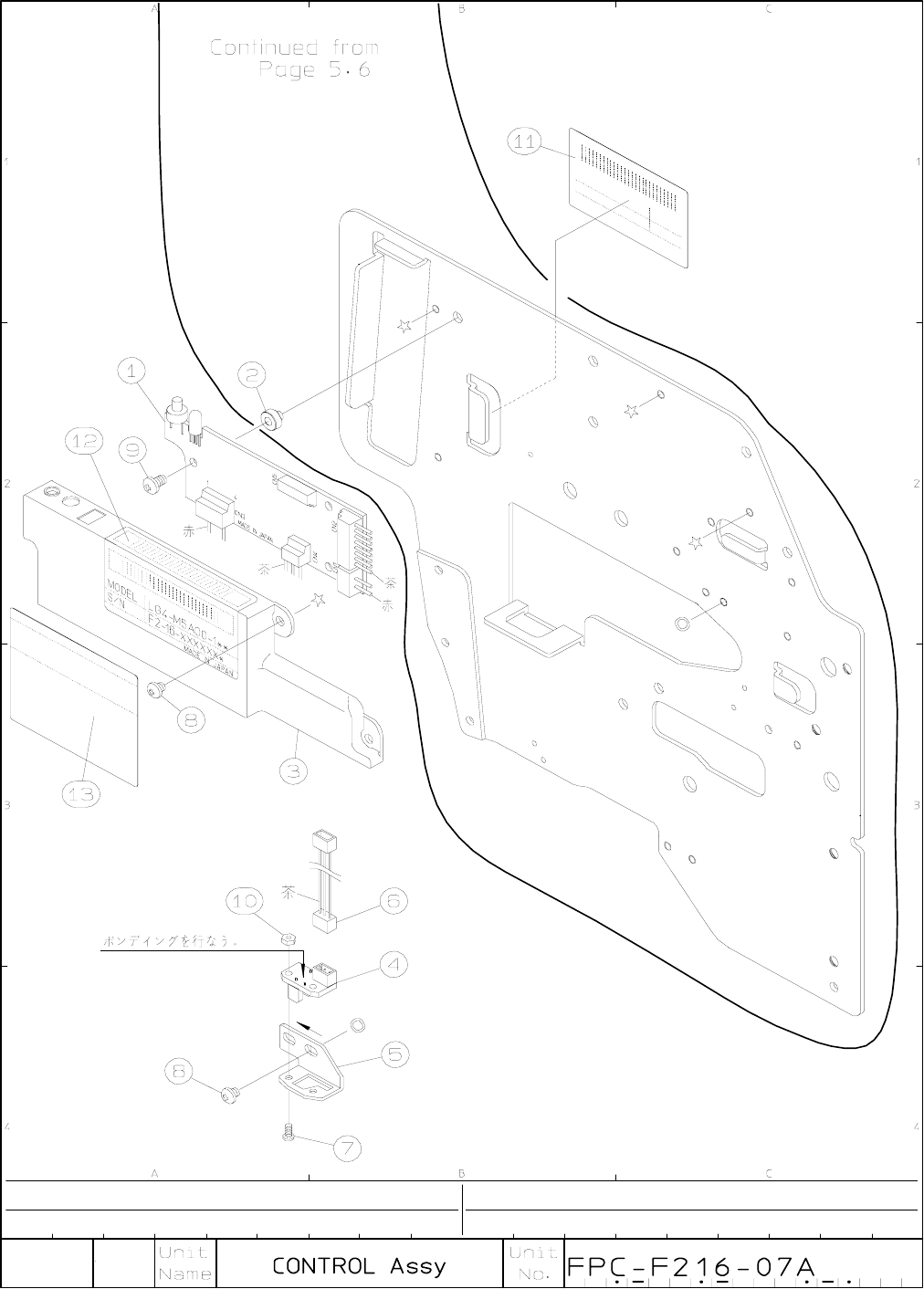

I･pulse F2 Series
F2-16 (C type) 16mm
P 6
No. Code No. Parts Name Q'ty Parts No.
※1
LG4-M5A81-010
D.ROLLER ALL ASSY 1 AS5-A16-1170-B
※1
LG4-M5A82-010 INDEKING LEVER ASSY
1 AS4-A12-8164-C
KW1-M329F-000
DRIVE ROLLER ASSY
1 AS-A16-1170-B
KW1-M329L-000
IDLER ROLLER ASSY
1 AS-A16-1162-B
1 K87-M111C-000
PLANE WASHER
1 CTF-A08- 16-B
2 K87-M117B-000
PLANE WASHER
1 CTF-M08- 76-B
3
LG4-M5A85-000 LEVER METAL
1 FTA-A16-8158
4 KW1-M229R-000
COLLAR
1 FTA-A12-1161
5 KW1-M329M-000
IDLE ROLLER
1 FTA-A16-1162-B
6 KW1-M329G-000
DRIVE ROLLER
1 FTA-A16-1170-B
7 KW1-M119H-000
COVER PLATE
1 FTA-A08-1171-B
8 KW1-M32A3-001
LOWER GUIDE PLATE,L
1 FTA-A16-1179ｰB
9
LG4-M5A62-000 METAL SHAFT
1 FTA-A16-8155
10
LG4-M4A63-000 LEVER AXIS PIN
1 FTA-A12-8159
11
LG4-M4A64-000 COLLAR
1 FTA-A12-8159-1
12
LG4-M4A65-000 TENSION LEVER
1 FTA-A12-8160
13
LG4-M4A8B-000
TENSION LEV. RE. SP.
1 FTA-A12-8160-700
14 KW1-M326G-000
ROLLER AXIS
1 FTA-A16-1163
15
LG4-M4A83-001 INDEKING LEVER
1 FTA-A12-8164-C
16
LG4-M4A8A-010
INDEKING LEV. RE. SP.
1 FTA-A12-8164-310B
※1 17
LG4-M4A84-010 ARM STUD
1 FTA-A12-8166-B
18 LG4-M5A6M-101 MIDDLE GUIDE PLATE T
1 FTA-A16-8276-1B
19 LG4-M5A6P-011 LOWER GUIDE PLATE,R
1 FTA-A16-8178-D
20 KW1-M119B-000 ONE･WAY CLUTCH 1 OWC4-13-3.1-L
21 KW1-M229E-000 ONE･WAY CLUTCH 1 OWC8-16-5.5-L
22 K87-M11BF-000
SCREW,FLAT HEAD+
1 P2MK-4-IB
23 K87-M11BB-000
SCREW,FLAT HEAD+
1 P2.6MK-5-IB
24 K87-M21BB-000 SCREW,TRUSS HEAD+ 1 T2.6M-5-P
25
K87-M111N-000
SCREW,PAN HEAD+ 6 3MC-3-P
26 K87-M11BE-000 THRUST WASHER 4 3V-0.5-8-P
※1 27 LG4-M1A85-000 ROLLER 1 FTA-A08-8167
28
29
30
※1 … F2-16-000637C～
