MODEL　　：　F2-82-1005 (A_type)
CODE No. ：　LG4-M2A00-101
Serial No.
F2-825-000889A～
2-1
I･pulse　 F2　Series
F2-82-1005(A type)　　　
P 1

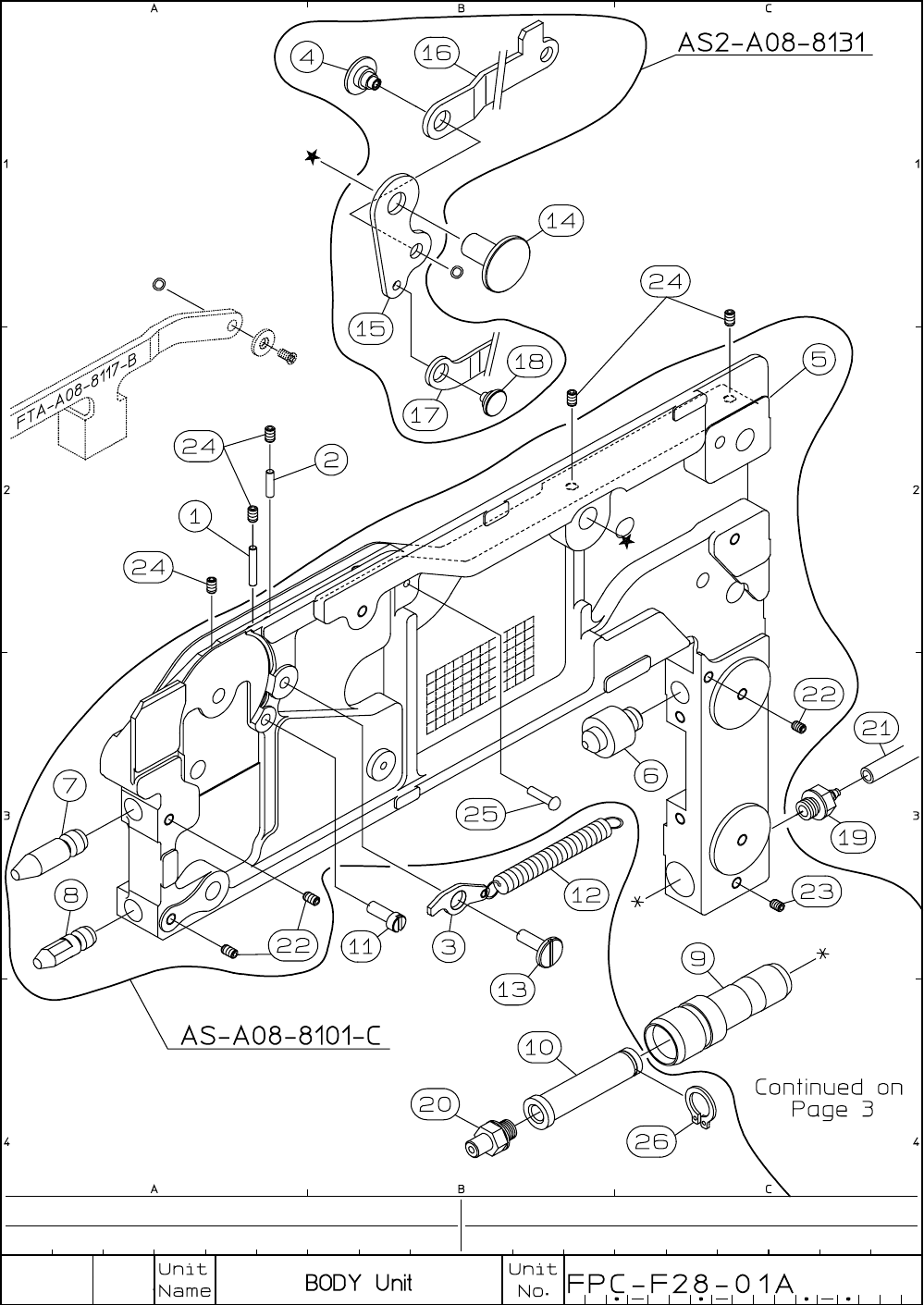

No. Code No. Parts Name Q'ty Parts No.
LG4-M1A10-020
BODY ASSY 1 AS -A08-8101-C
LG4-M1A1M-100
MAIN LEVER ASSY 1 AS2-A08-8131
1 K87-M111D-000
PUSH PIN 1 CTF-M08- 25
2 K87-M111G-100
PUSH PIN 1 CTF-M08- 325
3 K87-M111H-200
BACK STOPPER 1 FTA-A08-1114
4 KW1-M114E-000
ARM AXIS PIN 1 FTA-A08-1134
5 LG4-M1A11-020
BODY 1 FTA-A08-8101-C
6 LG4-M1A12-000
MAIN GUIDE PIN 1 FTA-A08-8102
7
LG4-M1A13-000
LOCATE PIN R 1 FTA-A08-8103-B
8 LG4-M1A14-001
LOCATE PIN F 1 FTA-A08-8104-C
9 LG4-M1A15-000
PLUG HOLDER GUIDE 1 FTA-A08-8105
10 LG4-M1A16-000
PLUG HOLDER 1 FTA-A08-8106
11 LG4-M1A17-000
STOPPER PIN 1 FTA-A08-8113
12 LG4-M1A19-001
BACK STOPPER RE. SP. 1 FTA-A12-6132-510
13 LG4-M1A18-000
BACK STOPPER AXIS 1 FTA-A08-8115
14 LG4-M1A1K-000
LEVER AXIS PIN 1 FTA-A08-8130-B
15 LG4-M1A1N-000
MAIN LEVER 1 FTA-A08-8131
16
LG4-M1A1P-101
ARM 1 FTA-A08-8235
17 LG4-M1A1R-010
SUB ARM 1 FTA-A08-8138-B
18 LG4-M1A1S-010
SUB ARM GUIDE PIN 1 FTA-A08-8139-B
19 K87-M1186-000
BARB CONNECTOR 1 BF3BU
20 LG4-M1AB2-000
PLUG 1 MA-MC05PM
21 LG4-M1ABA-010
AIR HOSE 1 U3B-157
22 K87-M23B3-000
SCREW,SET 3 3MY-5
23 K87-M111X-000
SCREW,SET 1 3MY-4-F
24 K87-M111R-000
SCREW,SET 5 3MY-5-F
25 LG4-M1AD1-000
CIRCULAR RIVET 1 2-8
26 LG4-M1AD2-000
CIRCLIP C 1 STW-7
27
28
29
30
31
32
