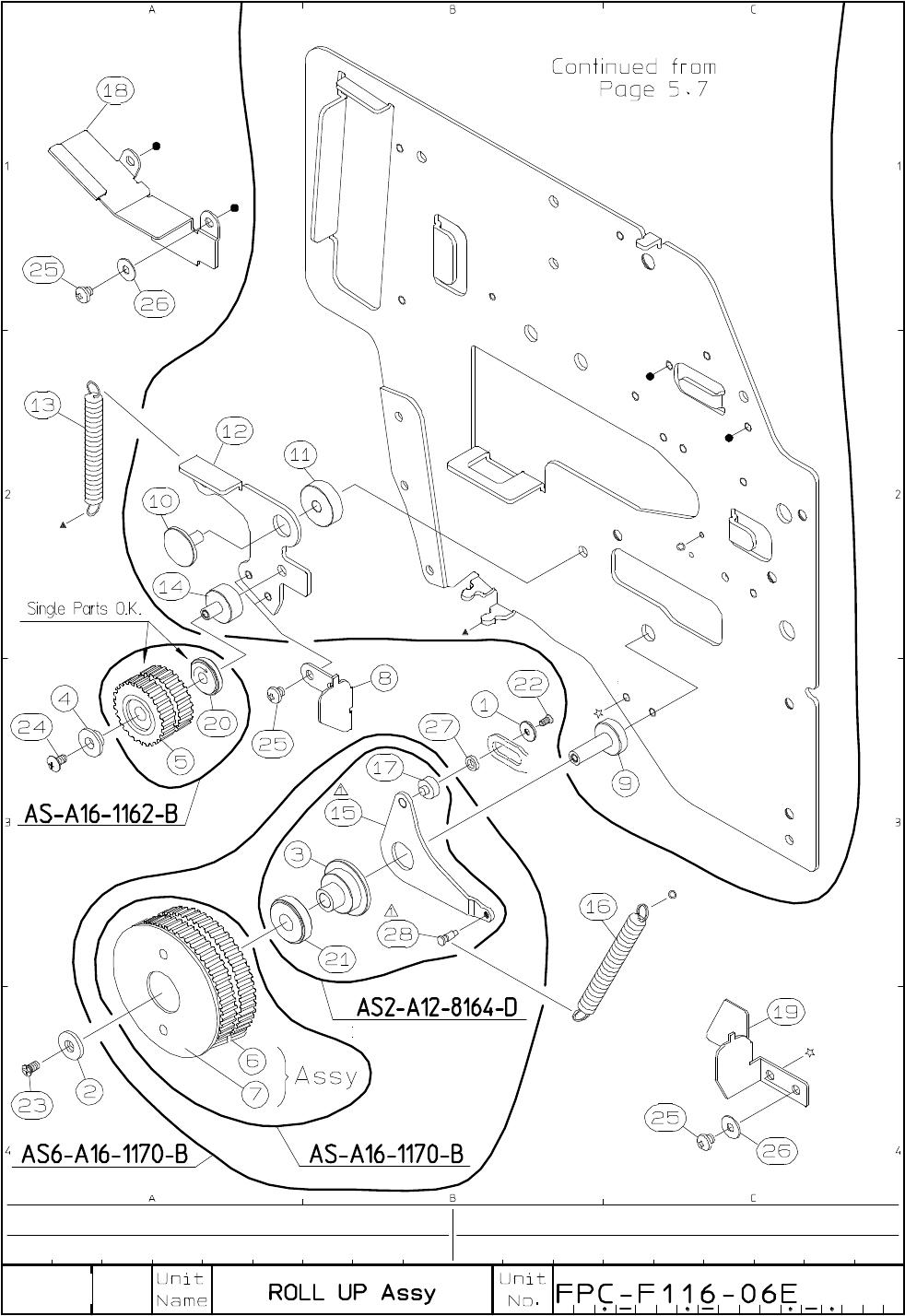

I･pulse　 F2　Series
F2-16 （E type)
P 6
No. Code No. Parts Name Q'ty Parts No.
LG4-M5A81-010 D．ROLLER ALL ASSY 1 AS5-A16-1170-B
LG4-M5A81-011 D. ROLLER ALL ASSY 1 AS6-A16-1170-B
LG4-M5A82-010 INDEKING LEVER ASSY 1 AS4-A12-8164-C
LG4-M5A82-011 INDEKING LEVER ASSY 1 AS2-A12-8164-D
KW1-M329F-000 DRIVE ROLLER ASSY 1 AS-A16-1170-B
KW1-M329L-000 IDLER ROLLER ASSY 1 AS-A16-1162-B
1 K87-M111C-000 PLANE WASHER 1 CTF-A08- 16-B
2 K87-M117B-000 PLANE WASHER 1 CTF-M08- 76-B
3 LG4-M5A85-000 LEVER METAL 1 FTA-A16-8158
4 KW1-M229R-000 COLLAR 1 FTA-A12-1161
5 KW1-M329M-000 IDLE ROLLER 1 FTA-A16-1162-B
6 KW1-M329G-000 DRIVE ROLLER 1 FTA-A16-1170-B
7 KW1-M119H-000 COVER PLATE 1 FTA-A08-1171-B
8 KW1-M32A3-001 LOWER GUIDE PLATE,L 1 FTA-A16-1179ｰB
9 LG4-M5A62-000 METAL SHAFT 1 FTA-A16-8155
10 LG4-M4A63-000 LEVER AXIS PIN 1 FTA-A12-8159
11 LG4-M4A64-000 COLLAR 1 FTA-A12-8159-1
12 LG4-M4A65-000 TENSION LEVER 1 FTA-A12-8160
13 LG4-M4A8B-000
TENSION LEVER RE.SP. 1 FTA-A12-8160-700
14 KW1-M326G-000 ROLLER AXIS 1 FTA-A16-1163
LG4-M4A83-001 INDEKING LEVER 1 FTA-A12-8164-C
LG4-M4A83-002 INDEKING LEVER 1 FTA-A12-8164-D
LG4-M4A8A-010
INDEKING LEVER RETURN SPRING
1 FTA-A12-8164-310B
LG4-M4A8A-011
INDEKING LEVER RE.SP. 1 FTA-A12-8164-310C
17 LG4-M4A84-010 ARM STUD 1 FTA-A12-8166-B
18 LG4-M5A6M-010 MIDDLE GUIDE PLATE T 1 FTA-A16-8176-1C
19 LG4-M5A6P-011 LOWER GUIDE PLATE,R 1 FTA-A16-8178-D
20 KW1-M119B-000 ONE･WAY CLUTCH 1 OWC4-13-3.1-L
21 KW1-M229E-000 ONE･WAY CLUTCH 1 OWC8-16-5.5-L
22 K87-M11BF-000 SCREW,FLAT HEAD+ 1 P2MK-4-IB
23 K87-M11BB-000 SCREW,FLAT HEAD+ 1 P2.6MK-5-IB
24 K87-M21BB-000 SCREW,TRUSS HEAD+ 1 T2.6M-5-P
25 K87-M111N-000 SCREW,PAN HEAD+ 6 3MC-3-P
26 K87-M11BE-000 THRUST WASHER 4 3V-0.5-8-P
27 LG4-M1A85-000 ROLLER 1 FTA-A08-8167
※1 28 K87-M116A-100 SPRING HOOK PIN 1 CTF-M08- 166-B
※1…F2-16-2071E～
※1 15
※1 16
※1
※1
