6-5
I･pulse F2 Series
F2-24(A type)
P 2
No. Code No. Parts Name Q'ty Parts No.
LG4-M6A20-000
SPROCKET ASSY 1 AS-A32-6107
LG4-M6A2M-000 RATCHET AXIS ASSY
1
AS-A24-8112
LG4-M6A2A-000
RACKING SUB LEV.ASSY 1 AS-A24-8116
1 K87-M532D-000 SCREW COIL SPRING 1
CTF- 42- 11-1
2 K87-M111G-100 PUSH PIN 3
CTF-M08- 325
3 LG4-M6A2F-000
THRUST WASHER
1
CTF-A32- 08
4 K87-M112M-000 FLANGE A 1
CTF-A08- 412-1
5 K87-M112G-100 RACKING POLE 1
FTA-A08-1111
6 KW1-M4523-000 SPROCKET 1
FTA-A24-1104
7 KW1-M452W-000 STUD 1 FTA-A24-1118
8 LG4-M6A21-000 METAL 1
FTA-A24-8103
9 LG4-M6A22-000 RACKING MAIN LEVER 1
FTA-A24-8105
10 LG4-M6A25-000
RACKING POLE AXIS
1
FTA-A24-8110
11 LG4-M6A26-000 SPRING HOOK PIN 1 FTA-A24-8111-2
12
LG4-M6A2N-000 RATCHET AXIS
1
FTA-A24-8112
13
LG4-M6A2B-000
RACKING SUB LEVER 1 FTA-A24-8116
14
LG4-M6A2C-000 SHUTTER DRIVE PIN
1
FTA-A24-8116-1
15
LG4-M6A2D-100 MAIN ARM
1
FTA-A24-8217
16 LG4-M6A24-000 RATCHET 1
FTA-A32-6107
17 K87-M231M-000 STRAIGHT PIN 2 A2X6.8
18 K87-M111P-000 SCREW,FLAT HEAD+ 6 P2MK-3
19 K87-M111T-000 SCREW,SET 1 3MY-3-F
20 K87-M111Y-000 SCREW,SET 2 3MY-4-F
21 K87-M23B3-000 SCREW ,SET 1 3MY-5
22 K87-M111R-000 SCREW,SET 5 3MY-5-F
23 K87-M11B9-000
CIRCLIP E
1 E.24
24
25
26
27
28
29
30
31
6-4
6-5
I･pulse F2 Series
F2-24(A type)
P 3
No. Code No. Parts Name Q'ty Parts No.

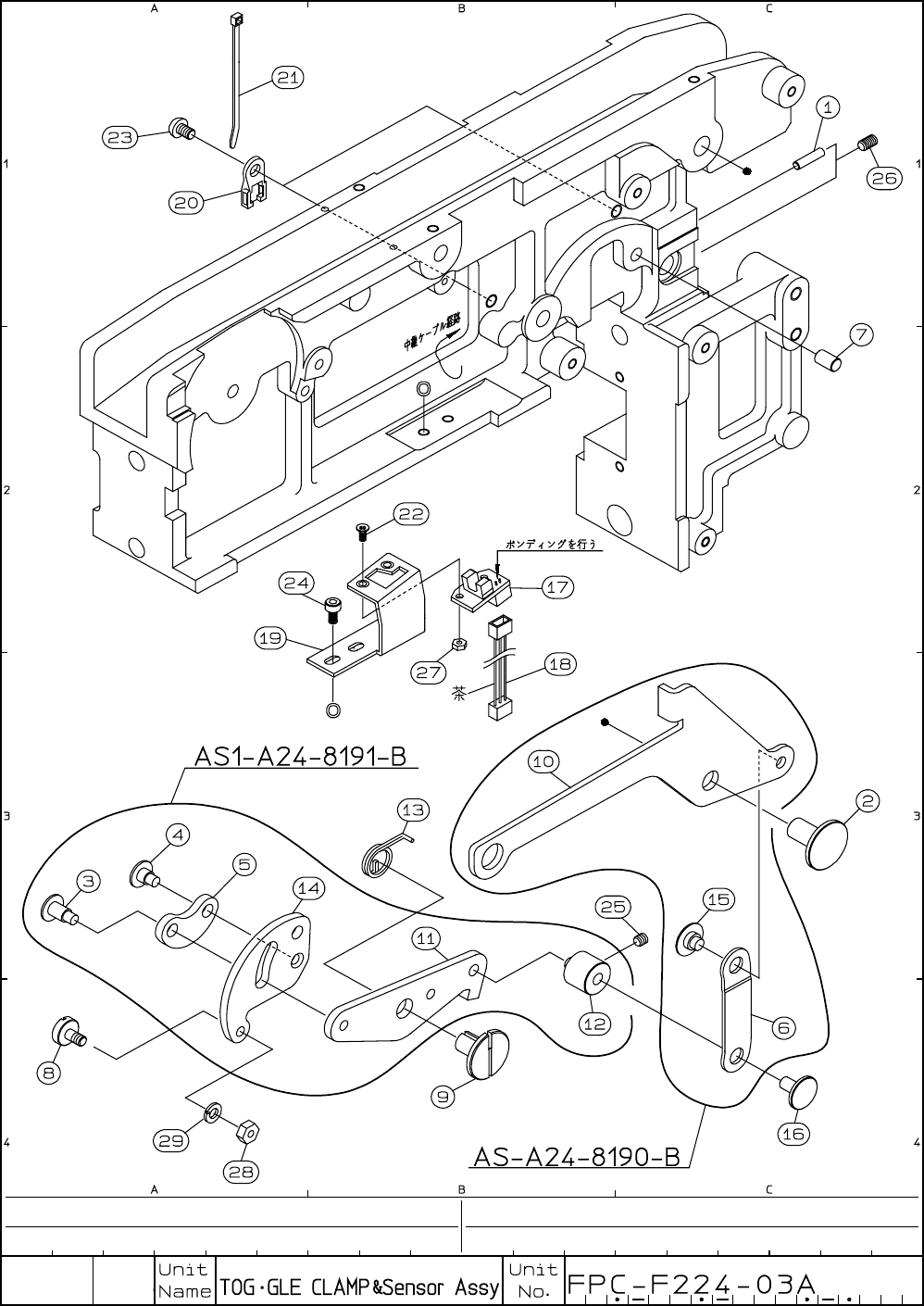

LG4-M6A30-000
HOLD LEVER ASSY 1 AS-A24-8190-B
LG4-M6A3A-001
CLAMP LEVER 1 AS1-A24-8191-B
1 K87-M111G-100 PUSH PIN 1
CTF-M08- 325
2
LG4-M1A1K-000
LEVER AXIS PIN 1
FTA-A08-8130-B
3
LG4-M1A3A-000 HINGE PIN 1
1
FTA-A08-8191-1
4
LG4-M1A3B-000 HINGE PIN 2
1
FTA-A08-8192-1
5
LG4-M1A36-000 ARM
1
FTA-A08-8193
6
LG4-M1A33-000 LINK PLATE
1
FTA-A08-8194
7
LG4-M1A3L-000 CLANK ARM AXIS PIN
1
FTA-A08-8195
8
LG4-M1A37-000 ADJUST CLAMP PIN
1
FTA-A08-8196
9
LG4-M1A3K-001 CLAMP LEVER AXIS PIN
1 FTA-A08-8197-B
10
LG4-M6A31-000 HOLD LEVER
1 FTA-A24-8190-B
11
LG4-M6A3B-001 CLAMP LEVER
1 FTA-A24-8191-B
12
LG4-M6A3D-000
STUD 1 FTA-A24-8191-1
13
LG4-M6A3M-000
SCREW COIL SPRING 1
FTA-A24-8191-SCSp
14
LG4-M6A3C-000 CLANK ARM
1 FTA-A24-8192
15
LG4-M6A32-000 LINK PIN T
1
FTA-A24-8198
16
LG4-M6A39-000 LINK PIN U
1
FTA-A24-8199
17
LG4-M6AH2-000
BOARD ITGA 1
18 LG4-M6AA6-100
SENSOR HARNESS ASSY 1
FTA-A24-8266-1
19
LG4-M6A1B-100
SENSOR PLATE 1
FTA-A24-8267
20
LG4-M6ABB-100
SENSOR HARNESS GUIDE 2
SKM-2
21
LG4-M6ABC-100
INSULOK TIES 2 ALT-102S-B
22 LG4-M1ADG-100 SCREW,PAN HEAD+
2
P2MC-4-P
23
LG4-M6ADH-100 SCREW,PAN HEAD+
2
T4M-6-P
24 LG4-M6ADG-000
BOLT,HEX SOCKET HEAD
2
3MX-5-P
25 K87-M111T-000 SCREW,SET 1 3MY-3-F
26
K87-M111R-000 SCREW,SET 2 3MY-5-F
27 LG4-M1AD4-100 SCREW NUT 2
2MH-P
28 K87-M21BN-000
SCREW NUT
1
3MH-P
29 K87-M21BM-000 SPRING LOCK WASHER 1
3MU-P
30
31
32
