F2FeederPartsList - 第458页
6-7
I･pulse F2 Series
F2-24(A type)
P 3
No. Code No. Parts Name Q'ty Parts No.
LG4-M6A30-000
HOLD LEVER ASSY 1 AS-A24-8190-B
LG4-M6A3A-001
CLAMP LEVER 1 AS1-A24-8191-B
1 K87-M111G-100 PUSH PIN 1
CTF-M08- 325
2
LG4-M1A1K-000
LEVER AXIS PIN 1
FTA-A08-8130-B
3
LG4-M1A3A-000 HINGE PIN 1
1
FTA-A08-8191-1
4
LG4-M1A3B-000 HINGE PIN 2
1
FTA-A08-8192-1
5
LG4-M1A36-000 ARM
1
FTA-A08-8193
6
LG4-M1A33-000 LINK PLATE
1
FTA-A08-8194
7
LG4-M1A3L-000 CLANK ARM AXIS PIN
1
FTA-A08-8195
8
LG4-M1A37-000 ADJUST CLAMP PIN
1
FTA-A08-8196
9
LG4-M1A3K-001 CLAMP LEVER AXIS PIN
1 FTA-A08-8197-B
10
LG4-M6A31-000 HOLD LEVER
1 FTA-A24-8190-B
11
LG4-M6A3B-001 CLAMP LEVER
1 FTA-A24-8191-B
12
LG4-M6A3D-000
STUD 1 FTA-A24-8191-1
13
LG4-M6A3M-000
SCREW COIL SPRING 1
FTA-A24-8191-SCSp
14
LG4-M6A3C-000 CLANK ARM
1 FTA-A24-8192
15
LG4-M6A32-000 LINK PIN T
1
FTA-A24-8198
16
LG4-M6A39-000 LINK PIN U
1
FTA-A24-8199
17
LG4-M6AH2-000
BOARD ITGA 1
18 LG4-M6AA6-100
SENSOR HARNESS ASSY 1
FTA-A24-8266-1
19
LG4-M6A1B-100
SENSOR PLATE 1
FTA-A24-8267
20
LG4-M6ABB-100
SENSOR HARNESS GUIDE 2
SKM-2
21
LG4-M6ABC-100
INSULOK TIES 2 ALT-102S-B
22 LG4-M1ADG-100 SCREW,PAN HEAD+
2
P2MC-4-P
23
LG4-M6ADH-100 SCREW,PAN HEAD+
2
T4M-6-P
24 LG4-M6ADG-000
BOLT,HEX SOCKET HEAD
2
3MX-5-P
25 K87-M111T-000 SCREW,SET 1 3MY-3-F
26
K87-M111R-000 SCREW,SET 2 3MY-5-F
27 LG4-M1AD4-100 SCREW NUT 2
2MH-P
28 K87-M21BN-000
SCREW NUT
1
3MH-P
29 K87-M21BM-000 SPRING LOCK WASHER 1
3MU-P
30
31
32
6-6
6-7
I･pulse F2 Series
F2-24(A type)
P 4

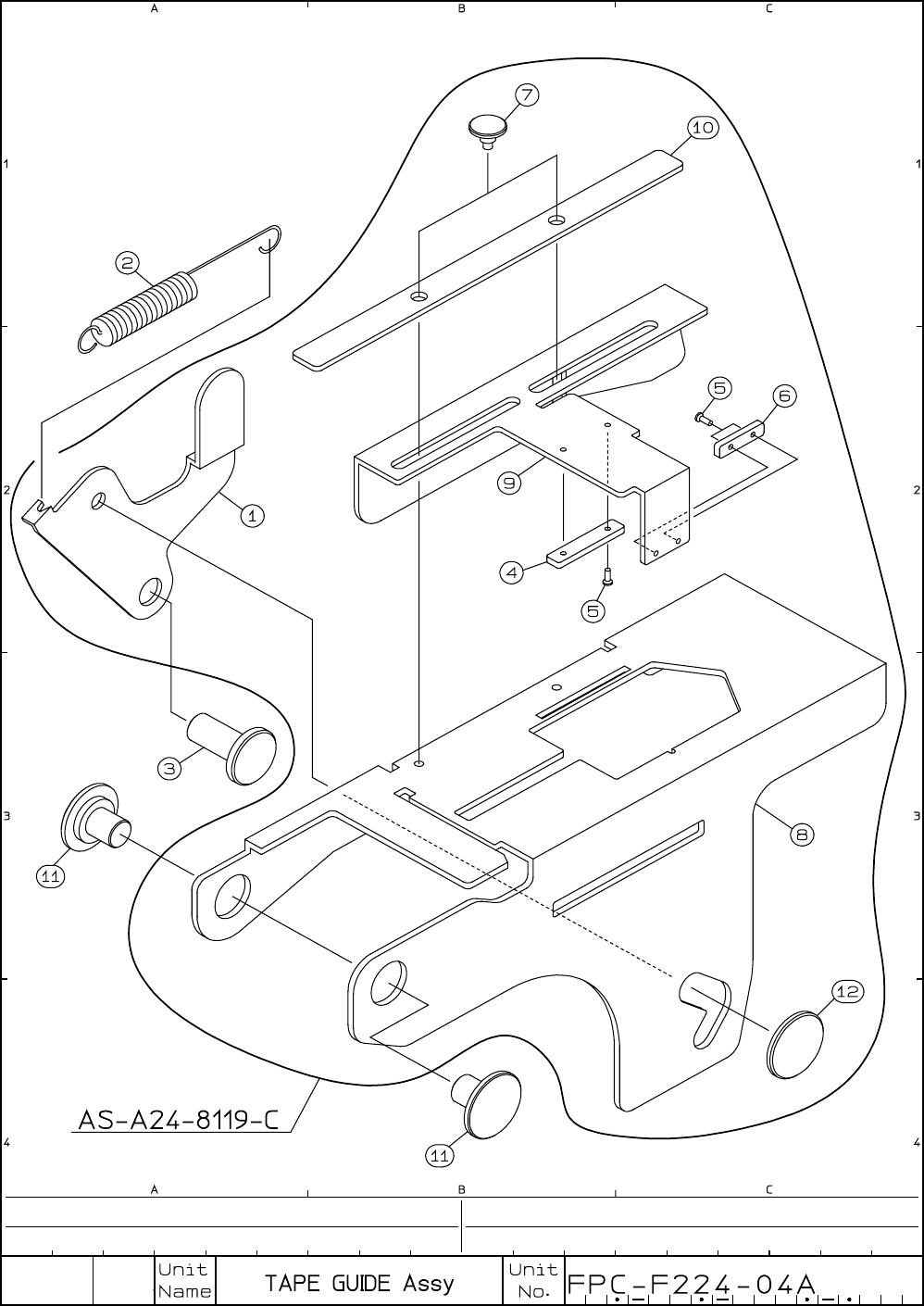

No. Code No. Parts Name Q'ty Parts No.
LG4-M6A40-001
TAPE GUIDE ASSY 1 AS-A24-8119-C
1
LG4-M1A46-000 LOCK LEVER
1
FTA-A08-8127-B
2
LG4-M1A48-001 T. G. PUSH SPRING
1
FTA-A08-8127-50
3
LG4-M1A4K-000 T.G.A. GUIDE PIN
1
FTA-A08-8129
4 KW1-M4547-000
SHUTTER PIECE
1
FTA-A24-1120-1
5 KW1-M4548-000
RIVET
4
FTA-A24-1120-2
6 KW1-M4549-000
SHUTTER GUIDE
1
FTA-A24-1120-3
7 KW1-M4544-000
SHUTTER GUIDE PIN
2
FTA-A24-1122-B
8
LG4-M6A41-001
TAPE GUIDE PLATE 1
FTA-A24-8119-C
9
LG4-M6A42-001
SHUTTER PLATE 1
FTA-A24-8120-B
10
LG4-M6A49-001 COVER PLATE
1
FTA-A24-8123-B
11
LG4-M6A4L-000 TAPE GUIDE AXIS PIN
2
FTA-A24-8124
12
LG4-M6A47-000 T.G. GUIDE PIN
1
FTA-A24-8125
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
6-8
