I･pul se F2 Series F2-24 (D type) P 4 No. Code No. Parts Name Q'ty Parts No. LG4-M6A40-010 TAPE GUIDE PLATE UNIT 1 AS-A24-8119-D LG4-M6A4A-000 TAPE GUIDE PLATE ASSY 1 AS1-A24-8119-D LG4-M6A4B-000 SHUTTER PLATE ASSY …
6D-7
I･pulse F2 Series
F2-24 (D type)
P 4
No. Code No. Parts Name Q'ty Parts No.
LG4-M6A40-010 TAPE GUIDE PLATE UNIT 1 AS-A24-8119-D
LG4-M6A4A-000 TAPE GUIDE PLATE ASSY 1 AS1-A24-8119-D
LG4-M6A4B-000 SHUTTER PLATE ASSY 1 AS-A24-8120-C
1 LG4-M1A46-000 LOCK LEVER 1 FTA-A08-8127-B
2 LG4-M6A48-000
TAPE GUIDE PUSH SPRING 1 FTA-A24-8127-73
3 LG4-M1A4K-000 T.G.A. GUIDE PIN 1 FTA-A08-8129
4 KW1-M4547-000 SHUTTER PIECE 1 FTA-A24-1120-1
5 KW1-M4548-000 RIVET 2 FTA-A24-1120-2
6 KW1-M4544-010 SHUTTER GUIDE PIN 2 FTA-A24-1121-B
7 LG4-M6A41-010 TAPE GUIDE PLATE 1 FTA-A24-8119-D
8 LG4-M6A4F-000 SIDE COVER 1 FTA-A24-8125-1
9 LG4-M6A42-010 SHUTTER PLATE 1 FTA-A24-8120-C
10 LG4-M6A49-001 COVER PLATE 1 FTA-A24-8123-B
11 LG4-M6A4L-000 TAPE GUIDE AXIS PIN 2 FTA-A24-8124
12 LG4-M6A47-000 T.G.GUIDE PIN 1 FTA-A24-8125
13 K87-M111P-000 SCREW,FLAT HEAD+ 2 P2MK-3
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

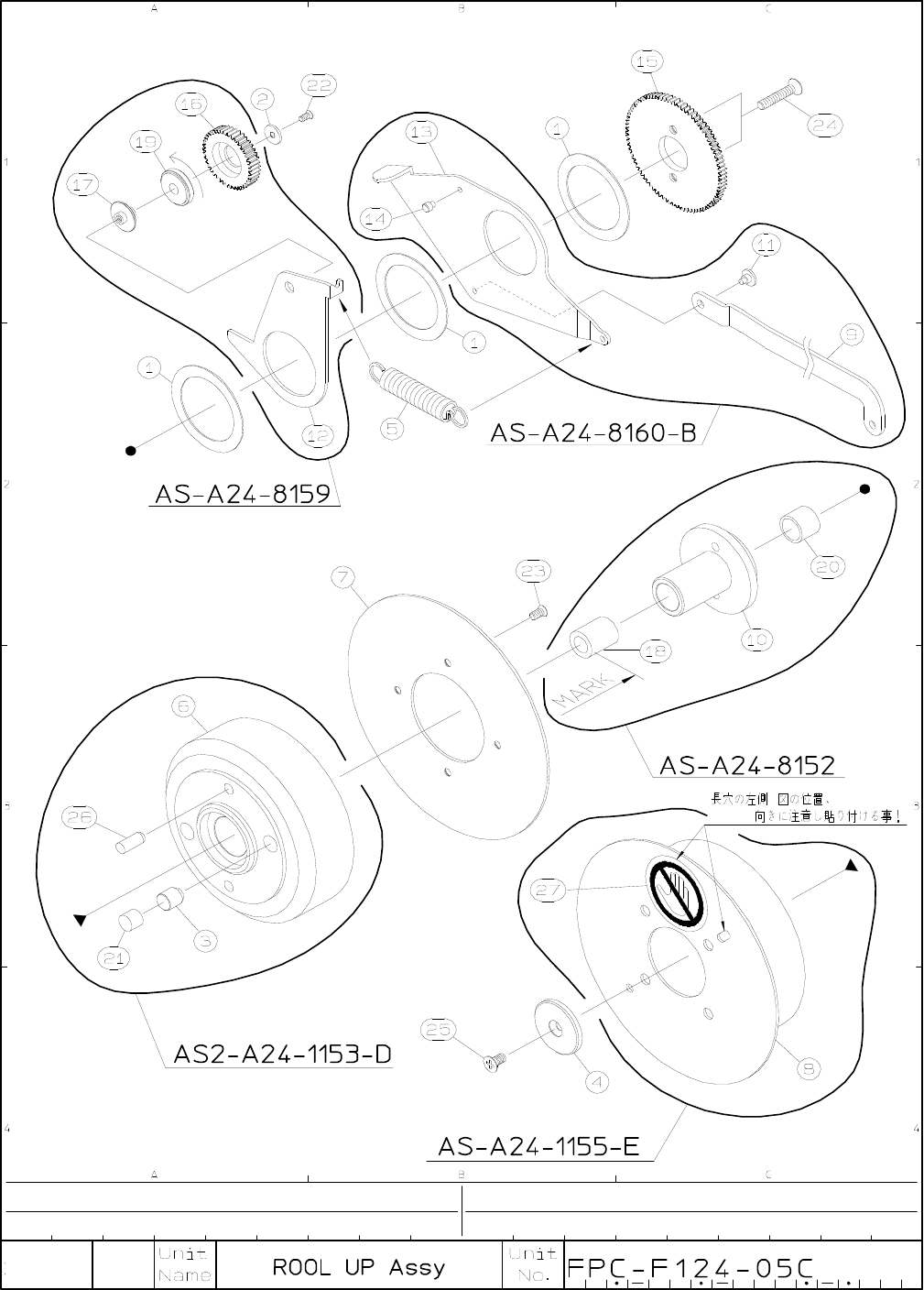

6D-8
6D-9
