F2FeederPartsList - 第516页
6D- 11
I･pulse F2 Series
F2-24 (D type)
P 5
No. Code No. Parts Name Q'ty Parts No.
LG4-M6A80-000 INDENTATION LEV.ASSY 1 AS-A24-8159
LG4-M6A8A-001 SUB LEVER ASSY 1 AS-A24-8160-B
LG4-M6A84-000 REEL SHAFT ASSY 1 AS-A24-8152
LG4-M6A8N-000 METAL ASSY 1 AS2-A24-1153-D
LG4-M6A8F-000 REEL PLATE ASSY 1 AS-A24-1155-E
1 K87-M119J-000 THRUST WASHER 3 CTF- 42- 60-L
2 K87-M111C-000 PLANE WASHER 1 CTF-A08- 16-B
3 KW1-M459P-000 METAL PIN 2 CTF-A12- 653-1
4 K87-M459Y-000 PLANE WASHER 1 CTF-A12- 656
5 LG4-M6A89-000 SPRING 1 FTA-A24-8159-68
6 KW1-M459T-000 METAL 1 FTA-A24-1153-D
7 KW1-M459V-000 REEL FLANGE 1 FTA-A24-1154-D
8 KW1-M459U-000 REEL PLATE 1 FTA-A24-1155-E
9 LG4-M6A8E-000 SUB ARM 1 FTA-A24-8146-B
10 LG4-M6A85-000 REEL SHAFT 1 FTA-A24-8152
11 LG4-M6A8D-000 ARM STUD 1 FTA-A24-8158
12 LG4-M6A81-000 INDENTATION LEVER 1 FTA-A24-8159
13 LG4-M6A8B-001 SUB LEVER 1 FTA-A24-8160-B
14 LG4-M6A2C-000 SHUTTER DRIVE PIN 1 FTA-A24-8116-1
15 LG4-M6A8G-000 INDEX GEAR 1 FTA-A24-8161
16 LG4-M6A83-000 DRIVE GEAR 1 FTA-A24-8162
17 LG4-M6A82-000 GEAR AXIS 1 FTA-A24-8163
18 K87-M219E-100 ONE-WAY CRUTCH 1 FC-6
19 KW1-M119B-000 ONE-WAY CRUTCH 1 OWC4-13-3.1-L
20 K87-M5596-000 OILLESS BEARING 1 80B-0808
21 LG4-M6A8R-000 MAGNET 2 φ6-5
22 K87-M11BF-000 SCREW,FLAT HEAD 1 P2MK-4-IB
23 K87-M11BB-000 SCREW,FLAT HEAD 4 P2.6MK-5-IB
24 KW1-M45BF-000 SCREW,FLAT HEAD+ 2 3MK-16-P
25 K87-M111S-000 SCREW,FLAT HEAD+ 1 3MK-6-P
26 KW1-M459S-000 STRAIGHT PIN 2 A4×9.8
27 LG4-M6A8H-000 WARNING LABEL 1 FTA-A24-8151-WL
28
6D-10
6D-11
I･pulse F2 Series
F2-24 (D type)
P 6

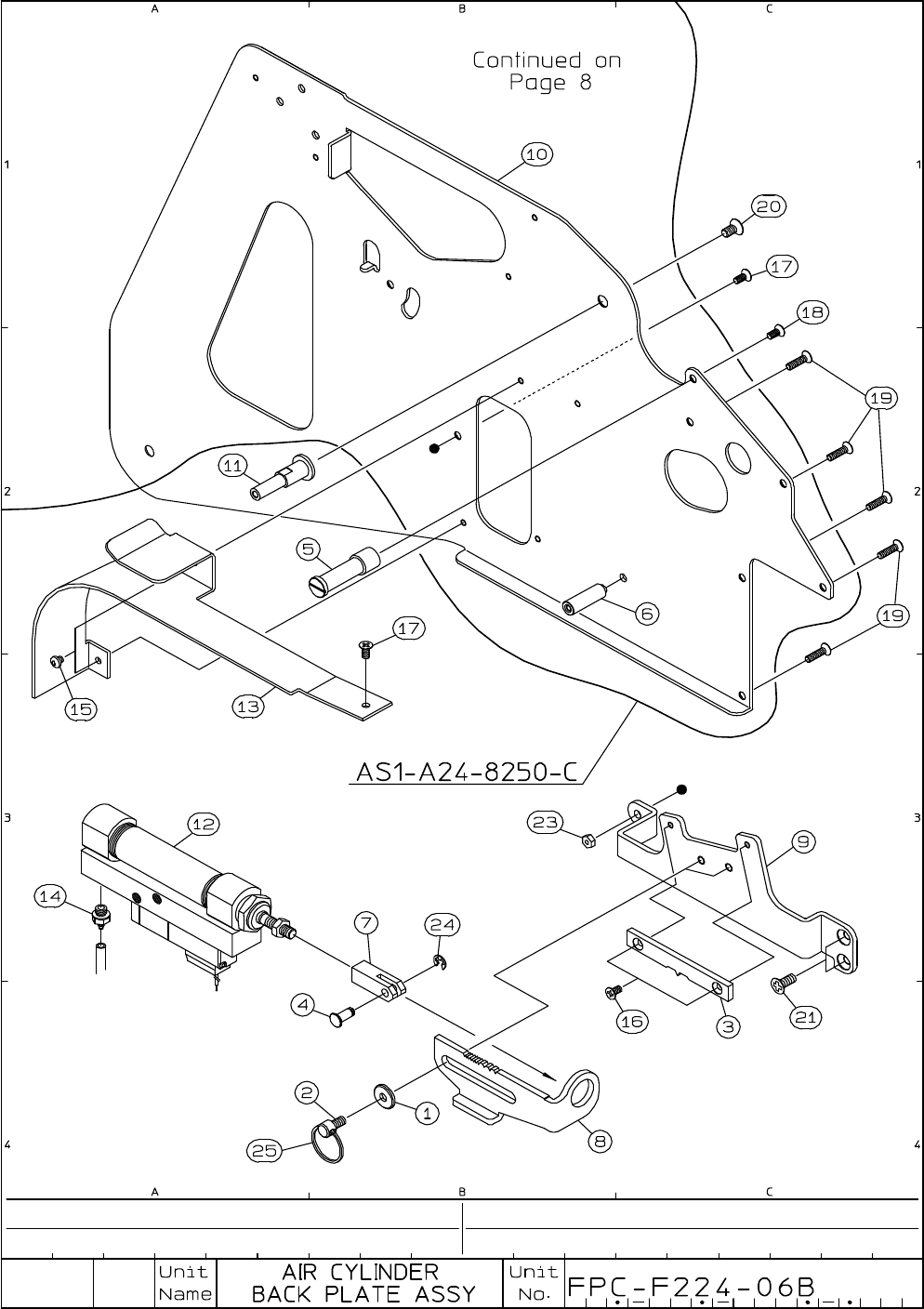

No. Code No. Parts Name Q'ty Parts No.
LG4-M6A60-111 BACK PLATE ASSY 1 AS1-A24-8250-C
1 K87-M2387-000 PLANE WASHER 2 CTF- 54- 66-1
2 KW1-M458E-000 RING SCREW 2 CTF-A12- 566-1
3 K87-M538C-000 POSITION PLATE 1 CTF-A32- 49-2
4 LG4-M1A72-000 CONNECT PIN 1 FTA-A08-8146
5 LG4-M6A63-010 ROLLER SHAFT 1 FTA-A24-8132-C
6 LG4-M6A64-000 SHAFT 1 FTA-A24-8140
7 LG4-M6A71-000 ROD CONNECTER 1 FTA-A24-8142
8 LG4-M6A73-001 ADJUST PLATE 1 FTA-A24-8148-C
9 LG4-M6A74-000 CYLINDER BRACKET 1 FTA-A24-8149-B
10 LG4-M6A61-111 BACK PLATE 1 FTA-A24-8250-C
11 LG4-M6A62-010 REEL SHAFT 1 FTA-A24-8151-B
12 LG4-M6AB1-000 VAL PACK CYLINDER 1 FTA-A24-8157
13 LG4-M6A6A-010 GUIDE PLATE 1 FTA-A24-8177-C
14 K87-M56C1-000 BARB CONNECTOR 1 BF4BU
15 K87-M111N-000 SCREW,PAN HEAD+ 2 3MC-3-P
16 K87-M111S-000 SCREW,FLAT HEAD+ 2 3MK-6-P
17 LG4-M4ADE-000 SCREW,FLAT HEAD+ 2 3MK-7-P
18 K87-M55BN-000 SCREW,FLAT HEAD+ 1 3MK-8-P
19 K87-M11B4-100 SCREW,FLAT HEAD+ 5 3MK-12-P
20 LG4-M6ADJ-000
SCREW,FLAT HEAD LEFT 1 4MK-8-P-L
21 LG4-M6ADE-000 SCREW,FLAT HEAD+ 2 4MK-10-P
22 KW1-M111T-000 SCREW,THIN HEAD 1 TH-TP-HS-M3-5
23 K87-M21BN-000 SCREW NUT 1 3MH-P
24 K87-M11D7-000 CIRCLIP E 1 E.32
25 KW1-M458F-000 DOUBLE RING 2 コクヨ リン-17
26
27
28
29
30
