6D- 15
I･pulse F2 Series
F2-24 (D type)
P 7
No. Code No. Parts Name Q'ty Parts No.
1 LG4-M6A1A-000 MICRO SWITCH BRACKET 1 FTA-A24-8135-B
2 LG4-M6A6B-000 C.B.COVER 1 FTA-A24-8137-B
3 LG4-M6A6C-000 COVER 1 FTA-A24-8138-B
4 LG4-M6A6D-100 LED,SWITCH COVER 1 FTA-A24-8239
5 LG4-M6A6E-100 COLLER 3 FTA-A24-8239-1
6 LG4-M6AH1-005 BOARD ITG (REV.A) 1
7 LG4-M6AH3-003 BOARD ITGB (REV.A) 1
8 LG4-M6AA4-100 VALVE HARNESS ASSY 1 FTA-A24-8255
9 LG4-M6AA3-000 MICRO SWITCH ASSY 1 FTA-A24-8156
10 K87-M111N-000 SCREW,PAN HEAD+ 6 3MC-3-P
※1 11 K87-M111W-000 SCREW,PAN HEAD+ 2 3MC-5-P
12 K87-M111W-000 SCREW,PAN HEAD+ 4 3MC-5-P
13 LG4-M1ADC-000 SCREW,PAN HEAD+ 3 3MC-7-P
14 LG4-M6ADG-000 BOLT,HEX SOCKET HEAD 2 3MX-5-P
15 K87-M11BE-000 THRUST WASHER 6 3V-0.5-8-P
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
※1…F2-24-891D～

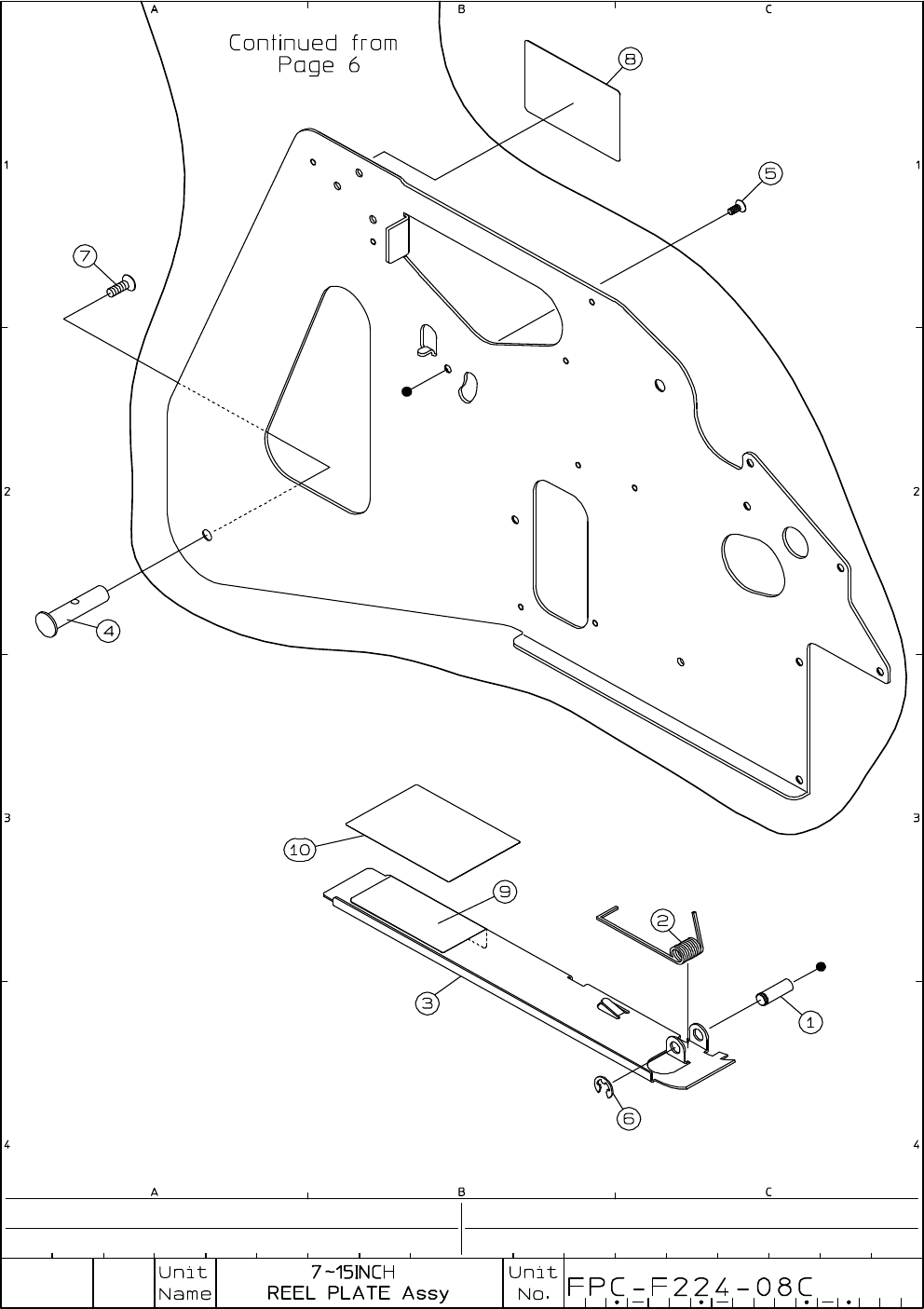

6D-15
I･pulse F2 Series
F2-24 (D type)
P 8
No. Code No. Parts Name Q'ty Parts No.
1 LG4-M4A92-010 REEL TENTION AXIS 1 FTA-A12-8182-B
2 LG4-M4A9B-000 COIL SPRING 1 FTA-A12-8183-B
3 LG4-M6A9A-100 REEL GUIDE ARM 1 FTA-A24-8269
4 LG4-M6A65-010 REEL AXIS 1 FTA-A24-8172-B
5 K87-M55BN-000 SCREW,FLAT HEAD+ 1 3MK-8-P
6 LG4-M4ADF-000 CIRCLIP E 1 E.50
7 LG4-M4ADH-000 SCREW,FLAT HEAD+ 1 4MK-12-P
8 LG4-M6AC1-100 SERIAL NO. STICKER 1 FTA-A24-8250-SNS
9 LG4-M6AC3-100 SERIAL NO. STICKER 1
FTA-A24-8250-SNS1
10 LG4-M1ACX-100 PROTECTION SEAL 1 FTA-A08-8253-BLPS
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
6D-16
