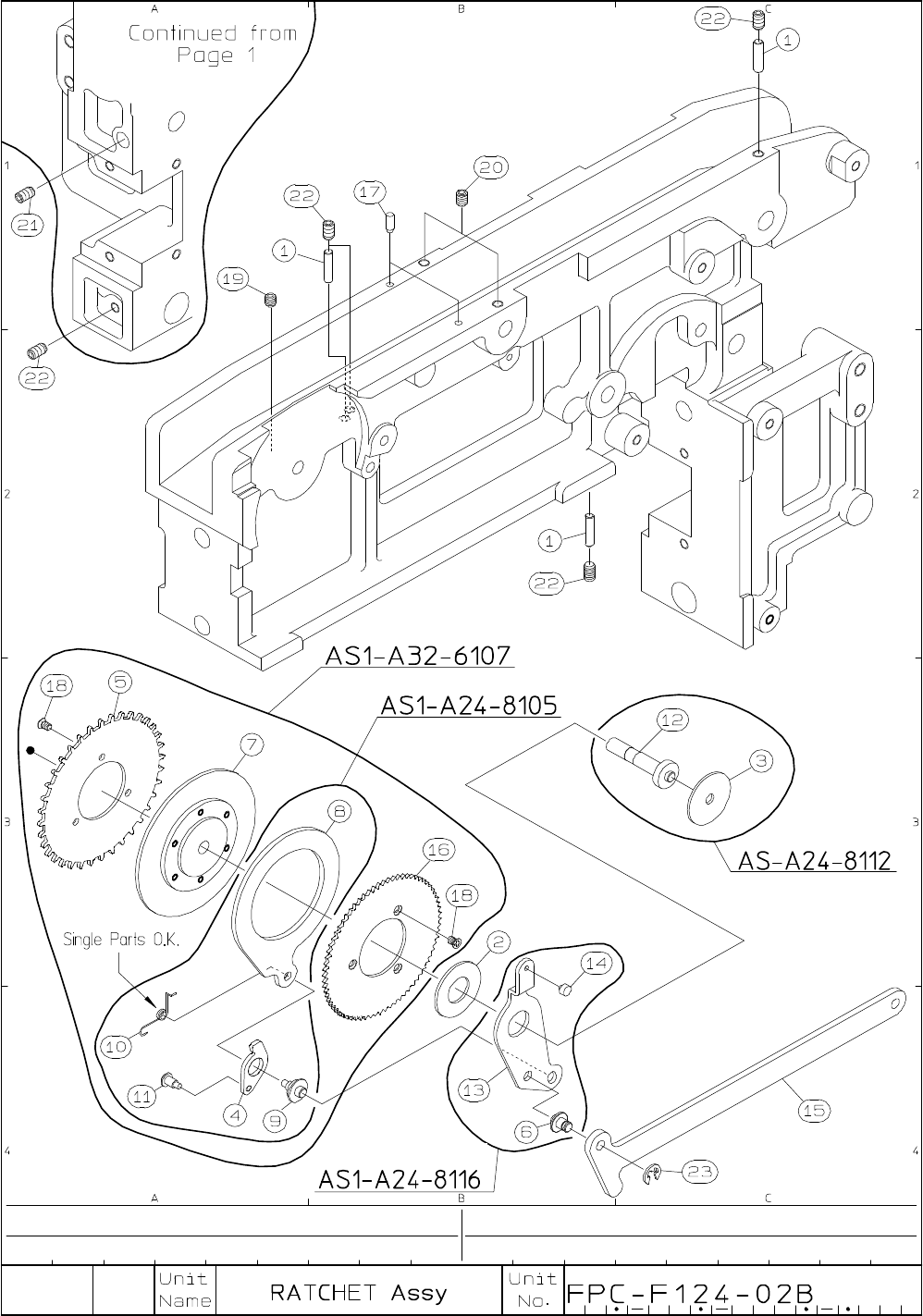

I･pulse F2 Series F2-24 (D type) P 2 No. Code No. Parts Name Q'ty Parts No. LG4-M6A20-001 SPROCKET ASSY 1 AS1-A32-6107 LG4-M6A27-001 RACKING M.LEVER ASSY 1 AS1-A24-8105 LG4-M6A2M-000 RATCHET AXIS ASSY 1 AS-A24-8112 …

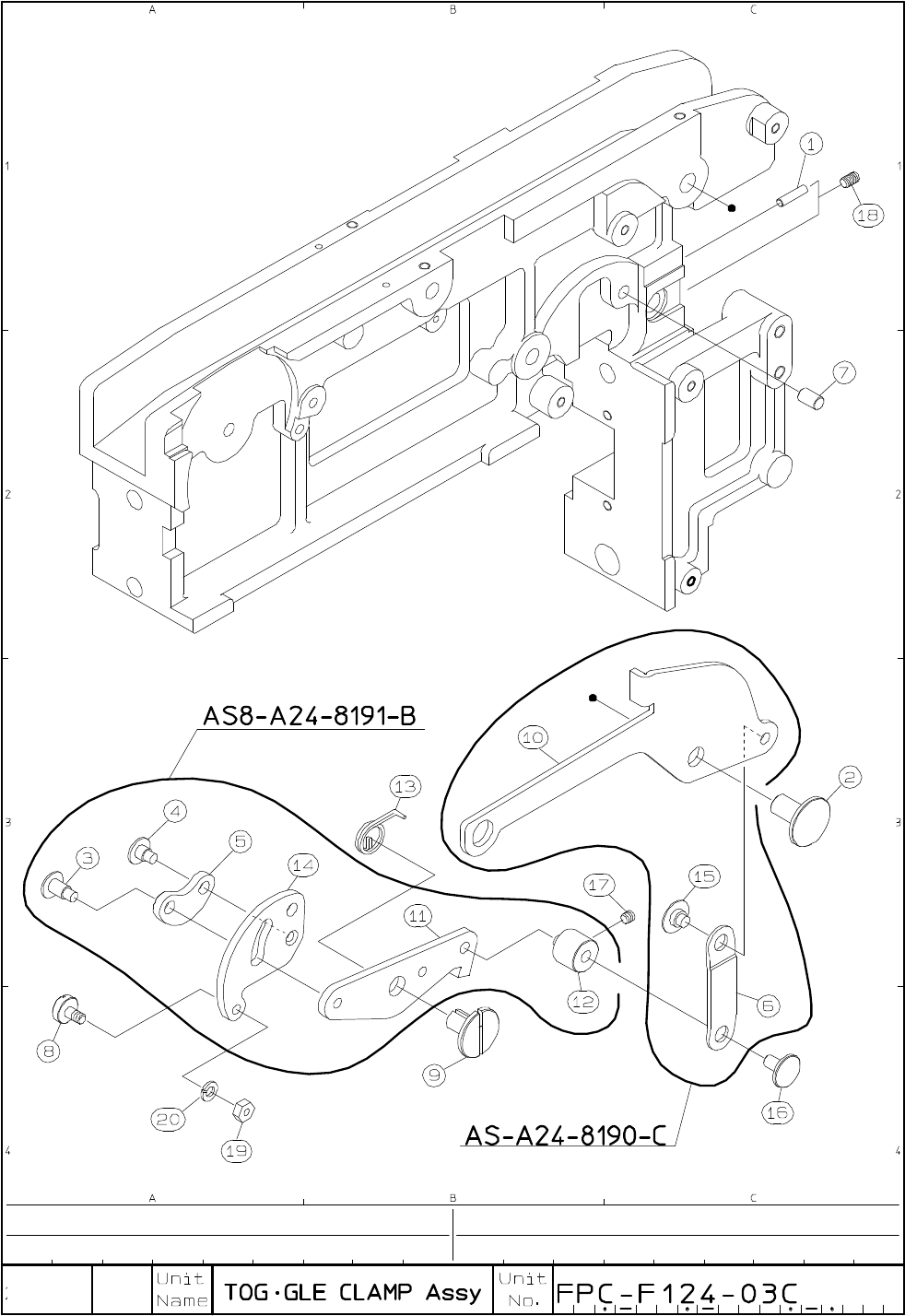

I･pulse　 F2　Series

F2-24 (D type)

P 2

No. Code No. Parts Name Q'ty Parts No.

LG4-M6A20-001 SPROCKET ASSY 1 AS1-A32-6107

LG4-M6A27-001 RACKING M.LEVER ASSY 1 AS1-A24-8105

LG4-M6A2M-000 RATCHET AXIS ASSY 1 AS-A24-8112

LG4-M6A2A-001 RACKING SUB LEV. ASSY 1 AS1-A24-8116

1 K87-M111G-100 PUSH PIN 3 CTF-M08- 325

2 LG4-M6A2F-000 THRUST WASHER 1 CTF-A32- 08

3 K87-M112M-000 FLANGE A 1 CTF-A08- 412-1

4 K87-M112G-100 RACKING POLE 1 FTA-A08-1111

5 KW1-M4523-000 SPROCKET 1 FTA-A24-1104

6 KW1-M452W-001 STUD 1 FTA-A24-1118-B

7 LG4-M6A21-000 METAL 1 FTA-A24-8103

8 LG4-M6A22-000 RACKING MAIN LEVER 1 FTA-A24-8105

9 LG4-M6A25-000 RACKING POLE AXIS 1 FTA-A24-8110

10 LG4-M6A2G-000 SCREW COIL SPRING 1 FTA-A24-8111-1

11 LG4-M6A26-000 SPRING HOOK PIN 1 FTA-A24-8111-2

12 LG4-M6A2N-000 RATCHET AXIS 1 FTA-A24-8112

13 LG4-M6A2B-000 RACKING SUB LEVER 1 FTA-A24-8116

14 LG4-M6A2C-000 SHUTTER DRIVE PIN 1 FTA-A24-8116-1

15 LG4-M6A2D-000 MAIN ARM 1 FTA-A24-8117

16 LG4-M6A24-000 RATCHET 1 FTA-A32-6107

17 K87-M231M-000 STRAIGHT PIN 2 A2×6.8

18 K87-M111P-000 SCREW,FLAT HEAD+ 6 P2MK-3

19 K87-M111T-000 SCREW,SET 1 3MY-3-F

20 K87-M111Y-000 SCREW,SET 2 3MY-4-F

21 K87-M23B3-000 SCREW,SET 1 3MY-5

22 K87-M111R-000 SCREW,SET 5 3MY-5-F

23 K87-M11B9-000 CIRCLIP E 1 E.24
