I･pulse F2 Series
F2-24 (D type)
P 3
No. Code No. Parts Name Q'ty Parts No.
LG4-M6A30-010 HOLD LEVER ASSY 1 AS-A24-8190-C
LG4-M6A3A-003 CLAMP LEVER ASSY 1 AS8-A24-8191-B
1 K87-M111G-100 PUSH PIN 1 CTF-M08- 325
2 LG4-M1A1K-000 LEVER AXIS PIN 1 FTA-A08-8130-B
3 LG4-M1A3A-001 HINGE PIN 1 1 FTA-A08-8191-1C
4 LG4-M1A3B-000 HINGE PIN 2 1 FTA-A08-8192-1
5 LG4-M1A36-000 ARM 1 FTA-A08-8193
6 LG4-M1A33-000 LINK PLATE 1 FTA-A08-8194
7 LG4-M1A3L-000 CLANK ARM AXIS PIN 1 FTA-A08-8195
8 LG4-M1A37-000 ADJUST CLAMP PIN 1 FTA-A08-8196
9 LG4-M1A3K-001 CLAMP LEVER AXIS PIN 1 FTA-A08-8197-B
10 LG4-M6A31-010 HOLD LEVER 1 FTA-A24-8190-C
11 LG4-M6A3B-001 CLAMP LEVER 1 FTA-A24-8191-B
12 LG4-M6A3D-000 STUD 1 FTA-A24-8191-1
13 LG4-M6A3M-000 SCREW COIL SPRING 1
FTA-A24-8191-SCSp
14 LG4-M6A3C-001 CLANK ARM 1 FTA-A24-8192-B
15 LG4-M6A32-000 LINK PIN T 1 FTA-A24-8198
16 LG4-M6A39-000 LINK PIN U 1 FTA-A24-8199
17 K87-M111T-000 SCREW,SET 1 3MY-3-F
18 K87-M111R-000 SCREW,SET 2 3MY-5-F
19 K87-M21BN-000 SCREW NUT 1 3MH-P
20 K87-M21BM-000 SPRING LOCK WASHER 1 3MU-P
21
22
23
24
25
26
27
28

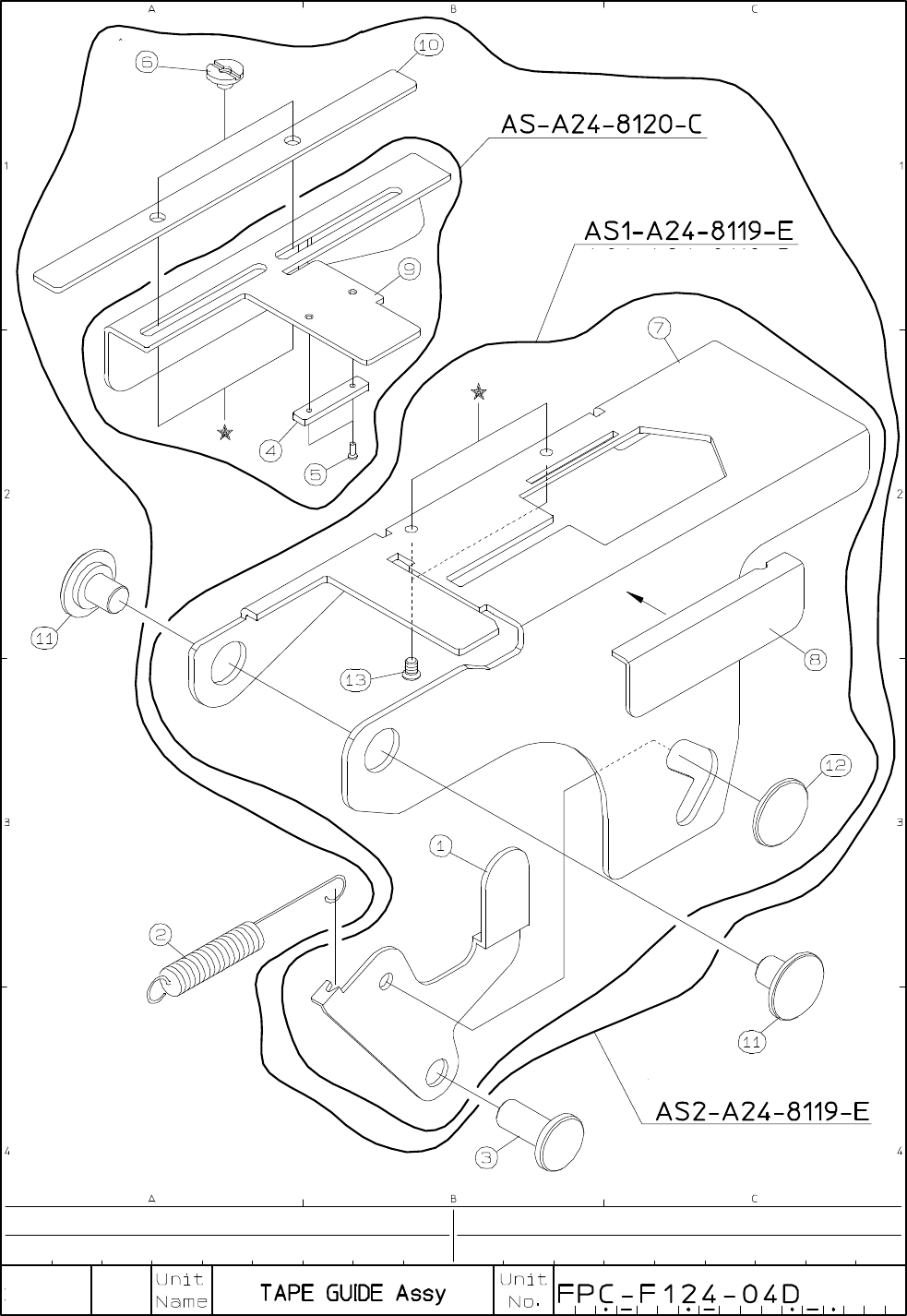

I･pulse F2 Series
F2-24 (D type)
P 4
No. Code No. Parts Name Q'ty Parts No.
LG4-M6A40-012 TAPE GUIDE UNIT 1 AS2-A24-8119-E
LG4-M6A4A-001 TAPE GUIDE ASSY 1 AS1-A24-8119-E
LG4-M6A4B-000 SHUTTER PLATE ASSY 1 AS-A24-8120-C
1 LG4-M1A46-000 LOCK LEVER 1 FTA-A08-8127-B
2 LG4-M6A48-000 T.G. PUSH SPRING 1 FTA-A24-8127-73
3 LG4-M1A4K-000 T.G.A. GUIDE PIN 1 FTA-A08-8129
4 KW1-M4547-000 SHUTTER PIECE 1 FTA-A24-1120-1
5 KW1-M4548-000 RIVET 2 FTA-A24-1120-2
6 LG4-M6A44-000 SHUTTER GUIDE PIN 2 FTA-A24-8121-B
7 LG4-M6A41-011 TAPE GUIDE PLATE 1 FTA-A24-8119-E
8 LG4-M6A4F-000 SIDE COVER 1 FTA-A24-8125-1
9 LG4-M6A42-010 SHUTTER PLATE 1 FTA-A24-8120-C
10 LG4-M6A49-001 COVER PLATE 1 FTA-A24-8123-B
11 LG4-M6A4L-000 TAPE GUIDE AXIS PIN 2 FTA-A24-8124
12 LG4-M6A47-000 T.G. GUIDE PIN 1 FTA-A24-8125
13 K87-M111P-000 SCREW,FLAT HEAD+ 2 P2MK-3
14
15
16
17
18
19
20
21
22
23
24
