I･pulse F2 Series F2-82-1005 (B type) P 4 No. Code No. Parts Name Q'ty Parts No. LG4-M2A40-012 T.G. PLATE ASSY 1 AS -A08-8119-05 C 1 LG4-M2A41-011 TAPE GUIDE PLATE 1 FTA-A08-8119-05 C 2 LG4-M2A42-010 SHUTTER PLATE 1…
2B-7
I･pulse F2 Series
F2-82-1005 (B type)
P 4
No. Code No. Parts Name Q'ty Parts No.

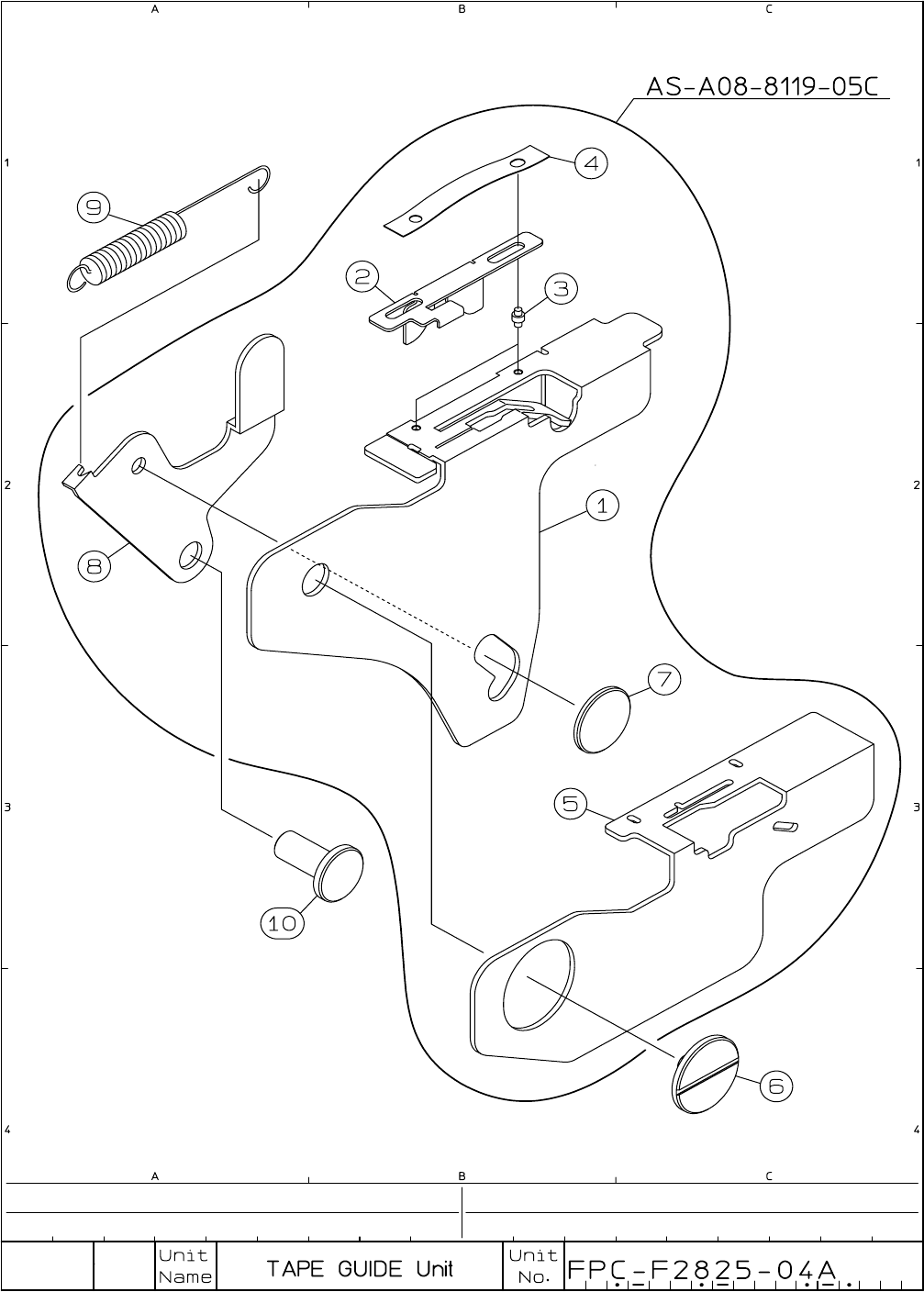

LG4-M2A40-012 T.G. PLATE ASSY 1 AS -A08-8119-05C
1
LG4-M2A41-011 TAPE GUIDE PLATE 1 FTA-A08-8119-05C
2
LG4-M2A42-010 SHUTTER PLATE 1 FTA-A08-8120-05B
3
LG4-M1A45-000 SHUTTER GUIDE PIN 2 FTA-A08-8121
4
LG4-M1A44-001 SHUTTER PUSH SPRING 1 FTA-A08-8122-B
5
LG4-M1A43-020 SHUTTER GUARD PLATE 1 FTA-A08-8123-E
6
LG4-M1A4L-000 T.G. GUIDE SCREW 1 FTA-A08-8124
7
LG4-M1A47-000 T.G. GUIDE PIN 1 FTA-A08-8125
8
LG4-M1A46-000 LOCK LEVER 1 FTA-A08-8127-B
9 LG4-M1A48-001
T.G. PUSH SPRING 1 FTA-A08-8127-50
10
LG4-M1A4K-000 T.G.A. GUIDE PIN 1 FTA-A08-8129
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
2B-8
2B-9
