F2FeederPartsList - 第68页
2B-13
I･pulse F2 Series
F2-82-1005 (B type)
P 6
Code No. Parts Name Q'ty Parts No.
LG4-M1A87-000
TENSION LEVER ASSY
1 AS -A08-8160-B
LG4-M1A8E-000
IDLER ROLLER ASSY
1 AS -A08-8162
LG4-M1A86-000
I.ROLLER ALL ASSY
1 AS1-A08-8162
LG4-M1A82-012
INDEXING LEVER ASSY
1 AS3-A08-8164
LG4-M1A8D-000
DRIVE ROLLER ASSY
1 AS -A08-8170
LG4-M1A81-003 D．ROLLER ALL ASSY 1 AS1-A08-8170
1 K87-M111C-000
PLANE WASHER
1 CTF-A08- 16-B
2 K87-M117B-000
PLANE WASHER
2 CTF-M08- 76-B
3 KW1-M11A3-001
LOWER GUIDE PLATE,L
1 FTA-A08-1179-C
4 LG4-M1A62-000
METAL SHAFT
1 FTA-A08-8155
5 LG4-M1A8C-000
LEVER METAL
1 FTA-A08-8158-B
6 LG4-M1A63-010
LEVER AXIS PIN
1 FTA-A08-8159-B
7 LG4-M1A64-010
WASHER
1 FTA-A08-8159-1C
8 LG4-M1A65-010
TENSION LEVER
1 FTA-A08-8160-B
9 LG4-M4A8B-000
TENSION LEVER RE.SP.
1 FTA-A12-8160-700
10 LG4-M1A66-010
ROLLER AXIS
1 FTA-A08-8163-B
11 LG4-M1A83-000
INDEXING LEVER
1 FTA-A08-8164
12 LG4-M1A8A-000
INDEXING LEV.RE.SP.
1 FTA-A08-8164-440
13 LG4-M1A84-010
ARM STUD
1 FTA-A08-8166-B
14 LG4-M1A85-000
ROLLER
1 FTA-A08-8167
15 LG4-M1A6M-100
MIDDLE GUIDE PLATE T
1 FTA-A08-8277
16 LG4-M1A6P-011
LOWER GUIDE PLATE , R
1 FTA-A08-8178-C
17 K87-M11BF-000
SCREW,FLAT HEAD
1 P2MK-4-IB
18
K87-M11BB-000
SCREW,FLAT HEAD
2 P2.6MK-5-IB
19
K87-M21BB-000 SCREW,TRUSS HEAD+ 1 T2.6M-5-P
20
K87-M111N-000 SCREW,PAN HEAD+ 6 3MC-3-P
21
K87-M11BE-000 THRUST WASHER 2 3V-0.5-8-P
22
23
24
25
26
27
28
2B-12
2B-13
I･pulse F2 Series
F2-82-1005 (B type)
P 7
No. Code No. Parts Name Q'ty Parts No.

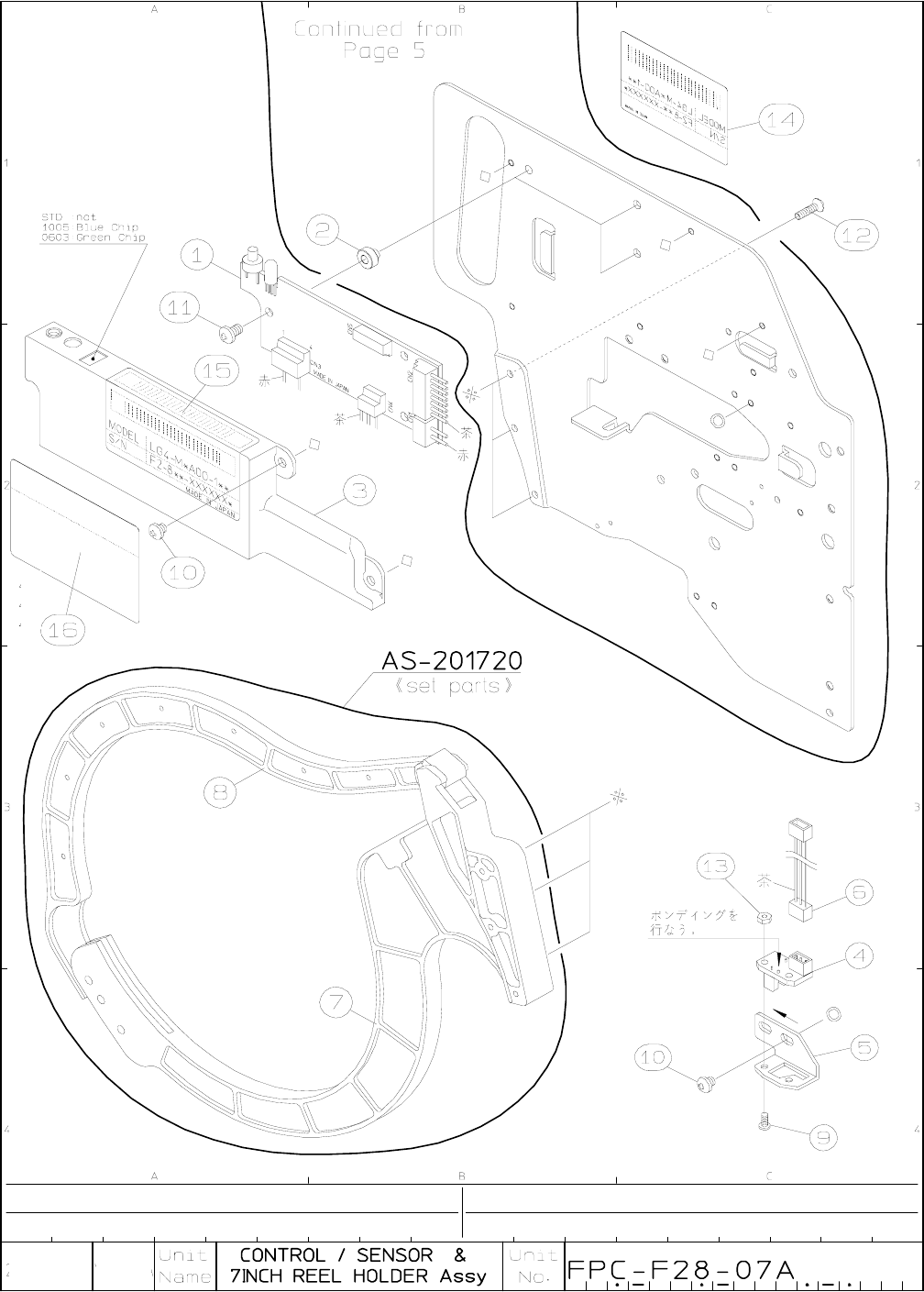

LG4-M1A90-000
REEL HOLDER ASSY
1
AS -201720
1
LG4-M1AH1-004 BOARD ITF (REV.A) 1
2
LG4-M1A6R-010
CONTROL BOARD COLLAR 3
FTA-A08-8152-B
3
LG4-M2A6S-100
CONTROL BOARD COVER
1
FTA-A08-8253-05
4 LG4-M1AH2-002
BOARD ITF-A (REV.A) 1
5 LG4-M1A6T-101 SENSOR GUIDE PLATE 1 FTA-A08-8267-B
6
LG4-M1AA6-100
SENSOR HARNESS ASSY 1 FTA-A08-8151-9
7 LG4-M1A91-000
REEL HOLDER
1
201720
8 LG4-M1A92-000
CLAMP ARM
1
201721
9 LG4-M1ADG-100
SCREW,PAN HEAD + 2 P2MC-4-P
10 K87-M111N-000 SCREW,PAN HEAD + 5
3MC-3-P
11 K87-M111W-000 SCREW,PAN HEAD ＋ 3
3MC-5-P
12 LG4-M1ADF-000
SCREW,BAIND HEAD +
3
3M-10-P-P-Bi
13
LG4-M1AD4-100 SCREW NUT
2 2MH-P
14 LG4-M1AC1-100 SERIAL NO. STICKER 1
FTA-A08-8250-SNS
15 LG4-M1AC3-100 SERIAL NO. STICKER 1
FTA-A08-8250-SNS1
LG4-M1ACX-100
FTA-A08-8253-BLPS
*1 LG4-M1ACX-110
FTA-A08-8253-PS-B
LG4-M1ACX-111 PROTECTION SEAL 1
FTA-A08-8253-PS-C
17
18
19
20
21
22
23
24
25
26
27
28
29
30
*1
F2-825-2889B～
16
