SERVICES REQUIRED
MACHINE EXTERNAL SERVICES
3.2 Installation Manual Chapter Issue 3 Jun 01
Pneumatic Supply The machine requires a pneumatic supply of clean, non lubricated air which
should maintain a pressure of between 5 Bar - 8 Bar at 5 litres/minute.
The air should be to ISO 8573.1 standard, quality class 2.3.3, where :
• 2 dirt = 1 micron
• 3 water = -20°C pressure dewpoint
• 3 oil = 1mg/m3
Electrical Supply The average power consumption for a machine without any options fitted is
1.6KVA at 100V/240V ac 50/60 Hz.
DEK recommends a power supply capacity of 3KVA or greater to accommodate
extra machine options, surges on power-up and certain machine operations.
CAUTION
OVER CURRENT PROTECTION. Magnetic/thermal over current pro-
tectors protect the machines internal wiring and components from over-
heating/fire during fault conditions. DEK require additional machine
supply protection with the fitment of a wall mounted circuit breaker rated
to 16 Amps and conforming to national/federal regulations.
Circuit Breakers The dc circuit breaker panel is located on the front of the M24 dc Power Supply
Module located at the front of the machine and accessed through the front access
panel. The ac circuit breakers are located on the front of the M23 ac Power
Supply Module located at the rear of the machine and accessed through the rear
access panel.

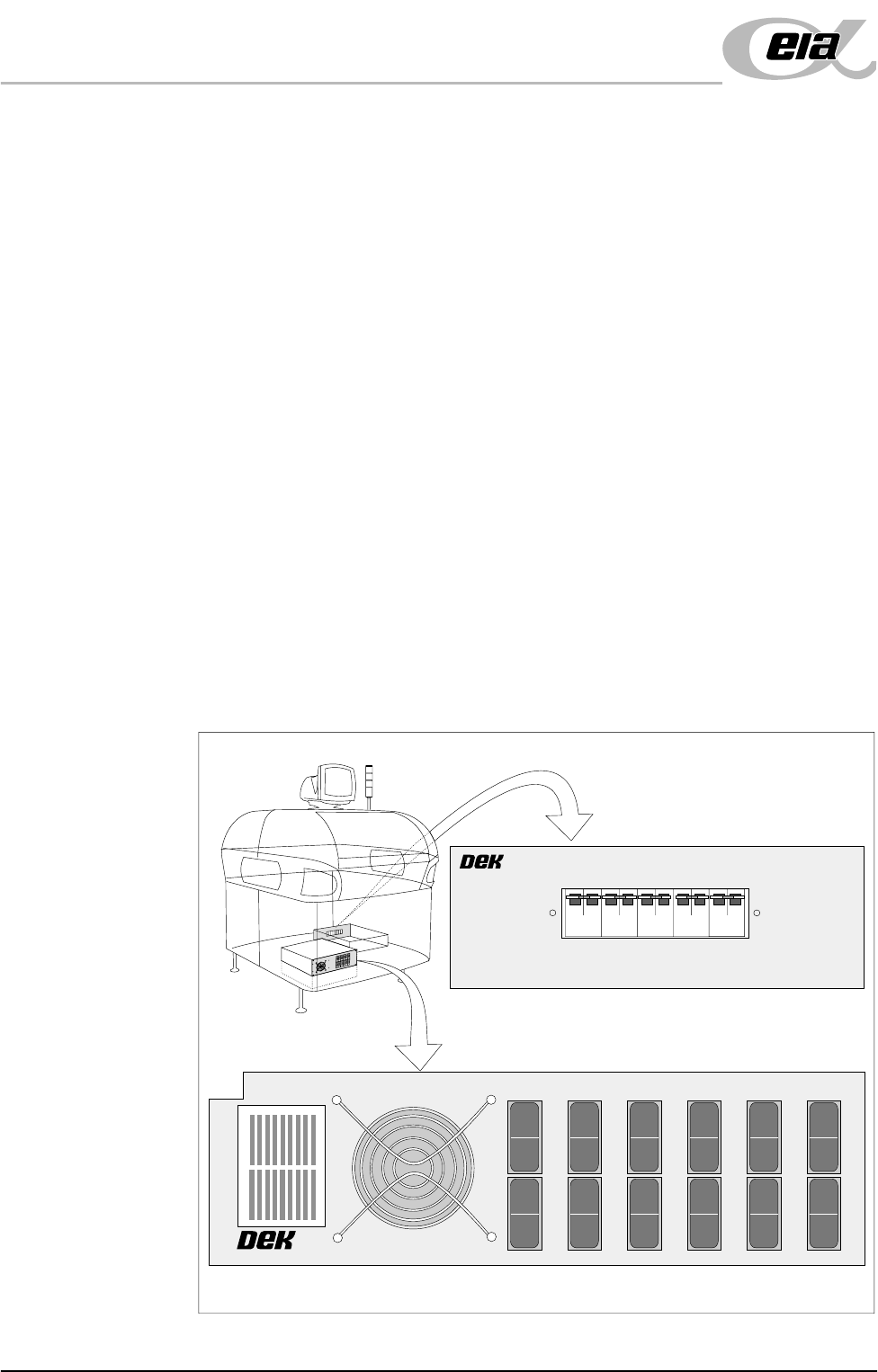

Figure 3-2 Circuit Breaker Panels
M23 AC POWER MODULE 155938
AC Circuit Breaker Panel
DC Circuit Breaker Panel
CB13 CB14 CB15 CB16 CB17
M24 DC Power Module 155945
l
o
l
o
l
o
l
o
l
o
l
o
l
o
l
o
l
o
l
o
l
o
l
o
CB1
CB3 CB5 CB7 CB9 CB11
CB2 CB4 CB6 CB8 CB10 CB12
SERVICES REQUIRED
MACHINE FOOTPRINT
Chapter Issue 3 Jun 01 Installation Manual 3.3

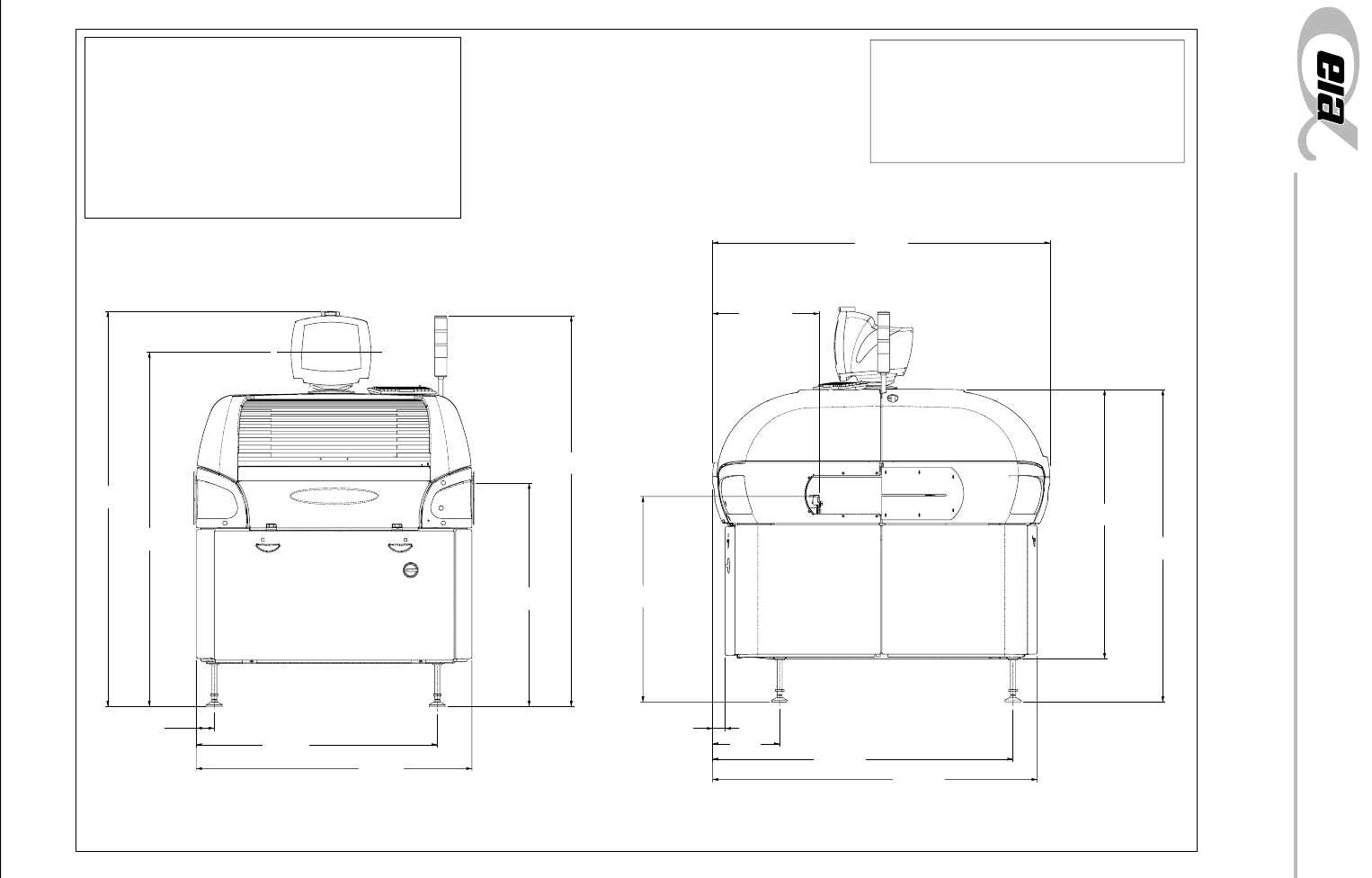

MACHINE FOOTPRINT
CAUTION
OVER CURRENT PROTECTION.
Magnetic/thermal over current protectors protect
the machines internal wiring and components from
overheating/fire during fault conditions.
DEK require additional machine supply protection
with the fitment of a wall mounted circuit breaker
rated to 16 Amps and conforming to
national/federal regulations.
NOTE
All measurements in metric
All dimensions shown with maximum board
transfer height of 980mm
Board transfer height: 820mm / 980mm
Screen load height: 905mm / 1065mm
1884
1690
85
1149
1314
1065
1864
Monitor Eye Height
980
** 508
1609
1490
1284
61
320
1549
1433
Front View
** Front of machine to front of board
View on Right Hand Side
