MACHINE PREPARATION

GENERAL

Chapter Issue 3 Jun 01 Installation Manual 5.1

CHAPTER 5 MACHINE PREPARATION

GENERAL

Prior to machine power up it is essential to follow the preparation instructions

in this Chapter thus ensuring correct operation of the machine and prevent any

possible damage occurring to the machine or personnel.

Transportation Having successfully completed the operations, detailed in Chapter 4, Unpacking

Instructions, the machine may now be transported to its designated area.

With the aid of a fork-lift truck or similar machine, locate the forks under the

machine so that the weight of the machine is taken evenly under the machine

frame. Transport the machine into position.

Lower the machine and adjust the mounting feet to the approximate height

required, see - Machine Levelling later in this Chapter.

MACHINE PREPARATION

TRANSIT BRACKETS

5.2 Installation Manual Chapter Issue 3 Jun 01

TRANSIT BRACKETS

Locations In order to prevent major machine assembly movement during transportation,

eight transit brackets are fitted to the machine, a description of each is detailed

in the table below.

Bracket Name Purpose

Front Transit Bracket

Secures the front of the screen chase, print-

head assembly, printhead lift and the squee-

gee mounts

X Axis Fwd Actuator Restrainer Bracket Prevents the screen chase colliding with the

forward X axis actuator

Print Carriage Stops (in 2 positions) Secures either end of the print carriage to the

print head assembly

Squeegee/ProFlow Transit Bracket Clamps the squeegee/ProFlow printhead

mechanism to the print carriage

Paste Dispense Transit Bracket Secure the optional paste dispense unit

X Axis Rear Actuator Restrainer Bracket Prevents the screen chase colliding with the

rear X axis actuator

Rear Transit Bracket Secures the rear of the screen chase

Y Axis Actuator Restrainer Bracket Prevents the screen chase colliding with the

rear Y axis actuator

MACHINE PREPARATION

TRANSIT BRACKETS

Chapter Issue 3 Jun 01 Installation Manual 5.3

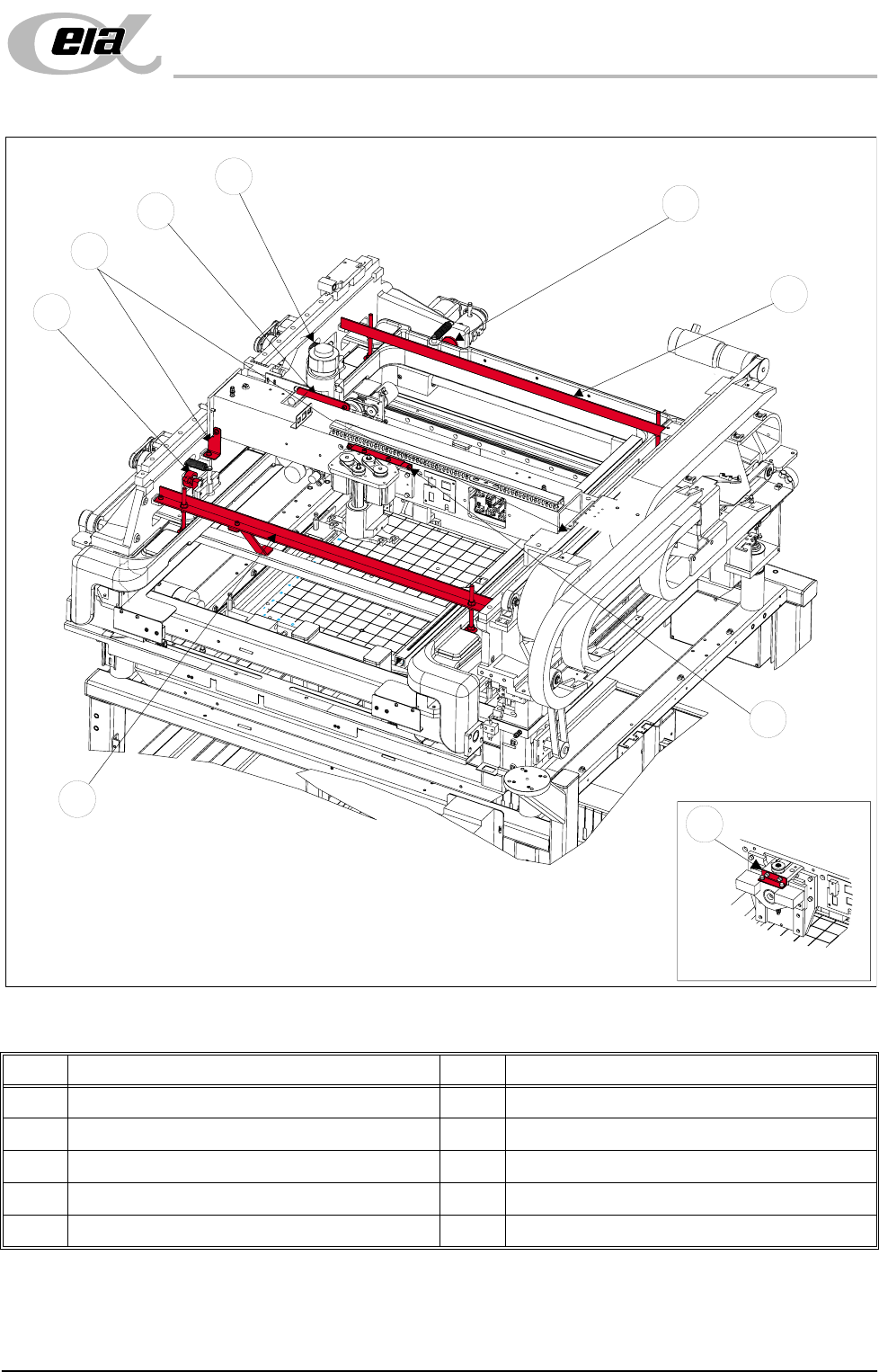

Figure 5-1 Transit Bracket Location

Item Description Item Description

1 Y Actuator Clamp 6 Print Carriage Stop (Left & Right)

2 Rear Transit Bracket 7 Paste Dispense Transit Bracket

3 Squeegee Transit Bracket 8 Rear X Actuator Clamp

4 Front Transit Bracket 9 ProFlow Transit Bracket

5 Forward X Actuator Clamp

ProFlow Option
