MACHI NE PRE PARAT ION SHOCK WATC HES Chapter Issu e 3 Jun 01 Installati on Manua l 5.21 Figure 5-13 Drop N T e ll Shockwatch Chase Sh ock Wa t c h If the chas e shock wa tch has t riggered, visually inspect the c hase i…
MACHINE PREPARATION
SHOCK WATCHES
5.20 Installation Manual Chapter Issue 3 Jun 01
SHOCK WATCHES
A self adhesive resettable shock watch (DEK Part No. 133517), is fitted in the
vertical plane on the machine in four places (Shock Watch Locations figure
refers).
Check if the shock watches have been triggered, the indicator shows red, ('Drop
N Tell' Shockwatch figure overleaf refers).
NOTE
The machine should be fitted with four untriggered shock watches at all times.

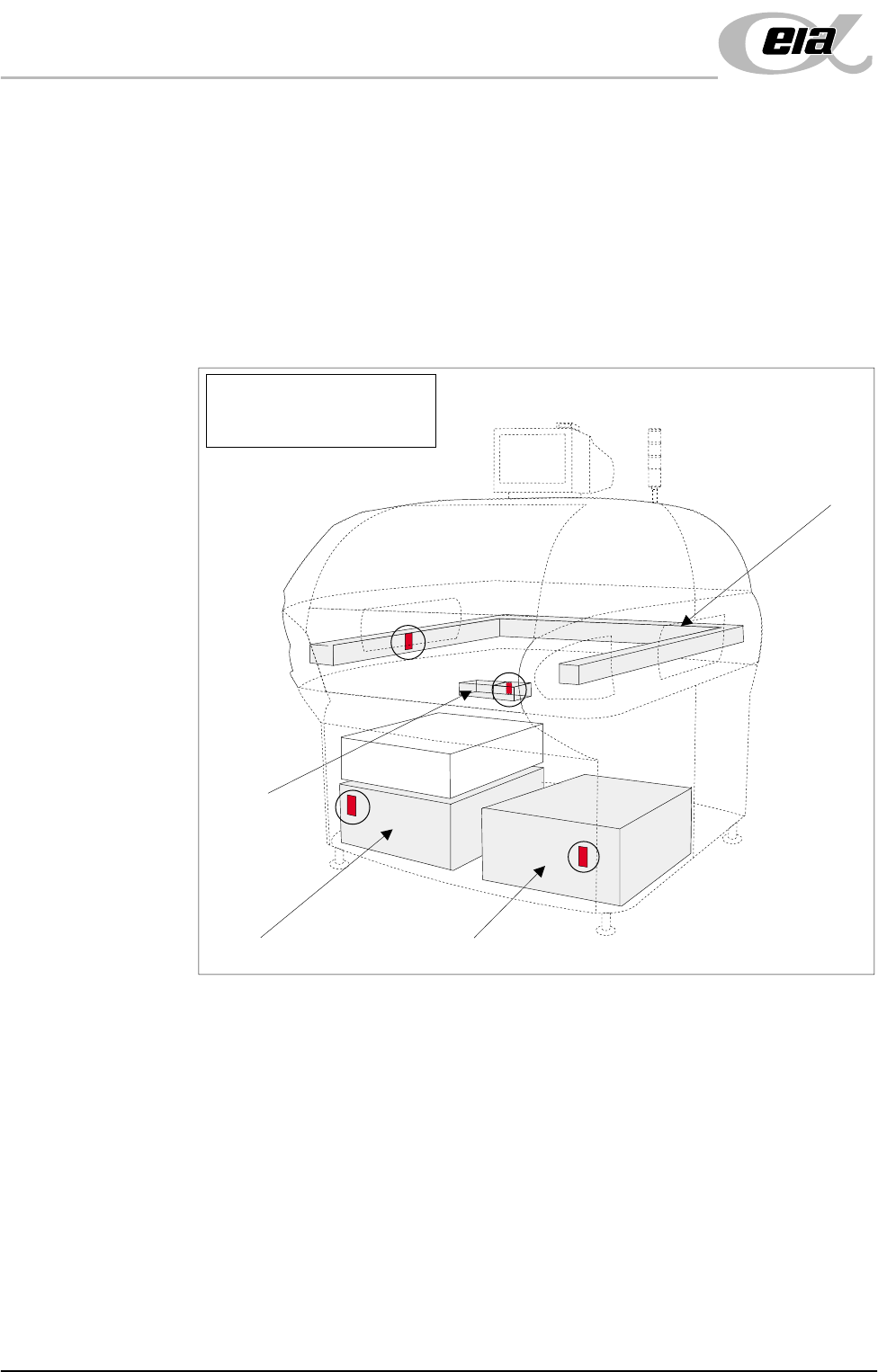

Figure 5-12 Shock Watch Locations
Machine PC Machine Controller
Camera
Chase
NOTE
Shock Watches (4 positions)
shown circled
MACHINE PREPARATION
SHOCK WATCHES
Chapter Issue 3 Jun 01 Installation Manual 5.21

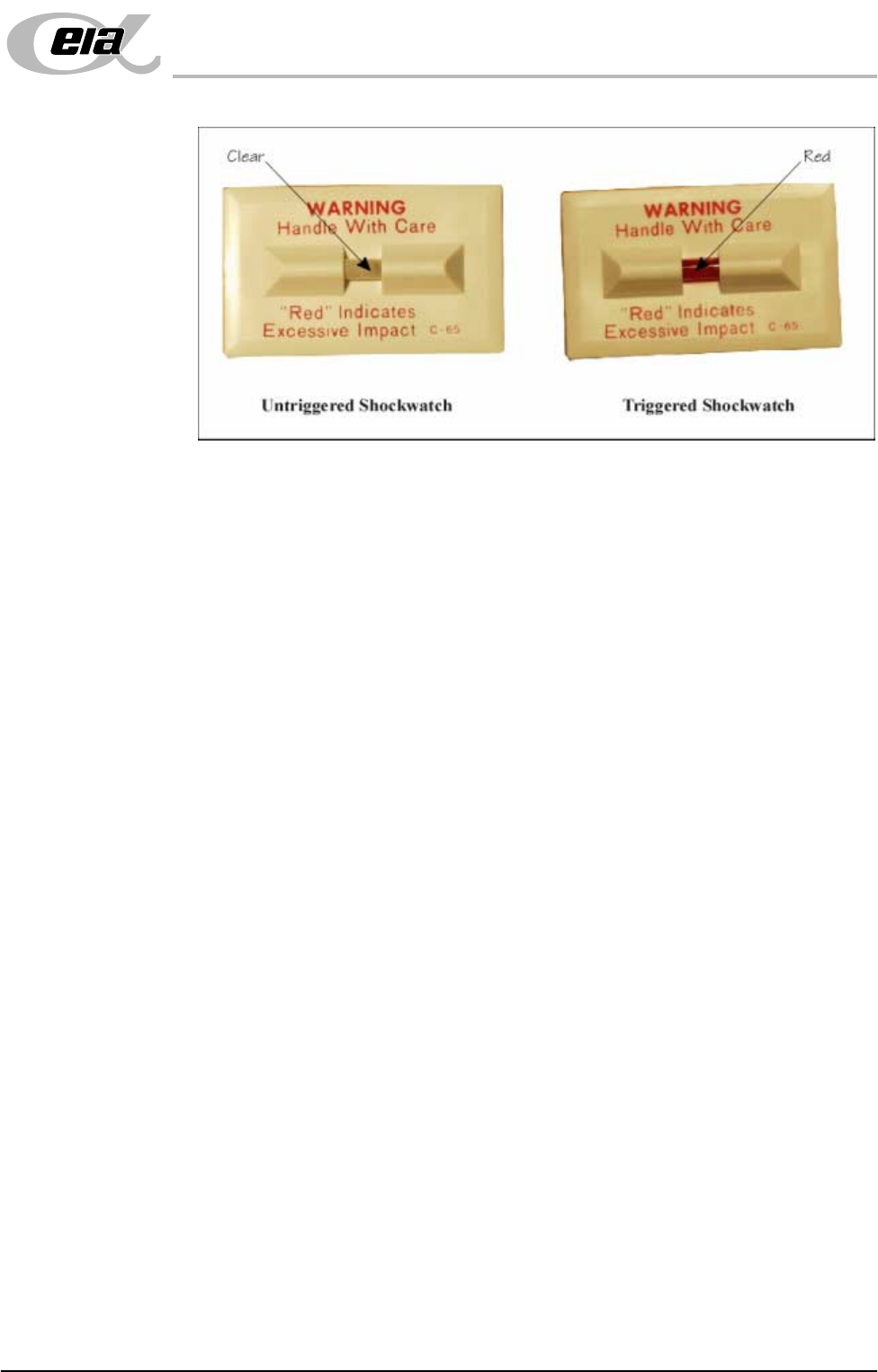

Figure 5-13 Drop N Tell Shockwatch
Chase Shock
Watch
If the chase shock watch has triggered, visually inspect the chase is level to the
table.
Camera Shock
Watch
If the camera shock watch has triggered, ensure that the camera is secure and
level on the camera mount (refer to Technical Reference Manual).
Machine PC Shock
Watch
If the machine PC shock watch has triggered, visually inspect the inside of the
PC and ensure that the cards are seated correctly.
Machine
Controller Shock
Watch
If the machine controller shock watch has triggered, visually inspect the machine
controller to ensure that the cards are seated correctly.
Shock Watch
Replacement
On completion of corrective action, replace any triggered shock watches.
NOTE
The machine should be fitted with four untriggered shock watches at all times.
MACHINE PREPARATION
SHOCK WATCHES
5.22 Installation Manual Chapter Issue 3 Jun 01
