POWER UP SEQUENCE
MACHINE POWER UP SEQUENCE
6.6 Installation Manual Chapter Issue 3 Jun 01
7. Select the OK button. The Event Viewer log is opened.
8. Examine the Event Log, looking for errors. Errors are indicated by a red icon
in the leftmost column. Any errors reported that display 'Disk' in the Source
column, indicate a problem has been found on the system hard disk.
When errors are found, the Event Log is to be forwarded to DEK CSG
Helpdesk, by e-mail - helpdesk@dek.com, hardcopy or fax - +44 1305
208382.
9. If no errors are found in the Event Viewer, close down Event Viewer.
Set Time and Time
Zone
10.In order for the machine PC to log events correctly, the system time, date and
time zone must be set.
a. Using the mouse, double click on the time, displayed at the right hand side
of the Windows NT taskbar. The Date/Time Properties window is dis-
played.
POWER UP SEQUENCE
MACHINE POWER UP SEQUENCE
Chapter Issue 3 Jun 01 Installation Manual 6.7
b. Click on the Time Zone tab.
c. Select the appropriate locale/time zone from the drop down menu box.
d. Click on Apply.
e. Click on the Date & Time tab. Adjust the local time and date.
f. Select OK.
g. Maximize the DEK monitor control display by clicking the DEK Soft-
ware icon on the task bar.
h. Press the System button.
NOTE
In some instances the DEK machine software may interpret any change in
date/time settings as an error, if so the following message, ‘Date and Time
Incorrect’, is displayed in the warning message window of the monitor
control display.
11.In the event of a date/time error message, carry out the following procedures:
a. Power down the machine.
b. Power up the machine. Allow the system to start without any user inter-
vention. DEK machine software executes. When the message - ‘Press
System Switch To Initialize Printer or select Diagnostics’ is displayed
in the Message Prompt Bar, the Diagnost function becomes available in
the menu bar.
c. Select Diagnost (F6).
d. The Module Diagnostics Page is displayed with the System Error message,
‘System Power Down’ superimposed on top of it.
e. Press the System button to enable system power.
POWER UP SEQUENCE
MACHINE POWER UP SEQUENCE
6.8 Installation Manual Chapter Issue 3 Jun 01

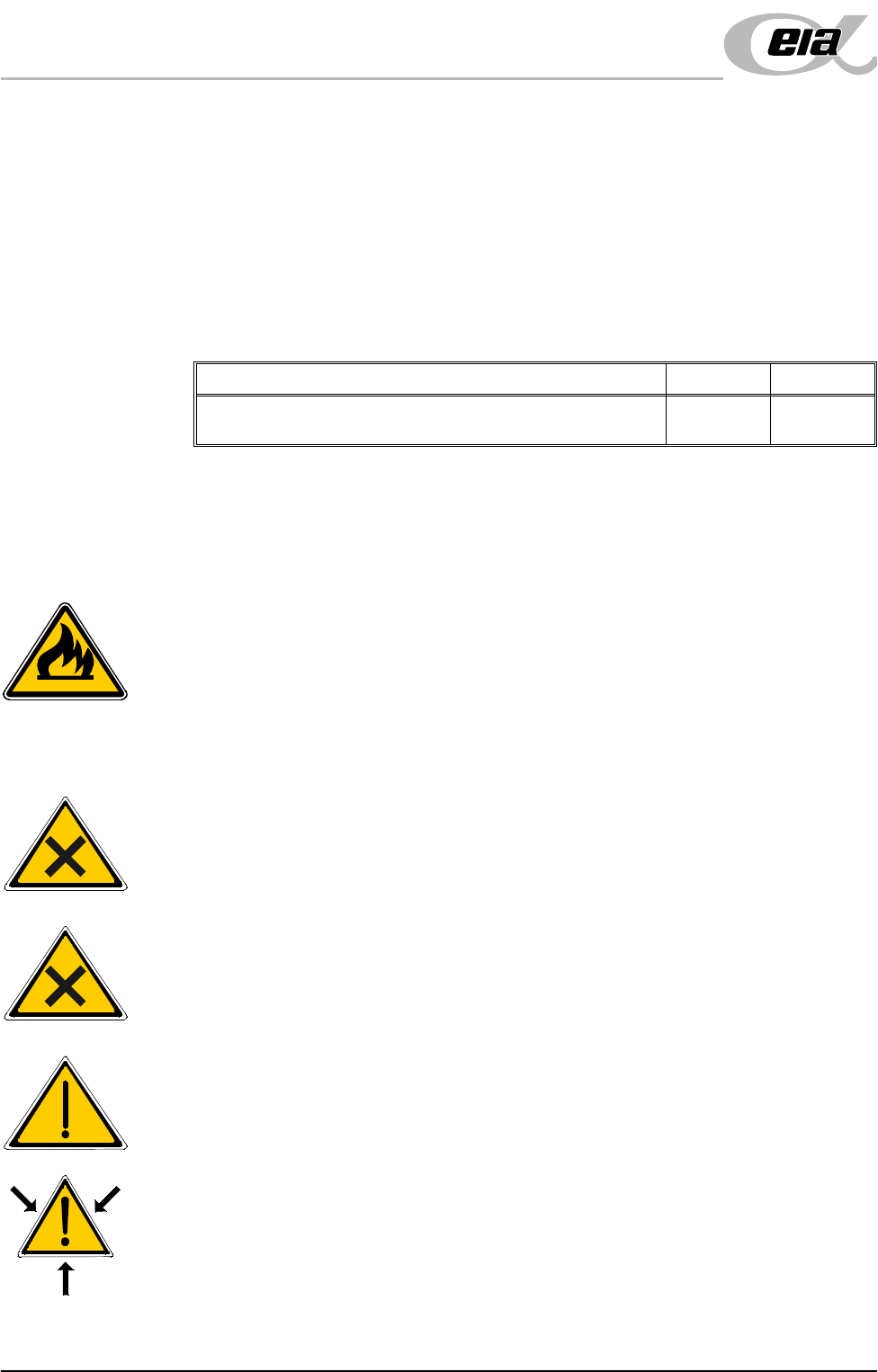

E Stop Loop
Operation
12.Carry out the following procedure for E Stop loop operation check:
a. Restore the DEK 265 program.
b. Select Diagnost (F6).
c. The Module Diagnostics Page is displayed with the system error message,
‘System Power Down’ superimposed on top of it.
d. Press the System button to enable system power.
13.Check E Stop loop operation as detailed in the table.
14.On completion of E Stop loop check, exit from the Diagnostics module.
15.Press the System button.
Screen Clean Function Check (if fitted)
WARNING
RECOMMENDED SOLVENTS. ANY SOLVENTS USED MUST
COMPLY WITH LOCAL ENVIRONMENTAL GUIDELINES. DEK
RECOMMEND USING SOLVENTS THAT ARE
ENVIRONMENTALLLY FRIENDLY, IE CFC FREE AND WATER
BASED. SOLVENTS USED MUST HAVE FAST EVAPORATION
RATES AND FLASHPOINT SPECIFICATIONS GREATER THAN
39ºC.
WARNING
SOLDER PASTE AND SOLVENTS. WHEN USING OR HANDLING
ANY SOLDER PASTE OR SOLVENT FORMULATION THE
MANUFACTURERS’ RECOMMEND SAFETY PRECAUTIONS MUST
BE STRICTLY ADHERED TO.
WARNING
PROTECTIVE CLOTHING. APPROVED PROTECTIVE CLOTHING
SHOULD BE WORN BY SOLDER PASTE AND SOLVENT
HANDLERS AT ALL TIMES TO ELIMINATE FUME INHALATION,
EYE CONTACT, SKIN CONTACT AND INGESTION.
WARNING
SOLVENT SOLUTION. DO NOT MIX SOLVENT SOLUTIONS.
FLUSH THE SOLVENT TANK THOROUGHLY WHEN CHANGING
TO A DIFFERENT SOLVENT SOLUTION.
WARNING
SOLVENT SPRAY. THE UNDERSCREEN CLEANER SPRAYS A FINE
JET OF SOLVENT SOLUTION ON TO THE CLEANER. APPROVED
PROTECTIVE CLOTHING SHOULD BE WORN.
Detail Accept Reject
Check the correct operation of all components of the E Stop
loop, ie E Stop buttons, covers and external E Stop if fitted.
