MACHIN E PER FORMAN CE MACHI NE CAPAB ILIT Y Chapter Issu e 4 Jun 01 Installati on Manua l 8.3 7. In the Record Filters Box, select sqy1 fil e and select O. K . 8. Select Stati stics , Cp k - Process Capability .
MACHINE PERFORMANCE
MACHINE CAPABILITY
8.2 Installation Manual Chapter Issue 4 Jun 01

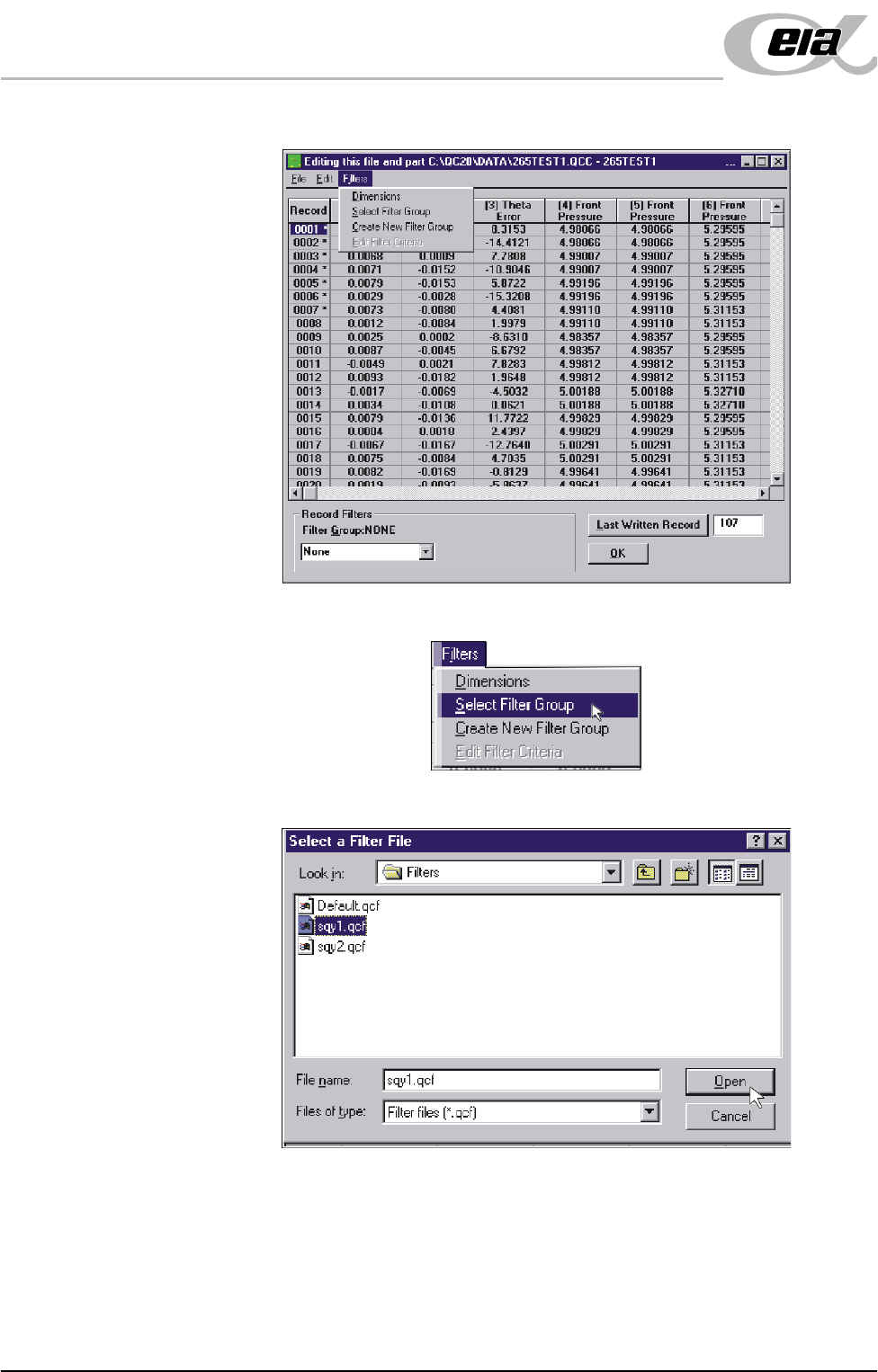

4. Select Filters.
5. Select Select Filter Group.
6. Highlight sqy1.qcf file and select Open.
MACHINE PERFORMANCE
MACHINE CAPABILITY
Chapter Issue 4 Jun 01 Installation Manual 8.3

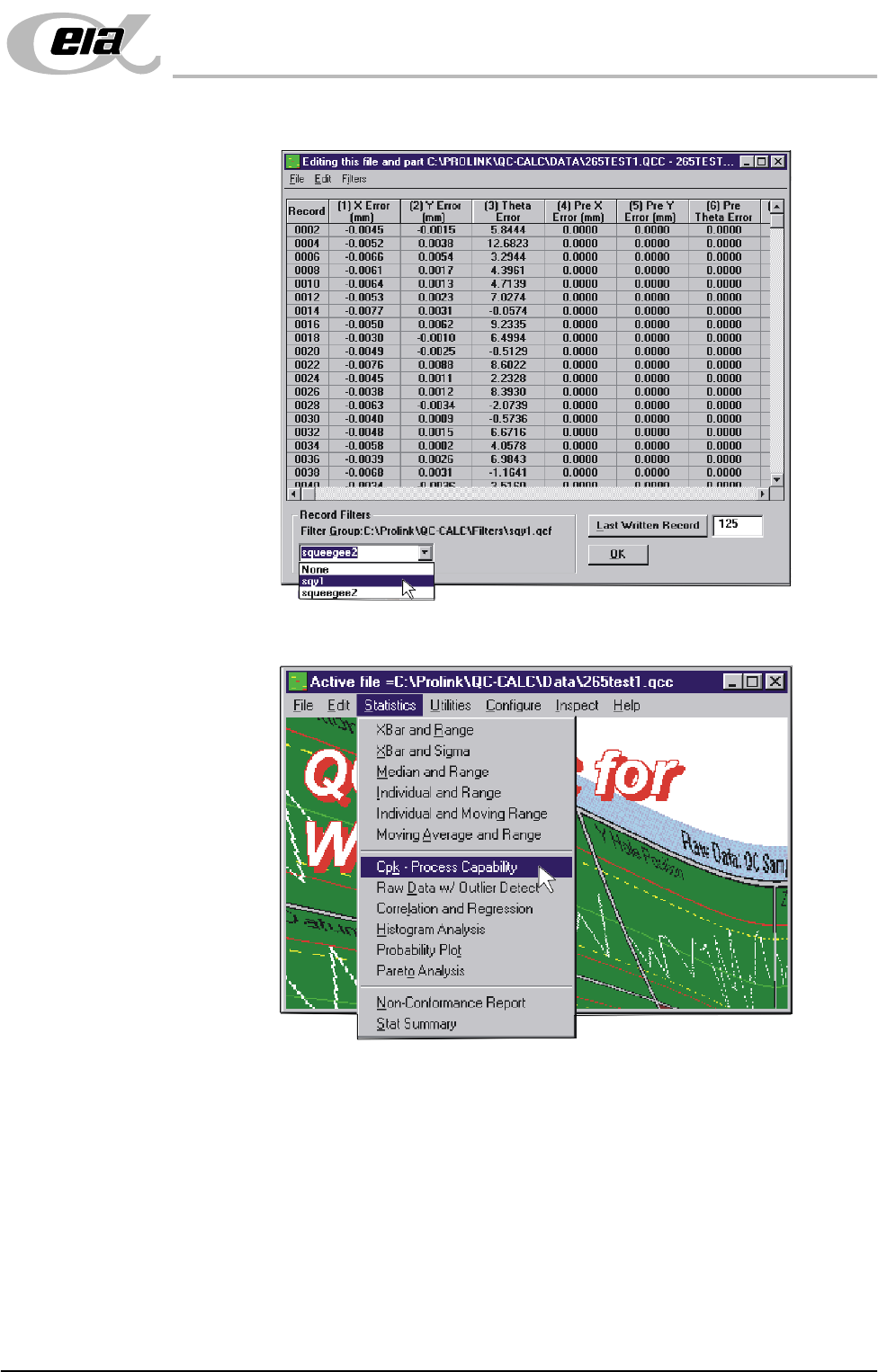

7. In the Record Filters Box, select sqy1 file and select O.K.
8. Select Statistics, Cpk - Process Capability.
MACHINE PERFORMANCE
MACHINE CAPABILITY
8.4 Installation Manual Chapter Issue 4 Jun 01

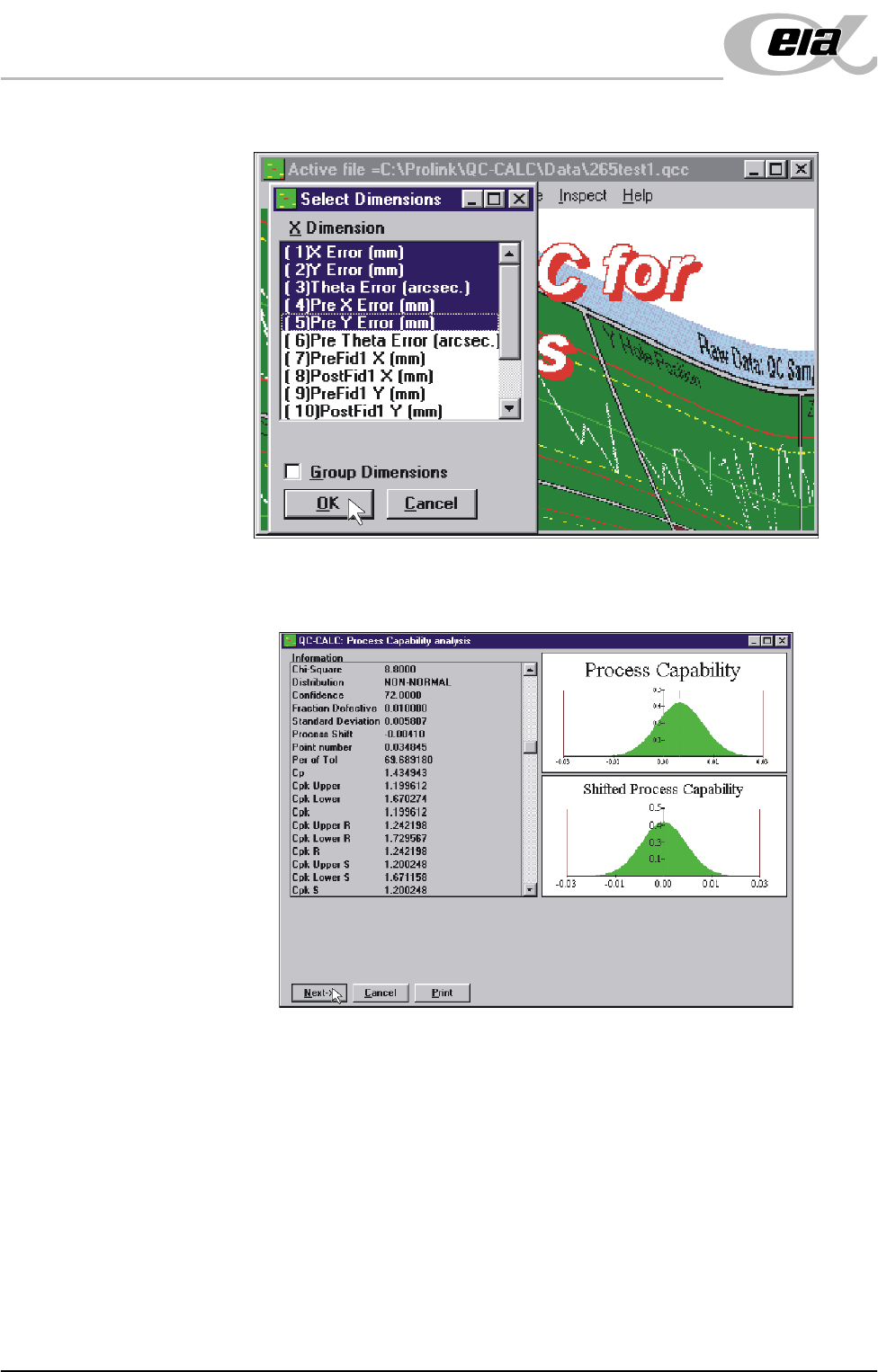

9. Highlight the required dimensions to output and select O.K.
10.View the Cp/Cpk values for the dimension illustrated ensuring the values are
within the specification. Select Next to view the further dimensions.
11.Repeat Steps 4 - 10 for filter group sqy2.qcf.
