AG−900+ and AG900+S Applicators
43
2009 Nordson Corporation
Part 1098464A
1
1
2
3
4
5
6
7
8
9
10
5
11
12
13
14
11
16
5
15

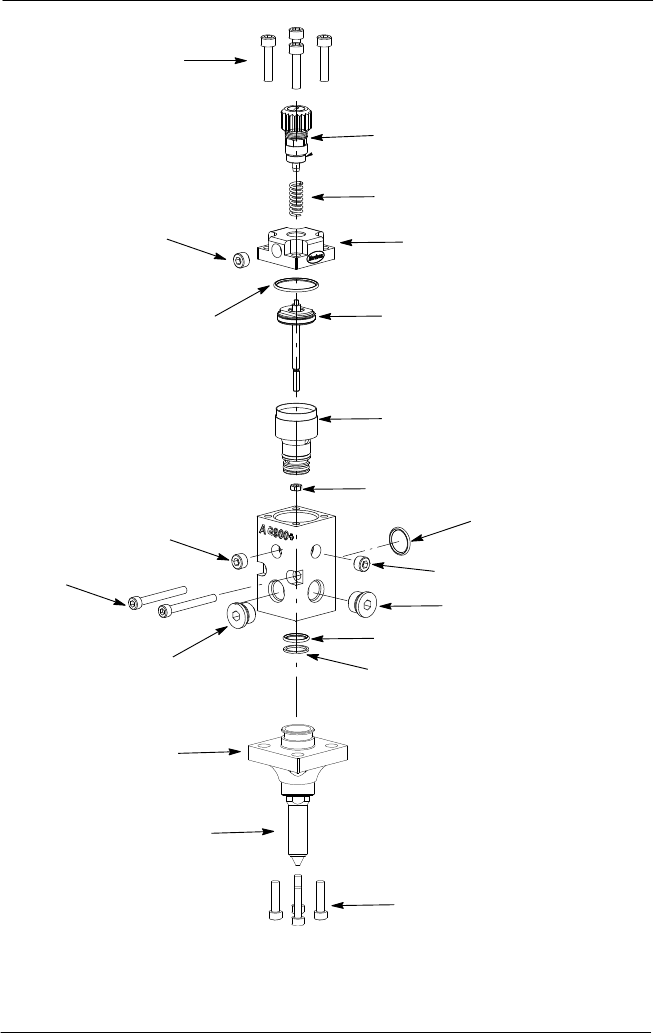

Figure
29: AG-900+ Applicator
AG−900+ and AG900+S Applicators
44
Part 1098464A
2009 Nordson Corporation
AG900+S Applicator Assembly
See Figure 30.
Item Part Description Qty
− 1088351 Module, AG900+S −
1 254423 Needle stroke adjustment 1
2 277595 Spring, 17−7PH 1
3 981830 Scr, skt, M6 x 25, Zn 8
4 1049803 Air cap 1
5 940231 O-ring, Viton, 1.063x1.188x.063 1
6 1086828 Cartridge/needle assy, AG900+S 1
7 1088484 Gun body 1
8 940161 O-ring, Viton, .614ID x.070 1
9 1047878 Nozzle flange 1
10 982374 Scr, skt, M5x40 2
11 973574 Plug, o-ring, str thd,
9
/
16
−18 2
12 1078078 Plug, pipe, skt,
1
/
8
NPT, br 3
13 954033 Back-up ring, single,
9
/
16
x
11
/
16
1
14 940151 O-ring, Viton, .563 x .688 x .063 1
15 − Nozzle 1
NOTE: Nozzles are ordered according to customer specifications. Contact Nordson
Customer Service at 877−NORDSON for ordering information.
AG−900+ and AG900+S Applicators
45
2009 Nordson Corporation
Part 1098464A
1
2
3
4
5
6
7
8
9
11
12
10
13
14
12

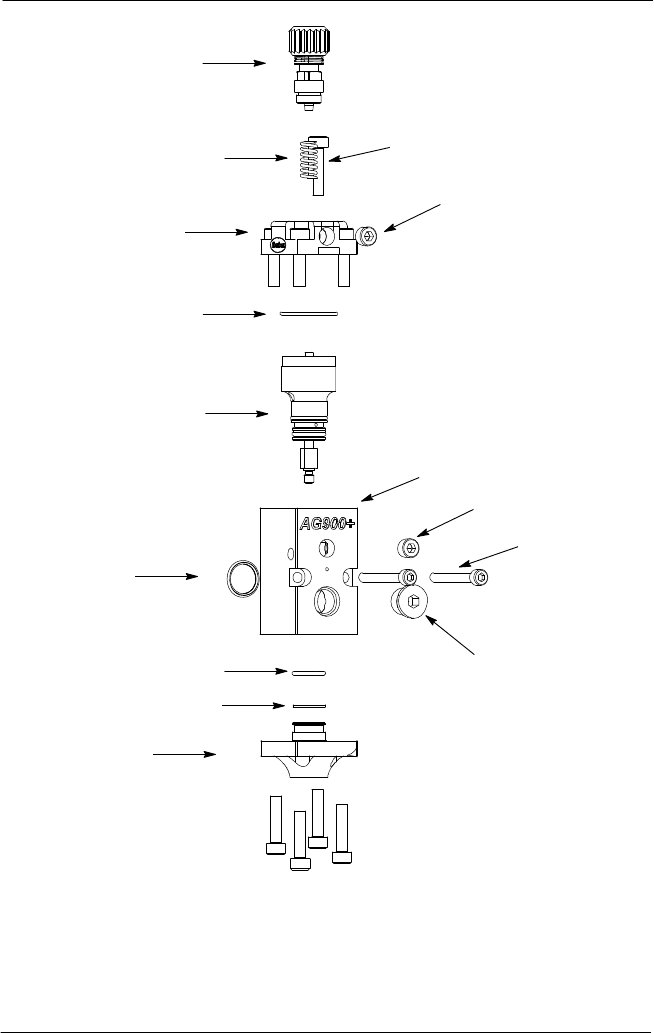

Figure
30: AG900+S Applicator
