AG−900+ and AG900+S Applicators
10
Part 1098464A
2009 Nordson Corporation
Description
See Figure 1. The Nordson AG-900+/AG900+S modular dispensing applicator is a
noncirculating unit that applies solid and foamed high performance materials such as
silicones, plastisols, urethanes, epoxies, butyls and hot melts. The applicator is compatible
with a variety of Nordson systems and is well suited for automated dispensing equipment.
1
6
5
3
4
8
7
2

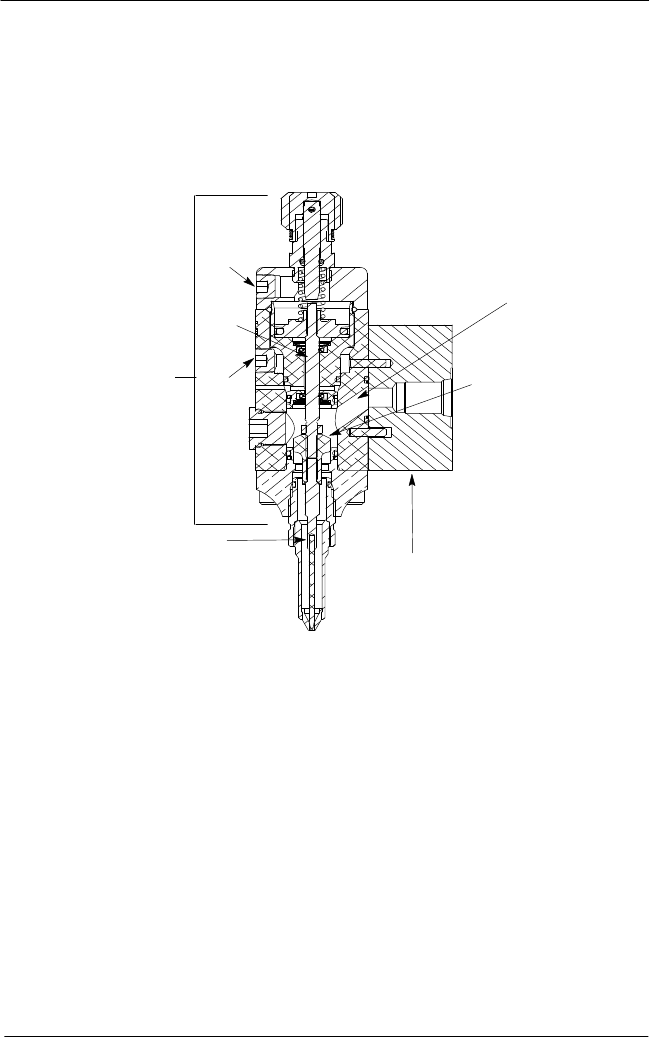

Figure 1: AG-900+ Dispensing Applicator with Zero−Cavity Nozzle
1. Applicator module
2. Adapter block
3. Needle
4. Pressure regulated material
5. Air-close port
6. Piston
7. Air-open port
8. Needle/nozzle assembly
The applicator is pneumatically triggered by a customer supplied external solenoid. The
applicator assembly includes a module, and either a pressure regulator (heated or
unheated) or applicator adapter body.
The AG-900+/AG900+S dispensing applicator is available as a zero cavity needle/nozzle
design, or can be provided to accept standard extrusion nozzles.
AG−900+ and AG900+S Applicators
11
2009 Nordson Corporation
Part 1098464A
Heated AG-900+/AG900+S applicators have replaceable heater cartridge(s) in the heater
block assembly mounted to the module. Resistance temperature detectors (RTDs) in the
hose and in the heater block monitor temperature. Cordsets from the hose and from the
heater block are connected electrically to a controlled power source such as a FoamMix
processor or a standalone temperature controller.
AG900+/AG900+S applicators are set up from the factory to operate as
air-open-spring-close actuation for use in dispensing lower viscosity materials. Air-close
operation can be used when using materials of higher viscosity.
NOTE: If the air−close will be used, order part number 1096469 solenoid assembly
with tubing.
Needle and Nozzle Design
AG-900+/AG900+S applicators accommodate needle and nozzle designs selected for each
application requirement. The zero cavity needle/nozzle applicator describes zero space
downstream to the cut-off where the nozzle and needle join. This prevents material from
leaking, clogging and backing up in the applicator-on positions.
Material Pressure Regulator
AG-900+/AG900+S applicators are available with an optional material pressure regulator
attached directly to the applicator module. This regulator provides consistent material
pressure to maintain constant output rates.
Hose Connections
The following heated and unheated hose connections are available:
dual-axis (X and Y) swivel
fixed, 90
fixed, straight-in
X-axis swivel with straight-in hose connection
X-axis with 90 hose connection
Y-axis swivel
dual hose, circulating
AG−900+ and AG900+S Applicators
12
Part 1098464A
2009 Nordson Corporation
Specifications
Parameter Specification
Operating temperature C (F)
Unheated
Heated
0−50C (32−120 F)
204C (400F)
Maximum working pressure
210 bar (3000 psi) @ 121 C (250 F)
100 bar (1500 psi) @ >121 C (250 F)
Regulated output control
pressure
100 bar (1500 psi) @ 121 C (250 F)
Operating air pressure 4−6.89 bar (60−100 psi)
Viscosity range 1000−1 million cps
Electrical requirements (heated
applicators only)
220−240 VAC 50/60 Hz, 270W/ applicator,
100W/swivel
Weight kg (lb)
Heated
Cold
Regulated: 1.7 (3.8) Unregulated: 1.1 (2.4)
Regulated: 1.2 (2.65) Unregulated: .75 (1.65)
Physical Dimensions
Applicator Type With Regulator mm (in.) Without Regulator mm (in.)
Heated 140 H x 73 W x 107 D
(5.51 x 2.87 x 4.21)
140 H x 60 W x 67 D
(5.51 x 2.36 x 2.64)
Cold 140 H x 50 W x 107 D
(5.51 x 1.97 x 4.21)
140 H x 37 W x 67 D
(5.51 x 1.46 x 2.64)
