AG−900+ and AG900+S Applicators
31
2009 Nordson Corporation
Part 1098464A
4. Remove the nozzle (7)and nozzle flange (6) from the AG900+/AG900+S module by
removing the 4 socket head screws (1) from the nozzle flange (the nozzle will remain
attached to the flange). Do not remove nozzle from nozzle flange.
5. Push the piston/cartridge assembly and needle assembly (located inside of applicator
module body) out of the top of the module by pressing tip of needle assembly against a
soft surface (i.e. piece of wood or wood work surface).
Module
Body
Piston/Cartridge
Assembly with
Needle Assembly

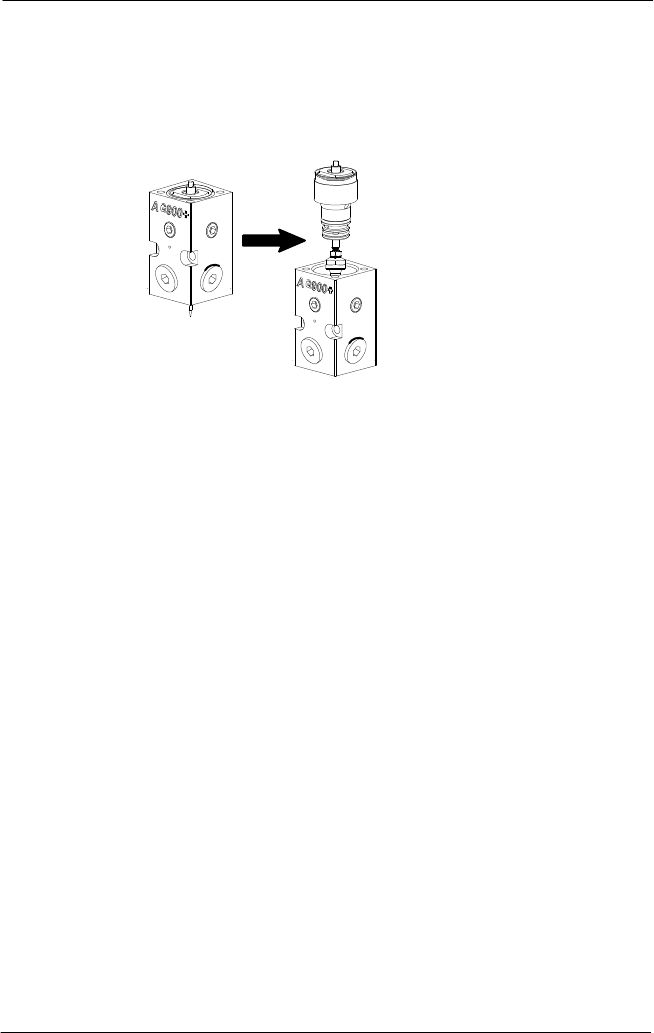

Figure 18: Removing piston/cartridge and Needle Assembly from Applicator Module Body
6. Remove large o-ring (9) from top of piston/cartridge assembly.
AG−900+ and AG900+S Applicators
32
Part 1098464A
2009 Nordson Corporation
AG900+ Modules
a. See Figure 19. Loosen jam nut (3) on piston shaft and back nut up until against piston
shaft shoulder (4).
2
1
3
4
Figure 19: Piston/Cartridge Assembly and Needle Assembly
1. Piston/cartridge assembly
2. Needle assembly
3. Jam nut
4. Piston shaft shoulder
b. Unscrew the old needle assembly from the piston/cartridge assembly.
AG900+S Modules
a. See Figure 20.Using two 5/16 in. open wrenches, loosen the needle from the cartridge
rod.
2
1
Figure 20: Piston/Cartridge Assembly and Needle Assembly
1. Piston/cartridge assembly 2. Needle assembly
AG−900+ and AG900+S Applicators
33
2009 Nordson Corporation
Part 1098464A
7. Unscrew old needle assembly from the piston/cartridge
assembly.
NOTE: If piston assembly spins − put wrench on
wrench flats on top of piston.
Assembly
1. Install the needle assembly onto the new piston/cartridge
assembly. Turn until the needle nut bottoms out against
the end of the piston shaft shoulder.
NOTE: If the piston shaft is not fully seated inside the
needle assembly, the piston/cartridge assembly with the
needle assembly will not properly seat in the applicator
module and nozzle, resulting in adhesive leaking
.
2. AG900+ Module: See Figure 21. Install the new needle
assembly onto the piston/cartridge assembly. Turn until
the needle bottoms out against the end of the piston shaft.
Tighten jam nut.
AG900+S Module: See Figure 20. Install the new needle
assembly onto the piston/cartridge assembly. Turn until
the needle bottoms out against the end of the piston shaft.
Figure 21: Piston/Cartridge
Assembly and Needle
Assembly
1. Piston/cartridge assembly
2. Needle Assembly
3. Jam nut
3. Clean applicator module bore.
4. Apply o-ring lubricant to the module bore inside the applicator module body.
CAUTION! Apply o-ring lubricant to module body bore ONLY. Lubricating o-rings
directly or individual components causes back-up rings to become dislodged
when module is assembled.
5. Install piston/cartridge assembly into applicator module body. Carefully press on top of
the cartridge to properly engage cartridge o-rings into the module body bore.
NOTE: You will hear a small pop when the assembly seats in the module body.
2
3
Bottomed
out against
Piston Shaft
1
AG900+
