Fig. H1-4 バックアップベース１ Back-Up Base 1 1 101-001 339 338 312 313 319 327 332 323 328 333 317 310 310 307 308 305 307 308 305 341 313 314 316 315 316 306 306 301 319 327 332 331 327 332 331 327 332 323 328 340 322 328 333 32…
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
201 0992C20D BASE 1 1099202202-001
202 222L0966 GUIDE_LINEAR 1 1099202202-002
203 222L0967 GUIDE_LINEAR 1 1099202202-003
204 0948C416 BLOCK 1 1099202202-004
205 226B0002 GREASE_NIPPLE 4 1099202202-005
206 225F0566 PIPE_FITTINGS 4 1099202202-006
207 09482500 ASSY_VALVE 1 1099202202-007
208 09482501 ASSY_VALVE 1 1099202202-008
209 225B0616 AIR_LINE_EQPT 16 1099202202-009
210 211DE762 PLATE 1 1099202202-010
211 211FD928 BRACKET 2 1099202202-011
212 211DE271 PLATE 2 1099202202-012
213 0948C20F BRACKET 2 1099202202-013
214 221DA062 MACHINE_SCREW 8 1099202202-014
215 221AA020 ROHS_HEX-SCT 18 1099202202-015
216 221AA022 ROHS_HEX-SCT 2 1099202202-016
217 221AA024 ROHS_HEX-SCT 8 1099202202-017
218 221DA207 MACHINE_SCREW 12 1099202202-018
219 221HA004 WASHER 10 1099202202-019
220 221HA104 WASHER 10 1099202202-020
221 221AA101 ROHS_HEX-SCT 4 1099202202-021
222 216E1441 PIN_LOCATE 13 1099202202-022
223 221AA096 ROHS_HEX-SCT 6 1099202202-023
Fig. H1
1101-001
Fig. H1-3
GS-CU300
Fig. H1-4
バックアップベース１
Back-Up Base 1
1101-001
339
338
312
313
319
327
332
323
328
333
317
310
310
307
308
305
307
308
305
341
313
314
316
315
316
306
306
301
319
327
332
331
327
332
331
327
332
323
328
340
322
328
333
325
330
334
320
323
328
333
323
328
340
322
328
333
325
330
334
320
333
328
321
302
303
336
329
324
337
304
318
317
309
318
309
337
336
329
324
333
328
321
332
327
326
332
327
326
304
303
335
335
302
113
113
Fig. H1

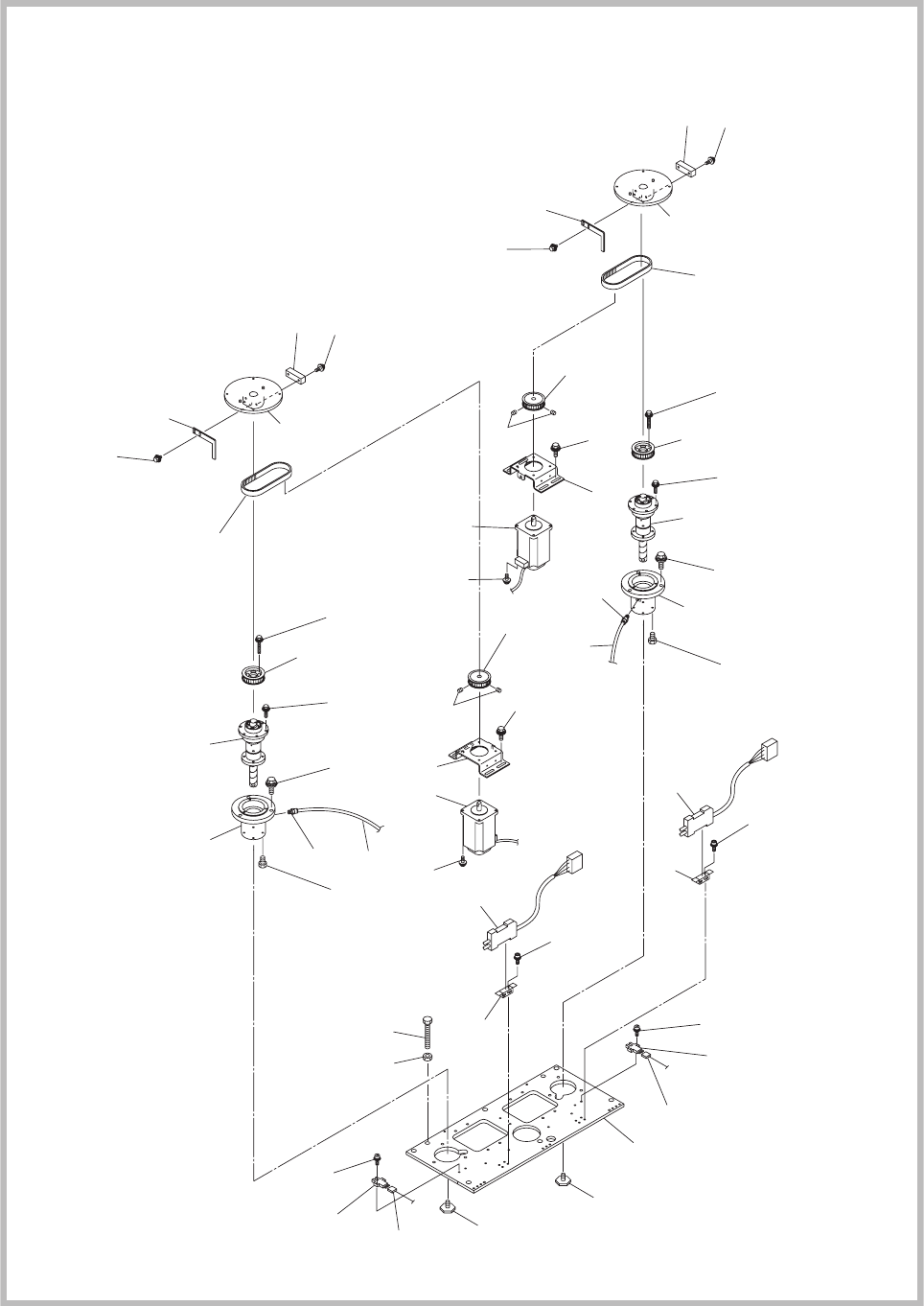

デュアル搬送 (
Y
サイズ
250mm
対応 )
DUAL TRANSFER(FOR
Y SIZE 250mm)
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
301 0992C208 PLATE 1 1099202203-001
302 0917C20G STEPPING_MOTOR 2 1099202203-002
303 211FD904 BRACKET 2 1099202203-003
304 223Q0775 PULLEY_TIMING 2 1099202203-004
305 223B0456 BALL_SCREW 2 1099202203-005
306 221B0133 BOLT_HEX 2 1099202203-006
307 216B1817 HOLDER 2 1099202203-007
308 223Q0773 PULLEY_TIMING 2 1099202203-008
309 0992C200 COLLAR(BACKUP) 2 1099202203-009
310 225F0566 PIPE_FITTINGS 2 1099202203-010
311 211FD378 BRACKET 2 1099202203-011
312 9W210448 CABLE 1 1099202203-012
313 23G10001 SENSOR_PHOTO 2 1099202203-013
314 0948251G ASSY_SENSOR 1 1099202203-014
315 0948251H ASSY_SENSOR 1 1099202203-015
316 23G00312 SENSOR_PELEC 2 1099202203-016
317 0948C203 BLOCK(BACKUP) 2 1099202203-017
318 223L0379 BELT_TIMING 2 1099202203-018
319 221DA013 MACHINE_SCREW 4 1099202203-019
320 221AA017 ROHS_HEX-SCT 8 1099202203-020
321 221AA018 ROHS_HEX-SCT 4 1099202203-021
322 221AA019 ROHS_HEX-SCT 6 1099202203-022
323 221AA021 ROHS_HEX-SCT 12 1099202203-023
324 221AA031 ROHS_HEX-SCT 8 1099202203-024
325 221AA044 ROHS_HEX-SCT 6 1099202203-025
326 221AA005 ROHS_HEX-SCT 4 1099202203-026
327 221HA003 WASHER 12 1099202203-027
328 221HA004 WASHER 22 1099202203-028
329 221HA005 WASHER 8 1099202203-029
330 221HA006 WASHER 6 1099202203-030
331 221AA006 ROHS_HEX-SCT 4 1099202203-031
332 221HA103 WASHER 12 1099202203-032
333 221HA104 WASHER 14 1099202203-033
334 221HA106 WASHER 6 1099202203-034
335 0917C303 TUBE_D4 1 1099202203-035
336 221HA303 ROHS_WASHER 8 1099202203-036
337 221CA007 SET_SCREW 4 1099202203-037
338 221BB008 ROHS:BOLT_HEX 2 1099202203-038
339 221FA015 NUT_HEX 2 1099202203-039
340 221HA204 WASHER 8 1099202203-040
341 9W210447 CABLE 1 1099202203-041
Fig. H1
1101-001
Fig. H1-4
GS-CU300
