P-0324-001 - 第37页
Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 601 0992C408 BLOCK(1L) 1 1099202401-001 602 0992C409 BLOCK(1R) 1 1099202401-002 603 0948C41J BLOCK(2L3RT) 1 1099202401-003 604 0948C41K BLOCK(2R3L T) 1 1099202401-004 605 …

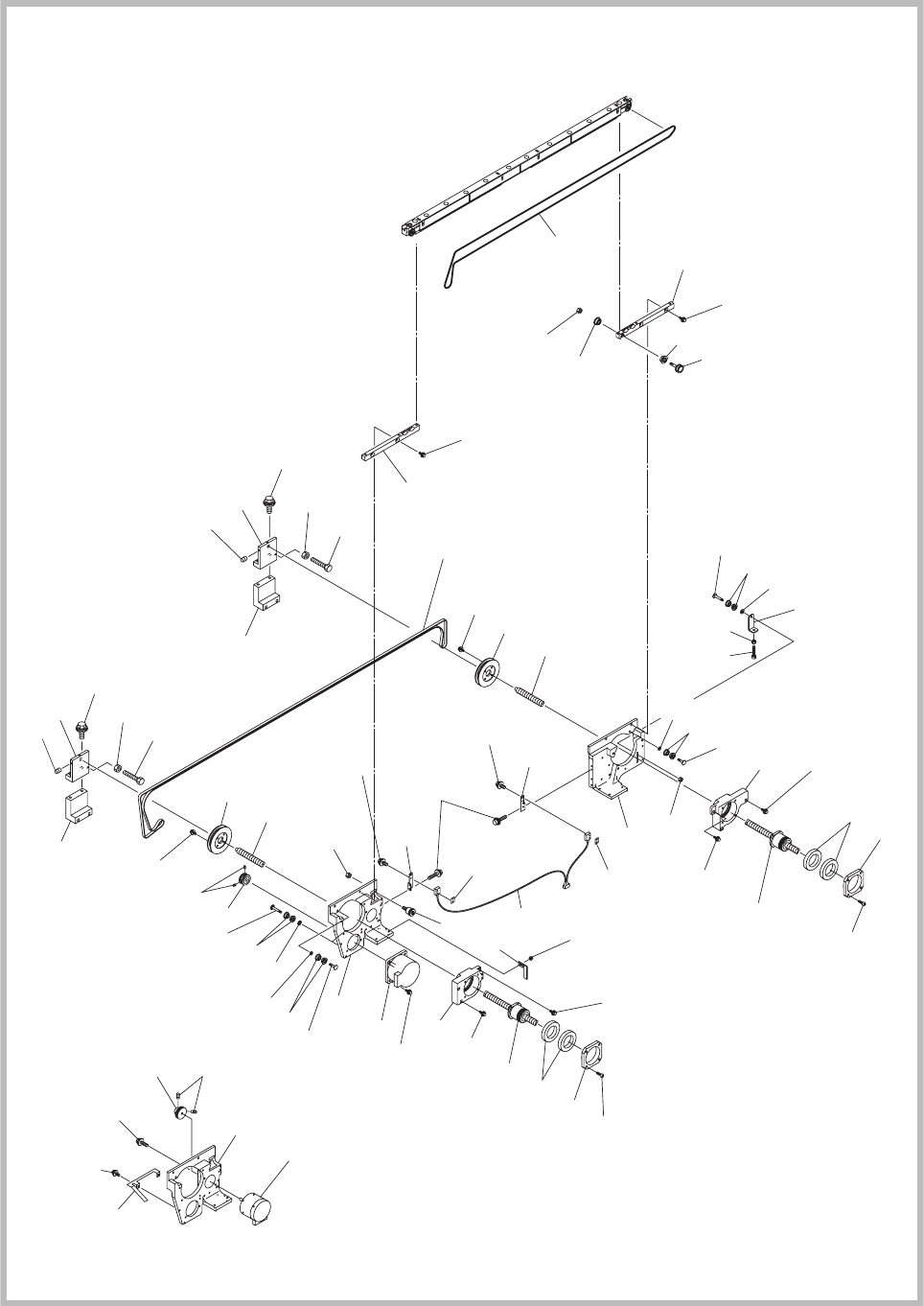

Fig. H1-7
可動ベース１
Movable Base 1
1101-001
603
649
630
629
650
643
630
614
640
639
648
636
606
612
611
640
639
651
608
607
645
656
644
643
614
640
639
640
639
651
640
639
657
606
604
640
639
657
658
648
636
623
624
624
654
652
653
635
653
652
654
623
635
606
646
638
646
638
628
620
626
620
628
633
643
644
622
640
639
637
613
655
627
613
655
627
610
656
644
643
608
607
601
655
627
613
602
615
627
625
655
659
618
605
606
611
635
631
649
636
642
641
634
655
641
632
644
643
645
609
616
601
635
621
619
642
641
617
644
643
647
Fig. H1
デュアル搬送 (
Y
サイズ
250mm
対応 )
DUAL TRANSFER(FOR
Y SIZE 250mm)
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
601 0992C408 BLOCK(1L) 1 1099202401-001
602 0992C409 BLOCK(1R) 1 1099202401-002
603 0948C41J BLOCK(2L3RT) 1 1099202401-003
604 0948C41K BLOCK(2R3LT) 1 1099202401-004
605 0992C40P BRACKET(DOG1) 1 1099202401-005
606 0992C40F BALL SCREW 2 1099202401-006
607 216B1798 HOLDER 2 1099202401-007
608 222D0423 BEARING_RADIAL 4 1099202401-008
609 223L0383 BELT_TIMING 1 1099202401-009
610 223L0327 BELT_TIMING 1 1099202401-010
611 223Q0767 PULLEY_TIMING 2 1099202401-011
612 223Q0758 PULLEY_TIMING 1 1099202401-012
613 213A1581 SHAFT 4 1099202401-013
614 221AA032 ROHS_HEX-SCT 4 1099202401-014
615 0948C40X TENSIONSHAFT 1 1099202401-015
616 0948C410 1LCABLEBRACKET 1 1099202401-016
617 221AA016 ROHS_HEX-SCT 2 1099202401-017
618 4M140174 MOTOR_STEPPING 1 1099202401-018
619 4M140178 MOTOR_STEPPING 1 1099202401-019
620 211FD659 BRACKET 2 1099202401-020
621 223Q0749 PULLEY_TIMING 1 1099202401-021
622 223M0059 PULLEY_FLAT 1 1099202401-022
623 0992C40B BRACKET 2 1099202401-023
624 0992C40C BRACKET(BS) 2 1099202401-024
625 0948C40Y TENSIONBRACKET 1 1099202401-025
626 0948250K ASSY_SENSOR 1 1099202401-026
627 222D0017 BEARING_RADIAL 10 1099202401-027
628 211FD666 BRACKET 2 1099202401-028
629 223Q0755 PULLEY_TIMING 1 1099202401-029
630 222D0016 BEARING_RADIAL 2 1099202401-030
631 221BA004 ROHS_BOLT_HEX 1 1099202401-031
632 221AA005 ROHS_HEX-SCT 2 1099202401-032
633 221AA006 ROHS_HEX-SCT 4 1099202401-033
634 221AA018 ROHS_HEX-SCT 2 1099202401-034
635 221CA005 SET_SCREW 8 1099202401-035
636 221FA007 NUT_HEX 2 1099202401-036
637 221FA009 NUT_HEX 1 1099202401-037
638 221DA004 MACHINE_SCREW 4 1099202401-038
639 221HA005 WASHER 11 1099202401-039
640 221HA105 WASHER 11 1099202401-040
641 221HA004 WASHER 5 1099202401-041
642 221HA104 WASHER 3 1099202401-042
643 221HA003 WASHER 17 1099202401-043
644 221HA103 WASHER 16 1099202401-044
645 221AA017 ROHS_HEX-SCT 8 1099202401-045
Fig. H1
1101-001
Fig. H1-7
GS-CU300
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
646 221HA101 WASHER 8 1099202401-046
647 221AA010 ROHS_HEX-SCT 2 1099202401-047
648 221BA008 ROHS_BOLT_HEX 1 1099202401-048
649 221FA005 NUT_HEX 2 1099202401-049
650 221HA203 WASHER 1 1099202401-050
651 221AA033 ROHS_HEX-SCT 4 1099202401-051
652 221HA006 WASHER 4 1099202401-052
653 221HA106 WASHER 4 1099202401-053
654 221AA043 ROHS_HEX-SCT 4 1099202401-054
655 221HA204 WASHER 7 1099202401-055
656 221AA007 ROHS_HEX-SCT 8 1099202401-056
657 221AA031 ROHS_HEX-SCT 2 1099202401-057
658 0948C41F HOLDER(2R) 1 1099202401-058
659 0948C40M HOLDER(3R) 1 1099202401-059
Fig. H1-7
1101-001
Fig. H1
GS-CU300
