Fig. H1-12 可動シュート A1,3 Movable Chute A1,3 1 101-001 B04 B01 B06 B08 B03 B05 B07 B04 B02 B04 B09 B10 B 1 1 B12 B13 B14 B16 B17 B18 B15 B06 B08 B03 B05 B09 B10 B 1 1 B12 B13 B14 B16 B17 B18 B15 B04 B07 Fig. H1 デュアル搬送 ( Y サ…
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
A01 0948C105 CHUTE2K 1 109480210Z-001
A02 223Q0663 PULLEY_TIMING 2 109480210Z-002
A03 211DE892 PLATE 1 109480210Z-003
A04 0917C107 BRACKET21 1 109480210Z-004
A05 0917C108 BRACKET22 1 109480210Z-005
A06 0917C109 BRACKET23 1 109480210Z-006
A07 0917C10A BRACKET24 1 109480210Z-007
A08 226A0144 SEAL 8 109480210Z-008
A09 213A1378 SHAFT 8 109480210Z-009
A10 226A0074 SEAL 8 109480210Z-010
A11 226A0001 SEAL 8 109480210Z-011
A12 216Q0044 BUSH_LOCATE 8 109480210Z-012
A13 222C0133 GUIDE_SLIDE 8 109480210Z-013
A14 23G00316 SENSOR_PELEC 2 109480210Z-014
A15 211E1117 SPACER 8 109480210Z-015
A16 222M1297 SPRING_COMP 8 109480210Z-016
A17 225F0421 PIPE_FITTINGS 12 109480210Z-017
A18 225F0330 PIPE_FITTINGS 6 109480210Z-018
A19 225F0240 PIPE_FITTINGS 4 109480210Z-019
A20 09482509 ASSY_CYLINDER 1 109480210Z-020
A21 211G5843 BLOCK 1 109480210Z-021
A22 211FE750 BRACKET 1 109480210Z-022
A23 211FE532 BRACKET 1 109480210Z-023
A24 221HA104 WASHER 4 109480210Z-024
A25 221HA004 WASHER 4 109480210Z-025
A26 221A0431 BOLT_HEX-SCT 12 109480210Z-026
A27 221A0443 BOLT_HEX-SCT 8 109480210Z-027
A28 221CA001 SET_SCREW 8 109480210Z-028
A29 221C2001 SET SCREW 8 109480210Z-029
A30 221DA102 MACHINE_SCREW 4 109480210Z-030
A31 221AA016 ROHS_HEX-SCT 4 109480210Z-031
A32 221AA006 ROHS_HEX-SCT 2 109480210Z-032
A33 221DA114 MACHINE_SCREW 2 109480210Z-033
A34 0948C10W CHUTE_COVER_KL 1 109480210Z-034
A35 0948C10X CHUTE_COVER_KR 1 109480210Z-035
A36 221DA106 MACHINE_SCREW 4 109480210Z-036
Fig. H1
1101-001
Fig. H1-11
GS-CU300
Fig. H1-12
可動シュート
A1,3
Movable Chute A1,3
1101-001
B04
B01
B06
B08
B03
B05
B07
B04
B02
B04
B09
B10
B
11
B12
B13
B14
B16
B17
B18
B15
B06
B08
B03
B05
B09
B10
B
11
B12
B13
B14
B16
B17
B18
B15
B04
B07

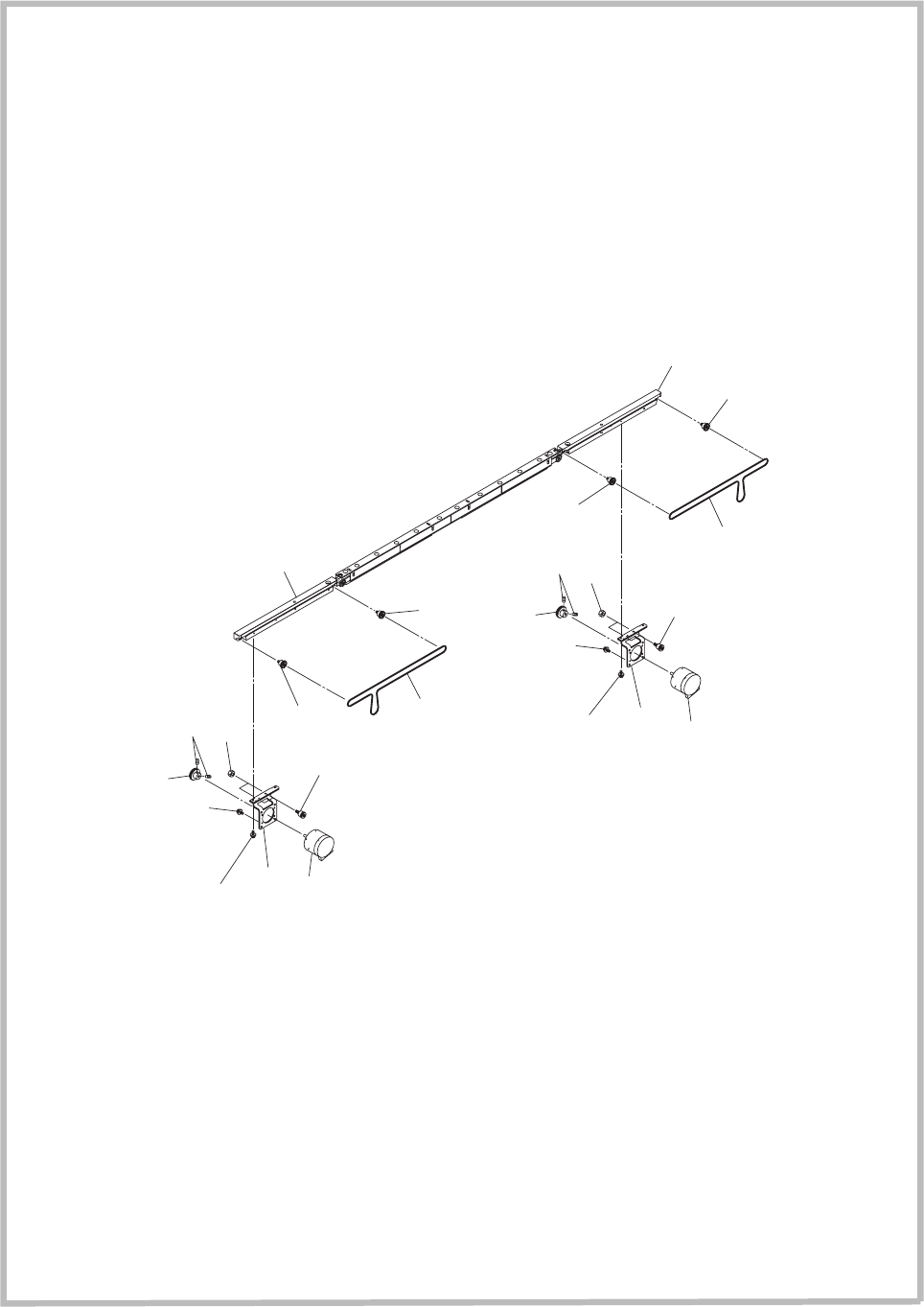

Fig. H1
デュアル搬送 (
Y
サイズ
250mm
対応 )
DUAL TRANSFER(FOR
Y SIZE 250mm)
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
B01 0948C107 CHUTE13R 1 109480210H-001
B02 0948C106 CHUTE13L 1 109480210H-002
B03 4M140178 MOTOR_STEPPING 2 109480210H-003
B04 223Q0663 PULLEY_TIMING 4 109480210H-004
B05 223Q0749 PULLEY_TIMING 2 109480210H-005
B06 223M0059 PULLEY_FLAT 4 109480210H-006
B07 223L0384 BELT_TIMING 2 109480210H-007
B08 0948C419 MBRACKET(1LR) 2 109480210H-008
B09 221FA009 NUT_HEX 4 109480210H-009
B10 221HA005 WASHER 4 109480210H-010
B11 221HA105 WASHER 4 109480210H-011
B12 221AA006 ROHS_HEX-SCT 4 109480210H-012
B13 221HA003 WASHER 4 109480210H-013
B14 221HA103 WASHER 4 109480210H-014
B15 221CA005 SET_SCREW 4 109480210H-015
B16 221AA017 ROHS_HEX-SCT 4 109480210H-016
B17 221HA004 WASHER 4 109480210H-017
B18 221HA104 WASHER 4 109480210H-018
Fig. H1
1101-001
Fig. H1-12
GS-CU300
