5. Component Recognition Error Code and List of Error Messages
0005-002 4-40 Tg0248-PM-ER

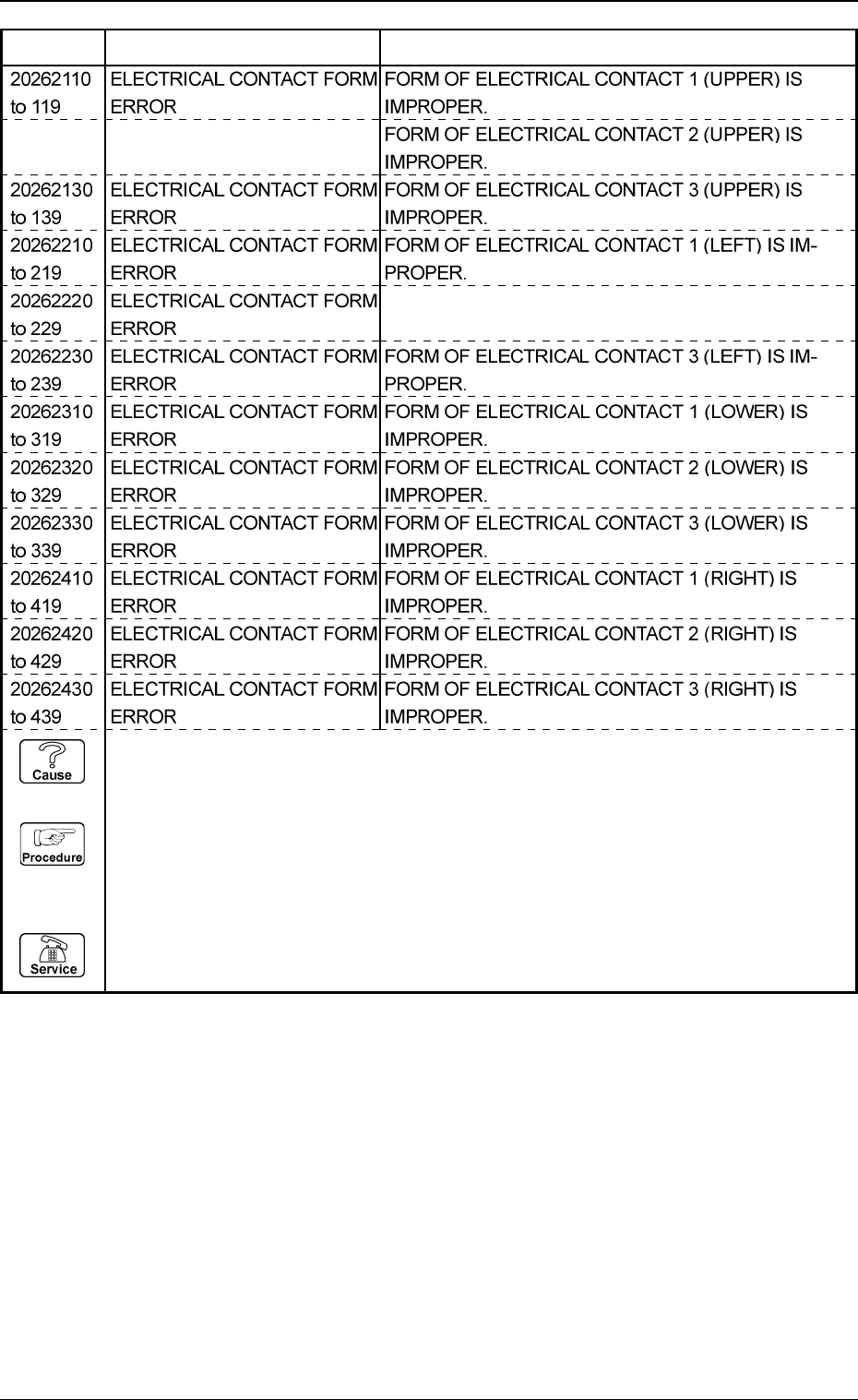

Error Code Display A Display B
FORM OF ELECTRICAL CONTACT 2 (LEFT) IS IM-
PROPER.
20262120 ELECTRICAL CONTACT FORM
to 129 ERROR
(Cause 1) This is the device’s self-diagnostic message.
(Reset Procedure in the case of Cause 1)
Reset Procedure
(1) Press the [CLEAR ALARM] key and the buzzer stops sounding.
(2) Press the [ZERO] button to return all the axes to their original positions.
(3) Re-start.
(4) If the device can’t be re-started, contact our service personnel.
2030X002 PICKED POSTURE ERROR
Note: X represents “1 through
4, 8 and 9”.
5. Component Recognition Error Code and List of Error Messages
0103-003 4-41 Tg0248-PM-ER
Error Code Display A Display B
2030X003 PICKED POSTURE ERROR
Note: X represents “1 through
4, 8 and 9”.
2030X001 PICKED POSTURE ERROR
Note: X represents “1 through
4, 8 and 9”.
ERROR OF PICK-UP ANGLE WAS MORE THAN
ACCEPTABLE.
2030X004 PICKED POSTURE ERROR
Note: X represents “1 through
4, 8 and 9”.
(Cause 1) When a component is picked up, the pick-up positions (X and Y) and angle have
shifted greatly from the correct ones.
(Cause 2) When the tape is fed, a component is turned vertically.
(Reset Procedure in the case of Causes 1 and 2)
Reset Procedure
(1) Check the selected component and the tape feeder.
(2) Check if the feeder (B) offset data is correct.
(3) Check if the component library data is correct.
(4) Check the selected component and the tape feeder.
2031X001 CENTER OF GRAVITY DE-
TECTION ERROR
Note: X represents “1 through
4, 8 and 9”.
(Cause 1) An improper vacuum nozzle is selected for the component or vice versa.
(Cause 2) The component is bent due to weak vacuum suction force.
(Cause 3) When a component is picked up, the pick-up positions (X and Y) and angle have
shifted greatly from the correct ones.
(Reset Procedure in the case of Causes 1, 2 and 3)
Reset Procedure
(1) Check the selected component and vacuum nozzle.
(2) Check the vacuum pressure.
(Cause 1) An improper vacuum nozzle is selected for the components or vice versa.
(Cause 2) The component is bent due to weak vacuum suction force.
(Cause 3) When a component is picked up, the pick-up positions (X and Y) and angle have
shifted greatly from the correct ones.
(Reset Procedure in the case of Causes 1, 2 and 3)
Reset Procedure
(1) Check the selected component and vacuum nozzle.
(2) Check the vacuum pressure.
5. Component Recognition Error Code and List of Error Messages
0103-001 4-41-1 Tg0248-PM-ER
Error Code Display A Display B
2032X001 ANGLE DETECTION ERROR
Note: X represents “1 through
4, 8 and 9”.
Component
Vacuum Nozzle
