(Cause 1) The pick-up position has shifted from the specified one in the X direction. (Cause 2) The tapered part of the vacuum nozzle end or the dif fusion plate is stained. (Cause 3) The lighting is dark. (Cause 4) An i…

100%1 / 308

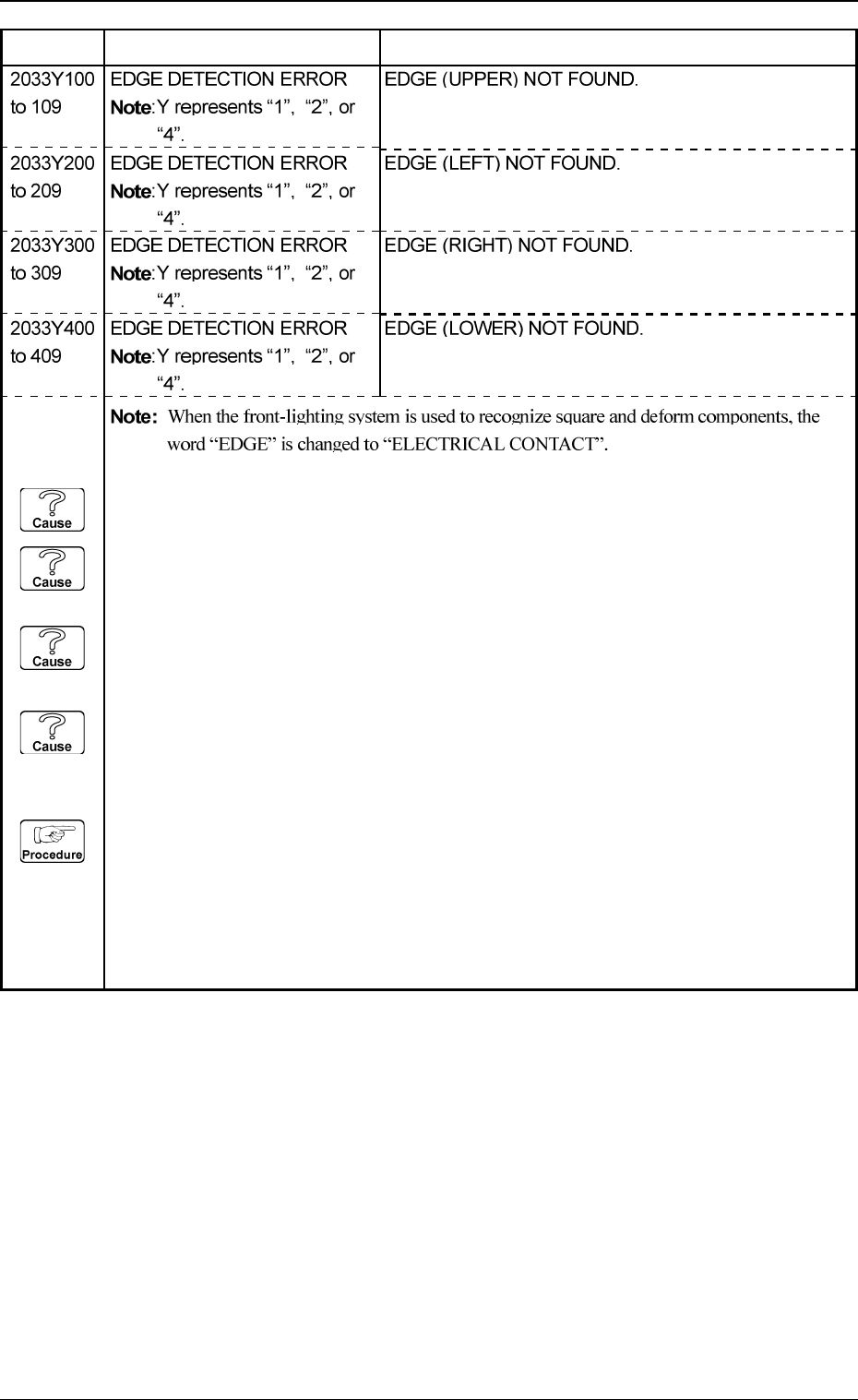

(Cause 1) An improper vacuum nozzle is selected for the component or vice versa.
(Cause 2) Wrong parameters (edge data) are set for the selected component in the component
library data.
(Cause 3) Improper parameters are set in the "DETECT X POSN" and "DETECT Y POSN" data
boxes.
(Cause 4) Dirt and dust, etc., have adhered to the nozzle diffusion plate and the head lighting unit
in the vicinity of the edges.
(Reset Procedure in the case of Causes 1, 2, 3 and 4)
Reset Procedure
(1) Check the selected component and the vacuum nozzle.
(2) Check if the feeder (B) offset data is correct.
(3) Check the edges of the selected component and the parameters set as “EDGE DATA” in the
component library data.
(4) If wrong parameters are set in the component library data, correct them.
5. Component Recognition Error Code and List of Error Messages
Error Code Display A Display B
0103-001 4-42-1 Tg0248-PM-ER
(Cause 1) The pick-up position has shifted from the specified one in the X direction.
(Cause 2) The tapered part of the vacuum nozzle end or the diffusion plate is stained.
(Cause 3) The lighting is dark.
(Cause 4) An improper parameter is set in the "DIRECTION" data box of the label "LEAD
DATA".
(Reset Procedure in the case of Causes 1, 2, 3 and 4)
Reset Procedure
(1) Check the component and the tape feeder.
(2) Clean the vacuum nozzle end or the diffusion plate.
(3) Dirt and dust, etc., have adhered to the nozzle diffusion plate and the head lighting unit in the
vicinity of the corners.
(4) Improper parameters are set in the "X" and "Y" data boxes of the label "MOLD SIZE".
5. Component Recognition Error Code and List of Error Messages
0103-003 4-43 Tg0248-PM-ER
Error Code Display A Display B
Component Vacuum Nozzle
Component
Vacuum Nozzle
Dirty Spots
(Cause 1) This is the device’s self-diagnostic message.
(Reset Procedure in the case of Cause 1)
Reset Procedure
(1) Press the [ZERO] button to return all the axes to their original positions.
(2) Re-start.
(3) If the device can’t be re-started, contact our service personnel.
(Cause 1) The pick-up position has shifted from the specified one in the X direction.
(Cause 2) The tapered part of the vacuum nozzle end or the diffusion plate is stained.
(Cause 3) Improper parameters are set in the "FORM", "X SIZE", and "Y SIZE" data boxes of
the label "CORNER DATA".
(Reset Procedure in the case of Causes 1, 2 and 3)
Reset Procedure
(1) Check the component and the tape feeder.
(2) Clean the vacuum nozzle end or the diffusion plate.
5. Component Recognition Error Code and List of Error Messages
0103-001 4-43-1
Error Code Display A Display B
Component Vacuum Nozzle
Component
Vacuum Nozzle
Dirty Spots
