0103-001 4-53-7 Tg0248-PM-ER
5. Component Recognition Error Code and List of Error Messages
Error Code Display A Display B
20672034 COMPONENT DETECTION
ERROR
THE LEAD-TO-LEAD DISTANCE AT BOTH ENDS OF
LEAD GROUP EXCEEDS THE TOLERANCE.
20672036 COMPONENT DETECTION
ERROR
LEAD GROUP NOT FOUND.
(Cause 1) The lead pitch is not suitable.
(When the lead pitch is different, this kind of error occurs more frequently on a compo-
nent with more leads because it has a bigger accumulated pitch error, compared with a
component with less leads.)
(Cause 2) The component thickness is not suitable.
(The lead-to-lead distances at both ends of the lead group become wider or narrower
because the entire image of the component looks larger or smaller than the actual size.)
(Cause 3) The camera magnification is not suitable.
(When four cameras are individually used to perform component recognition tests on
the component and this type of error occurs in only one camera, the camera magnifica-
tion may be wrong.)
(Reset Procedure in the case of Causes 1, 2 and 3)
Reset Procedure
(1) Press the [ZERO] button to return all the axes to their original positions.
(2) Re-start.
(3) If the device can’t be re-started, contact our service personnel.
Actual Component
Component Data
(Cause 1) No component is picked up.
(Cause 2) A different component (small component, etc.) is picked up.
(Cause 3) The lighting is not ON.
(Reset Procedure in the case of Causes 1, 2 and 3)
Reset Procedure
(1) Press the [ZERO] button to return all the axes to their original positions.
(2) Re-start.
(3) If the device can’t be re-started, contact our service personnel.

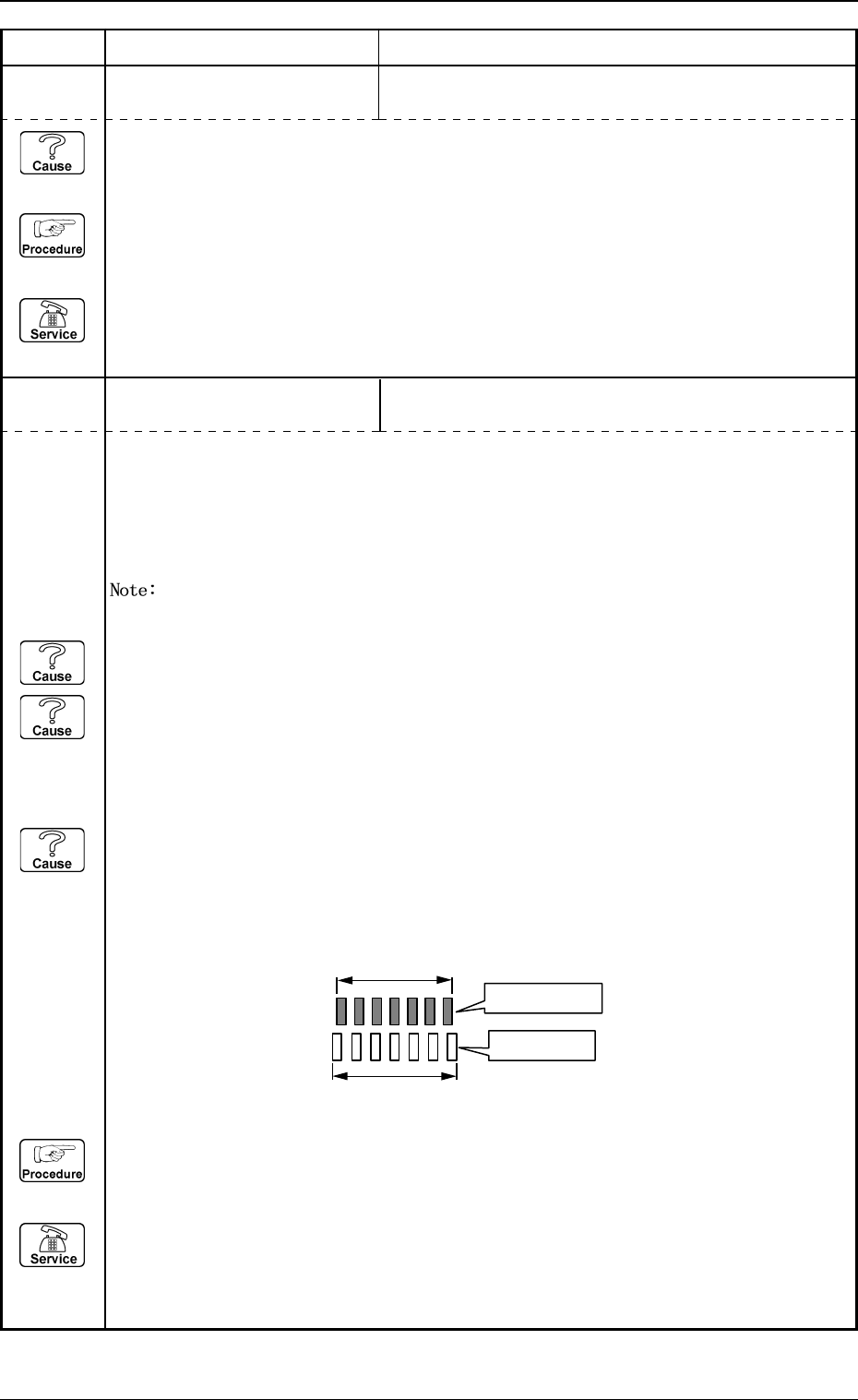

0103-001 4-53-8 Tg0248-PM-ER
5. Component Recognition Error Code and List of Error Messages
Error Code Display A Display B
20672037 COMPONENT DETECTION
ERROR
LEAD GROUP (LEAD LENGTH DIRECTION) NOT
FOUND.
20672038 COMPONENT DETECTION
ERROR
LEAD POSITION (LEAD ARRAY DIRECTION) WAS
OUT OF TOLERANCE.
(Cause 1) This is the device’s self-diagnostic message.
(Reset Procedure in the case of Cause 1)
Reset Procedure
(1) Press the [ZERO] button to return all the axes to their original positions.
(2) Re-start.
(3) If the device can’t be re-started, contact our service personnel.
When "AUTO" is set in the "RECOG DATA SET" data box, "MANUAL" in the "RECOG DATA"
data box + “ENBL (AUTO)” in the “LEAD POS (LATL DIR) DETN” data box, the tolerance is
automatically set in the "LEAD POS (LATL DIR) TOL" data box.
This error can be avoided by setting "MANUAL" in the "RECOG DATA SET" data box and
"DISABLE" in the "LEAD POS (LATL DIR) DETN" data box.
When these parameters are set, no bent lead is detected.
(Cause 1) There is a bent lead.
(Cause 2) The lead width is not suitable.
(When the lead width tolerance is automatically set and a parameter smaller than the
actual width is set as the lead width, a smaller parameter (tolerance decreased as much
as the reduction of the lead width) is also set.)
(Cause 3) The component thickness and the camera magnification are not suitable.
(When an image larger or smaller than the actual component size (component data) is
captured, the closer to both ends of the lead group the leads are located, the greater the
positional deviation becomes and such leads are detected as "bent ones".)
(Reset Procedure in the case of Causes 1, 2 and 3)
Reset Procedure
(1) Press the [ZERO] button to return all the axes to their original positions.
(2) Re-start.
(3) If the device can’t be re-started, contact our service personnel.
Actual Component
Component Data
0103-001 4-53-9 Tg0248-PM-ER
5. Component Recognition Error Code and List of Error Messages
Error Code Display A Display B
LEAD POSITION (LEAD LENGTH DIRECTION) WAS
OUT OF TOLERANCE.
20672041 COMPONENT DETECTION
ERROR
This error occurs when "MANUAL" is set in the "RECOG DATA SET" data box, "ENBL
(AUTO)" or "ENBL (MNL)" in the "LEAD POS (LONG DIR) DETN" data box, and the longitu-
dinal direction of the lead exceeds its tolerance.
When "ENBL (AUTO)" is set in the "LEAD POS (LONG DIR) DETN" data box, the tolerance is
automatically set.
(Cause 1) The lead end is longer than the component data or a shorter lead exists.
(Cause 2) The leads look blurred.
(There is an extremely dark lead compared with other leads.)
(Reset Procedure in the case of Causes 1 and 2)
Reset Procedure
(1) Press the [ZERO] button to return all the axes to their original positions.
(2) Re-start.
(3) If the device can’t be re-started, contact our service personnel.
