7. P .E.C. Recognition Error Code and List of Error Messages Shown below are the contents of error codes which might be issued in the P .E.C. recognition processing. 7. P .E.C. Recognition Error Code and List of Error Me…
0009-003 4-61 Tg0248-PM-ER
6. Nozzle Recognition Error Code and List of Error Messages
Error Code Display A Display B
30000041 NOZZLE RECOGNITION
ERROR
NOZZLE WAS NOT DETECTED.
(Cause 1) Is there any error in the jig nozzle installation?
Is there any error in the jig nozzle adjustment?
(Cause 2) Does the nozzle type data exceed the set range?
(Reset Procedure in the case of Causes 1 and 2)
Reset Procedure
(1) Install the jig nozzle correctly.
(2) Adjust the jig nozzle to be used correctly.
(3) Set the nozzle type data correctly.
30000051 NOZZLE RECOGNITION
ERROR
“NOZZLE SIZE X” EXCEEDS THE RANGE OF SET-
TING.
30000052 NOZZLE RECOGNITION
ERROR
“NOZZLE SIZE Y” EXCEEDS THE RANGE OF SET-
TING.
30000061 NOZZLE RECOGNITION
ERROR
“NOZZLE POS. (X)” EXCEEDS THE RANGE OF SET-
TING.
30XXXXXX NOZZLE RECOGNITION
except the ERROR
above-
described
codes
ETC.
30000062 NOZZLE RECOGNITION
ERROR
“NOZZLE POS. (Y)” EXCEEDS THE RANGE OF SET-
TING.
30000071 NOZZLE RECOGNITION
ERROR
NOZZLE WAS NOT DETECTED.
30000053 NOZZLE RECOGNITION
ERROR
“NOZZLE OUTER SIZE X” WAS MORE THAN TOLER-
ANCE.
30000054 NOZZLE RECOGNITION
ERROR
“NOZZLE OUTER SIZE Y” WAS MORE THAN TOLER-
ANCE.
30000055 NOZZLE RECOGNITION
ERROR
“NOZZLE OUTER SIZE X” WAS LESS THAN TOLER-
ANCE.
30000056 NOZZLE RECOGNITION
ERROR
“NOZZLE OUTER SIZE Y” WAS LESS THAN TOLER-
ANCE.
30010000 NOZZLE RECOGNITION
ERROR
POLARITY DETERMINATION AREA IS OUT OF VISUAL FIELD FOR
RECOGNITION BECAUSE OF IMPROPER COMPONENT HANDLING.

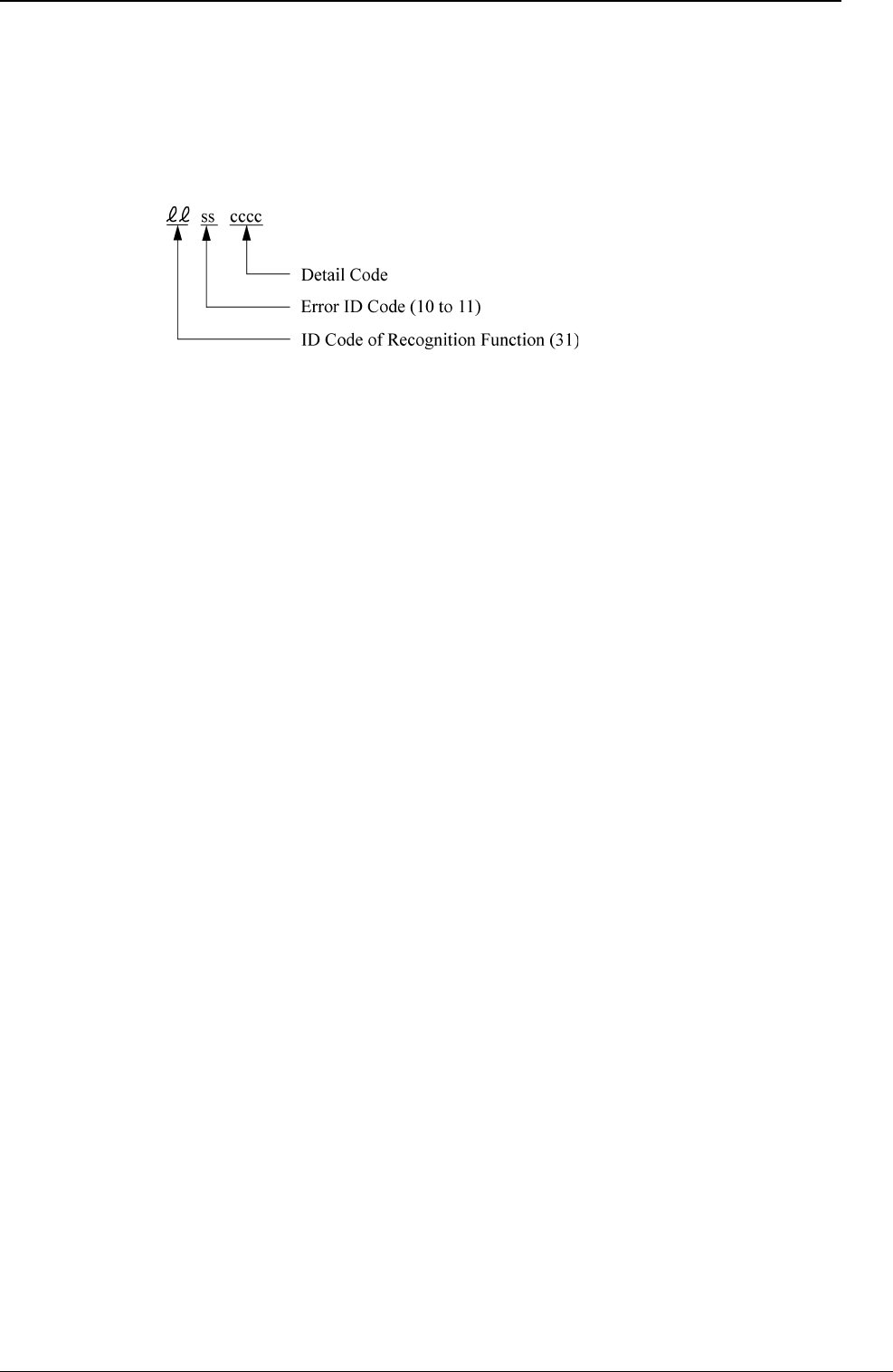

7. P.E.C. Recognition Error Code and List of Error
Messages
Shown below are the contents of error codes which might be issued in the
P.E.C. recognition processing.
7. P.E.C. Recognition Error Code and List of Error Messages
0005-002 4-62 Tg0248-PM-ER
0005-002 4-63 Tg0248-PM-ER
7. P.E.C. Recognition Error Code and List of Error Messages
Error Code Display A Display B
31100001 P.E.C. RECOGNITION SPECIFIED MARK WAS NOT FOUND IN WINDOW OF
RECOG. MONITOR.
IMAGE AROUND FIDUCIAL MARK WAS UNSTABLE.
31100005 P.E.C. RECOGNITION X-COORDINATE ERROR OF MEASURING POINT
WAS EXTENSIVE.
31100006 P.E.C. RECOGNITION Y-COORDINATE ERROR OF MEASURING POINT
WAS EXTENSIVE.
31100007 P.E.C. RECOGNITION CONTRAST BETWEEN MARK AND BACKGROUND IS
TOO LOW.
31109999 P.E.C. RECOGNITION RECOGNITION WAS ABORTED.
31110001 P.E.C. RECOGNITION
31100003 P.E.C. RECOGNITION ERROR OF MARK FIGURE SIMILITUDE WAS EXTEN-
SIVE.
31100004 P.E.C. RECOGNITION
ERROR OF MARK SIMILITUDE OR MARK SIZE WAS
EXTENSIVE.
SPECIFIED MARK WAS NOT FOUND IN WINDOW OF
RECOG. MONITOR.
(Cause 1) This is the device’s self-diagnostic message.
(Reset Procedure in the case of Cause 1)
Reset Procedure
(1) Press the [CLEAR ALARM] key and the buzzer stops sounding.
(2) Press the [ZERO] button to return all the axes to their original positions.
(3) Re-start.
(4) If the device can’t be re-started, contact our service personnel.
31XXXXXX P.E.C. RECOGNITION
except the
above-
described
codes
ETC.
31100002 P.E.C. RECOGNITION
