1 1. Camera Shutter T eaching Error Code and List of Error Messages Shown below are the contents of error codes which might be issued in the camera shutter teaching processing. 1 1. Camera Shutter T eaching Error Code an…

100%1 / 308
0005-002 4-69 Tg0248-PM-ER
10. Camera Gain & Level Teaching Error Code and List of Error Messages
Error Code Display A Display B
61010000 TEACH CAMERA GAIN/LEVEL
ERROR
THE TEACHING OPERATION DID NOT END WITHIN
THE SPECIFIED NUMBER OF TIME.
HEAD LIGHTING OFF.
61XXXXXX
TEACH CAMERA GAIN/LEVEL
except the ERROR
above-
described
codes
ETC.
61010001 TEACH CAMERA GAIN/LEVEL
ERROR
GAIN OR LEVEL EXCEEDS THE RANGE OF TUNING.61010002 TEACH CAMERA GAIN/LEVEL
ERROR
(Cause 1) This is the device’s self-diagnostic message.
(Reset Procedure in the case of Cause 1)
Reset Procedure
(1) Press the [CLEAR ALARM] key and the buzzer stops sounding.
(2) Press the [ZERO] button to return all the axes to their original positions.
(3) Re-start.
(4) If the device can’t be re-started, contact our service personnel.
11. Camera Shutter Teaching Error Code and List of
Error Messages
Shown below are the contents of error codes which might be issued in the
camera shutter teaching processing.

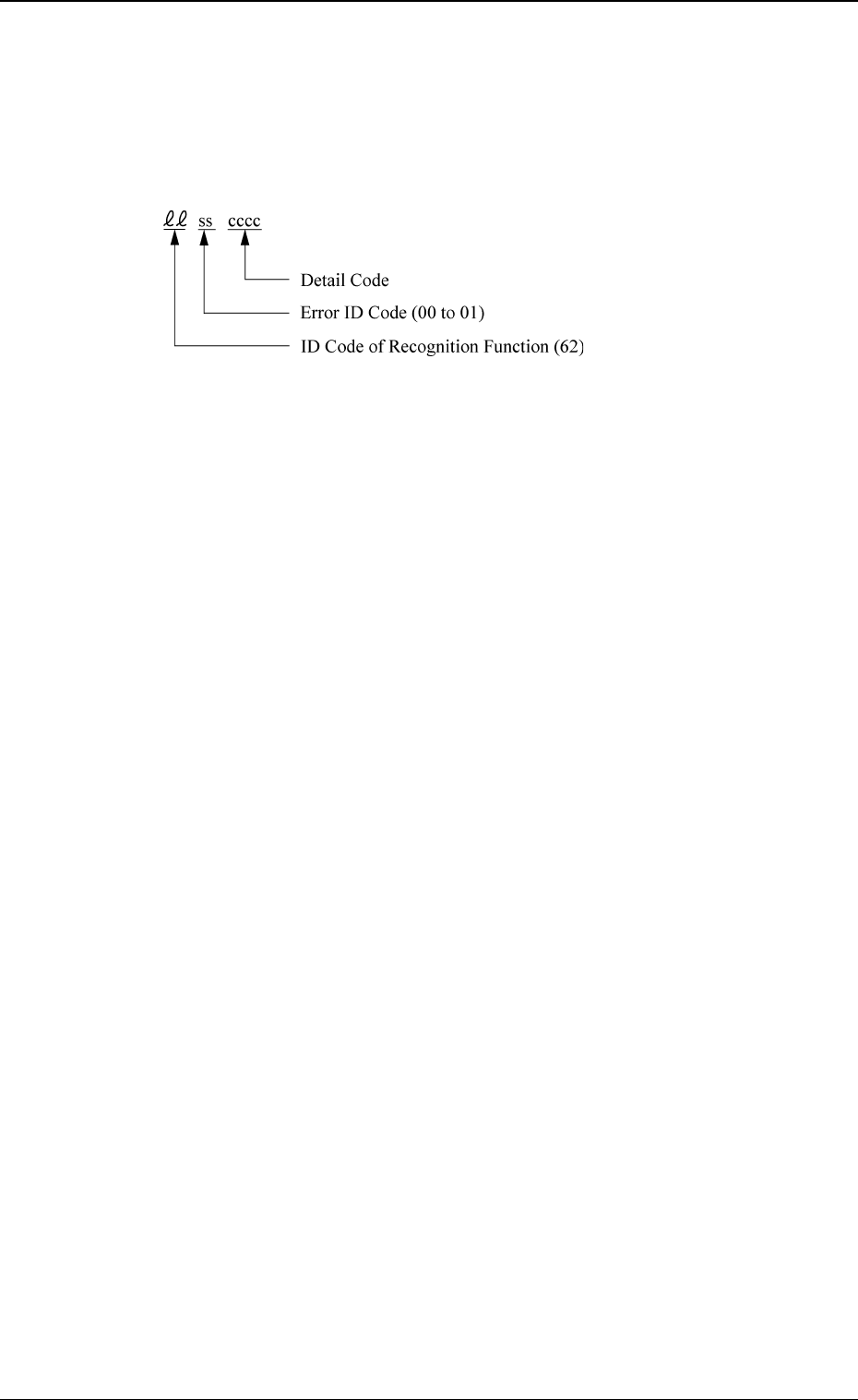

11. Camera Shutter Teaching Error Code and List of Error Messages
0005-002 4-70 Tg0248-PM-ER
0005-002 4-71 Tg0248-PM-ER
11. Camera Shutter Teaching Error Code and List of Error Messages
Error Code Display A Display B
62000000 CAMERA SHUTTER TEACH
ERROR
THE GRAY VALUE RESULTED AS TOO SMALL.
THE GRAY VALUE RESULTED AS TOO BIG.
62010001 CAMERA SHUTTER TEACH
ERROR
HEAD LIGHTING OFF.
62010002 CAMERA SHUTTER TEACH
ERROR
SHUTTER SPEED EXCEEDS THE RANGE OF TUN-
ING.
62009999 CAMERA SHUTTER TEACH
ERROR
THE TEACHING OPERATION ABORTED BECAUSE
OF CAMERA TROUBLE.
62010000 CAMERA SHUTTER TEACH
ERROR
THE TEACHING OPERATION DID NOT END WITHIN
THE SPECIFIED NUMBER OF TIME.
62XXXXXX
CAMERA SHUTTER
except the TEACH ERROR
above-
described
codes
ETC.
62000001 CAMERA SHUTTER TEACH
ERROR
(Cause 1) This is the device’s self-diagnostic message.
(Reset Procedure in the case of Cause 1)
Reset Procedure
(1) Press the [CLEAR ALARM] key and the buzzer stops sounding.
(2) Press the [ZERO] button to return all the axes to their original positions.
(3) Re-start.
(4) If the device can’t be re-started, contact our service personnel.
