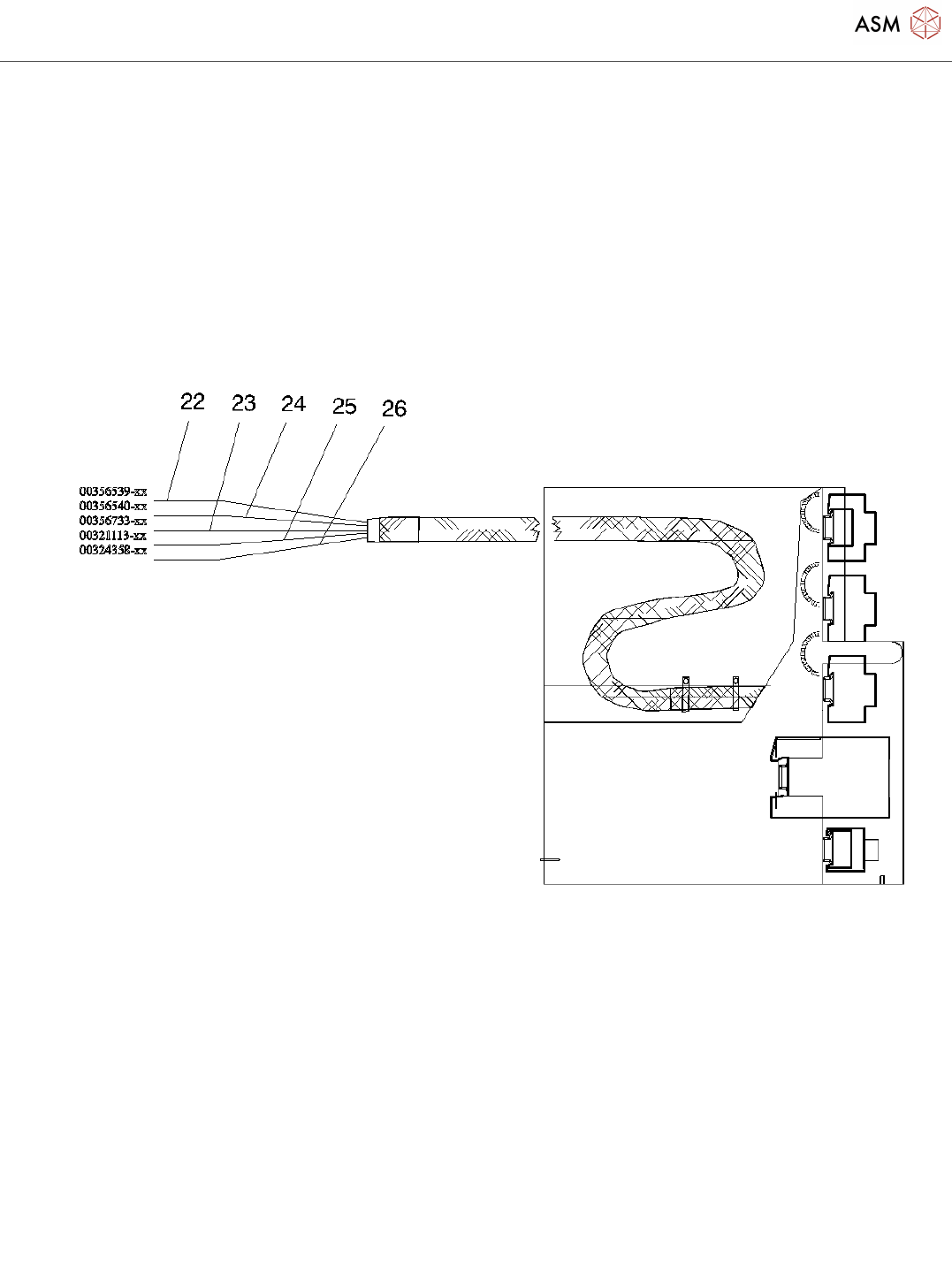

Cable trees
Page 28 / 35 23.11.2021
Cable trees
Page 29 / 35 23.11.2021
Pos. Item no. Description Part marking
65 00321575-02 CABLE: MAIN ERROR DISPLAY
159 00342916-01 POWER CABLE: POWER
164 00321428-01 CABLE: CONTROL UNIT-INTERFACE
(LEFT)
165 00322067-02 CABLE: TERMINAL BOARD -
INTERFACE LEFT SIDE
166 00322071-02 CABLE: INTERFACE - TAPE CUTTER
LEFT SIDE
167 00322069-01 CABLE: TERMINAL BOARD -
INTERFACE LEFT SIDE
171 00321429-01 CABLE: CONTROL UNIT-INTERFACE
(RIGHT)
172 00322068-02 CABLE: TERMINAL BOARD -
INTERFACE RIGHT SIDE
173 00322072-02 CABLE: INTERFACE - TAPE CUTTER
174 00322070-01 CABLE: TERMINAL BOARD -
INTERFACE RIGHT SIDE
178 00322108-01 CABLE: CONTROL UNIT-INTERFACE
(RIGHT)
179 00322110-02 CABLE: TERMINAL BOARD -
INTERFACE
180 00322112-01 CABLE: TERMINAL BOARD -
INTERFACE
185 00305815-03 CABLE: COVER SWITCH INPUT
188 00305818-03 CABLE: COVER SWITCH OUTPUT
200 00321539-01 CABLE: MOTOR DR-AXIS
SP/IC1-HEAD
201 00321541-03 CABLE: MOTOR/TACHO Z-AXIS
SP/IC1-HEAD
202 00321544-03 CABLE: MOTOR/TACHO DP1-AXIS
W1/W2
203 00321547-03 CABLE: CRASH-BEROS
204 00321796-03 CABLE MOTOR/TACHO Z-AXIS IC2
80F4
205 00321797-03 CABLE MOTOR/TACHO DR-AXIS IC2
80F4
206 00322256-01 CABLE FOR PORTAL SPARE PART
207 00322257-01 CABLE FOR PORTAL HEAD AXIS SPARE PART
208 00322258-01 CABLE FOR PORTAL CAN BUS SPARE PART
209 00322259-01 CABLE FOR PORTAL DP1-AXIS SPARE PART
Cable trees
Page 30 / 35 23.11.2021
Pos. Item no. Description Part marking
210 00322261-01 CABLE FOR PORTAL STAR/Z-AXIS SPARE PART
211 00322262-01 CABLE FOR PORTAL X-MOTOR SPARE PART
212 00322264-01 CABLE FOR PORTAL X-MOTOR/Y-
TRACK
SPARE PART
213 00322265-02 GANTRY CABLE IC2-HEAD SPARE PART
214 00344215-01 CABLE: ICOS-VIDEO CABLE S23 Spare
215 00344217-01 CABLE: CONTROL UNIT-
CONVERSION BOARD PORTAL S23
216 00345481-01 CABLE: CAN-BUS (PORTAL 1) F5HM
217 00344224-01 CABLE: CRASH-SIGN.1
(TERM.-CONVERS.) S23
218 00344226-01 CABLE: VOLTAGE STAR-MOTOR
PORTAL 1 S23
219 00344250-01 CABLE: TRACK Y-AXIS S23
220 00344251-01 CABLE: TRACK X-AXIS S23
221 00344252-01 CABLE: TRACK SIGNAL
222 00344253-01 CABLE: TRACK SIGNAL
223 00344254-01 CABLE: TRACK SIGNALS DP1-AXIS
S23
224 00344260-01 CABLE: LIGHT PORTAL-1 S23 Spare Part
225 00355053-01 CABLE: FLASH-MODE F5HM
226 00345506-01 CABLE: TRACK SIGNAL Z-AXIS IC2
F5HM
227 00345507-01 CABLE: TRACK SIGNAL DR-AXIS IC2
F5HM
228 00346191-01 PORTAL CABLE (X-MOTOR-F5-HM)
SHIELD
229 00346381-01 CABLE TACHO / CONTROL X-MOTOR
F5-HM
230 00346382-01 CONNECTION CABLE X-MOTOR
F5-HM
41 00321578-04 CABLE: LIMIT SWITCH X-AXIS SPARE PART
44 00321577-04 CABLE: LIMIT SWITCH X-AXIS SPARE PART
160 00322262-01 CABLE FOR PORTAL X-MOTOR SPARE PART
161 00322264-01 CABLE FOR PORTAL X-MOTOR/Y-
TRACK
SPARE PART
226 00351063-01 CABLE:COMP.ILLUMI.MODULAR SPARE PART
227 00322256-01 CABLE FOR PORTAL SPARE PART
228 00322257-01 CABLE FOR PORTAL HEAD AXIS SPARE PART
