2 4 Y -axis Moving-axis KV8-1109 31 37 46 13 35 61 5 3 15 59 28 21 36 36 23 52 52 38 39 56 20 40 32 71 49 41 42 29 45 30 34 60 10 9 55 1 1 4 57 68 68 22 18 31 49 33 41 26 27 54 38 39 71 25 58 16 50 17 50 19 1 1 12 12 7 8…
1
4
X-axis
4 Moving-axis
KV8-1109
19
47
34
33
15
66
10
64
4
14
71
28
28
54
27
26
11
63
45
36
44
16
17
25
58
60
18
29
22
23
56
5
5
1
68
68
44
45
43
13
59
65
9
9
6
5
31
35
30
24
24
38
37
42
40
41
40
12
41
46
29
66
23
56
50
55
48
51
49
66
50
48
49
51
53
8
7
39
62
61
67
59
56
21
20
57
59
35
32
67
52
43
OLD
70
70
69
3
2
14
27
26
OLD
18
73
73
72
72
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KV7-M2211-03X FRAME X AXIS 1 (2008/4/8) OK /
2 KV7-M2213-02X PLATE A,X AXIS 1 /
3 KV7-M2214-02X PLATE B,X AXIS 1 /
4 KM0-M2220-00X COUPLING, X-AXIS 1 /
5 KV7-M2231-00X SPACER R.NUT 3 /
6 KV7-M2233-00X SPACER R2,NUT 1 (2003/2/11) OK /
7 KV8-M2236-00X PLATE A 1 /
8 KV8-M2237-00X PLATE B 1 /
9 KV7-M2239-00X BRACKET 1 2 /
10 KM0-M2241-01X HOLDER, MOTOR 1 (2008/4/8) OK /
11 KV7-M2242-01X HOLDER, BRG. X AXIS (2008/4/8) OK /
12 90990-25J005 BEARING 1 (2007/12/4) OK /
13 KV7-M2261-01X HOLDER, HEAD 1 (2002/4/25) OK /
14-1 KV7-M2271-01X SCREW BALL X AXIS 1 1999/11/3 Set /
14-2 KV7-M2271-02X SCREW BALL X AXIS 1 with/K1 seal (2002/6/6) Set /
15 90K56-8717EX AC SERVO MOTOR 1 (2003/4/18) OK B
16 KGB-M220A-00X SENSOR , ORG 1 L=600 (2002/11/12) OK B
17 KGB-M220B-00X SENSOR , OT(L=600) 1 L=600 (2002/11/12) OK B
18 KV7-M2276-S0X X-AXIS GUIDE SET 1 with/K1 seal (2002/6/6) Set A
19 KV7-M2267-A1X CABLE DUCT 1 (2004/7/12) OK B
20 K94-M220A-00X TAPE X-AXIS 1 /
21 K94-M220A-10X TAPE X-AXIS 1 /
22 KV7-M2282-00X DOG. ORG 1 /
23 KV7-M2283-00X DOG. 2ND LIMIT 2 /
24 KV7-M226B-00X PLATE 2 /
25 KV7-M2291-00X BRACKET, SENSOR 1 /
26 KGA-M2651-10X DAMPER 14 ASSY 1 /
26-1 KGA-M2651-11X DAMPER 14 ASSY 1 (2002/6/6) Set /
27 KGA-M2651-60X DAMPER 120 ASSY 1 /
27-1 KGA-M2651-61X DAMPER 105 ASSY 1 (2002/6/6) Set /
28 90990-01J023 BOLT,HEX.SOCKET HEAD 24 (2007/10/29) OK /
29 90990-01J024 BOLT,HEX.SOCKET HEAD 16 (2007/10/29) OK /
30 KV7-M226A-00X COVER CABLE 1 /
31 KV7-M2268-00X BRACKET 1, TAPE 1 /
32 KV7-M2269-00X BRACKET 2, TAPE 1 /
33 KV7-M220A-01X TAPE, X DUCT 1 /
34 KV7-M220B-00X TAPE 2, X DUCT 1 /
35 KV7-M2266-00X PLATE.NUT 2 /
36 KV7-M2240-00X SLEEVE.BRG. 1 /
37 KV7-M2243-00X HOUSING, BRG. X 1 /
38 KV7-M2244-00X COVER, BRG. HOUSING 1 /
39 KV7-M2246-00X COIL SPRING M 6 /
40 KV7-M2647-00X OIL SEAL 2 /
41 90990-41J100 COLLAR 3 (2008/4/11) OK /
42 KG2-M9173-00X LOCK NUT 1 /
43 90990-01J030 BOLT,HEX.SOCKET HEAD 16 (2007/10/29) OK /
44 KV7-M2256-00X GRIP 2 /
45 KV7-M2257-00X SPACER GRIP 2 /
46 KV7-M220C-00X TAPE 3, X DUCT 1 /
47 KV7-M221A-A0X COVER, DUCT ASSY 1 /
48 KV7-M2295-01X BRACKET, PIN 2 /
49 KV7-M2296-00X BRACKET, SCREW 2 /
50 KV7-M2297-00X TAPER PIN 4 /
51 KV7-M2298-00X NYLOCK SET SCREW 6 /
52 KM0-M2252-00X STOPPER 1 /
53 99480-06014 PIN, PARALLEL 2 /
54 KV7-M2604-00X SUPPORT UNIT 1 1999/11/3 SET /
55 90990-38J001 WASHER, SPRING 16 (2008/4/15) OK /
56 91317-03006 BOLT HEX. SOCKET HEAD 6 /
57 91317-04006 BOLT HEX. SOCKET HEAD 4 /
58 91317-04008 BOLT HEX. SOCKET HEAD 12 /
59 91317-04010 BOLT HEX.SOCKET HEAD 4 (2002/2/28) OK /
60 91317-04016 BOLT HEX.SOCKET HEAD 30 (2005/2/7) OK /
61 91317-04030 BOLT HEX. SOCKET HEAD 6 /
62 91317-05014 BOLT HEX. SOCKET HEAD 4 /
63 91317-05020 BOLT HEX. SOCKET HEAD 4 /
64 91317-05035 BOLT HEX. SOCKET HEAD 4 /
65 91317-06012 BOLT HEX. SOCKET HEAD 8 /
66 91317-06018 BOLT HEX.SOCKET HEAD 8 (2002/7/19) OK /
67 98902-03006 SCREW BINDING HEAD 4 (2007/7/9) OK /
68 KV7-M2213-S1X PLATE X AXIS SET 1 (2008/4/8) OK /
69 KV7-M2247-00X BLOCK,STOPPER X 1 /
70 KV7-M2248-00X DAMPER 1 2 /
71 KV7-M2271-A0X X AXIS B.S.SUB ASSY 1 (2005/8/2) A
72 92907-03200 WASHER, PLAIN 6 /
73 92907-04200 WASHER, PLAIN 4 /
2
4
Y-axis
Moving-axis
KV8-1109
31
37
46
13
35
61
5
3
15
59
28
21
36
36
23
52
52
38
39
56
20
40
32
71
49
41
42
29
45
30
34
60
10
9
55
11
4
57
68
68
22
18
31
49
33
41
26
27
54
38
39
71
25
58
16
50
17
50
19
11
12
12
7
8
24
51
5
43
43
40
53
37
46
13
35
5
3
15
40
9
11
14
4
11
12
12
7
8
5
40
53
61
56
57
59
61
55
57
68
57
68
10
62
62
47
47
14
69
70
60
69
70
60
64
63
63
64
66
65
65
66
OLD
OLD
2
1
OLD
48
OLD
72
72
36
36
3
14
13
67
3
14
13
67
OLD
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KV7-M2611-02X FRAME R,Y AXIS 1 (2003/2/17) OK /
2 KV7-M2612-02X FRAME L,Y AXIS 1 (2006/7/25) OK /
3 KV7-M2671-02X SCREW BALL Y AXIS 2 (2001/6/28) OK /
3-1 KV7-M2671-03X SCREW BALL Y AXIS 2 with K1 seal (2002/6/6) Set /
4 KG2-M9173-00X LOCK NUT 2 /
5 KV7-M264A-01X HOLDER SET, Y AXIS 2 /
7 KV7-M2243-00X HOUSING BRG. X 2 /
8 KV7-M2244-00X COVER BRG. HOUSING 2 /
9 90990-26J014 BEARING 2 (2008/4/24) OK /
10 KV7-M2646-00X COIL SPRING M 12 /
11 KV7-M2647-00X OIL SEAL 4 /
12 90990-41J100 COLLAR 6 (2008/4/11) OK /
13 KGA-M2651-50X DAMPER 54 ASSY 2 /
13-1 KGA-M2651-51X DAMPER 32 ASSY 2 (2002/7/16) Set /
14 KGA-M2651-20X DAMPER 27 ASSY 2 /
14-1 KGA-M2649-21X DAMPER 8 2 (2002/7/23) Set /
15 KV7-M2666-01X HOLDER NUT Y AXIS 2 /
16 KV7-M2682-01X DOG ORG 1 /
17 KV7-M2683-01X DOG 2ND LIMIT 2 /
18 KV7-M2691-02X BRACKET,SENSOR 1 (2004/9/1) OK /
19 KV7-M2694-00X BRACKET A GUIDE 1 /
20 KV7-M2695-01X BRACKET B GUIDE 1 /
21 KGA-M26F1-00X FRAME 1 1 (2000/12/26) OK /
22 KGA-M26F2-00X FRAME 2 1 (2000/12/26) OK /
23 KV7-M26F3-00X FRAME 3 1 /
24 KV7-M26F4-00X DUCT HARNESS 1 /
25 KV7-M26F5-01X BRACKET HARNESS 1 /
26 KGA-M260A-00X SENSOR,ORG 1 L=300 (2002/11/12) OK B
27 KGA-M260B-00X SENSOR,OT 1 L=300 (2002/11/12) OK B
28 KV7-M260A-00X TAPE Y AXIS 1 /
29 KV7-M260B-00X TAPE Y DUCT 1 /
30 KV7-M260C-00X TAPE 2 Y DUCT 1 /
31 KV7-M2667-00X PLATE 2 /
32 KV7-M2668-00X BRACKET 1, TAPE Y 1 /
33 KV7-M2669-00X BRACKET 2, TAPE Y 1 /
34 KV7-M2678-00X GUIDE, CABLE Y 1 B
35 90K56-8A174Y AC SERVO MOTOR 2 (2000/8/28) OK B
36 KV7-M2676-S2X Y-AXIS GUIDE SET 1 with K1 seal (2002/6/6) Set A
37 KM5-M2611-00X COUPLING,Y-AXIS 2 LCD (2003/2/11) OK /
38 90990-01J028 BOLT,HEX.SOCKET HEAD 20 (2007/10/29) OK /
39 90201-124G9 WASHER,PLAIN 20 (1999/9/28) OK /
40 90990-01J029 BOLT,HEX.SOCKET HEAD 16 (2007/10/29) OK /
41 KV7-M2698-00X PLATE 1, CLAMP 2 /
42 KV7-M2699-00X PLATE 2, CLAMP 1 /
43 90990-01J030 BOLT,HEX.SOCKET HEAD 40 (2007/10/29) OK /
45 KV7-M260D-00X TAPE 3 Y DUCT 1 /
46 KV7-M2604-00X SUPPORT UNIT 2 1999/11/3 SET /
47 90990-01J023 BOLT,HEX.SOCKET HEAD 24 (2007/10/29) OK /
48 KV8-M2611-00X COUPLING, Y-AXIS 1 LCD /
49 98902-03004 SCREW BINDING HEAD 4 (2007/7/19) OK /
50 98902-04006 SCREW BINDING HEAD 6 (2006/1/9) OK /
51 90990-12J001 SCREW BIN.HEAD W/W 6 (2002/9/11) OK /
52 98902-05010 SCREW BINDING HEAD 4 (2006/1/9) OK /
53 91312-04008 BOLT HEX.SOCKET HEAD 10 (2006/1/16) OK /
55 91312-04010 BOLT HEX.SOCKET HEAD 12 (2006/1/16) OK /
56 91317-04014 BOLT HEX. SOCKET HEAD 8 /
57 91317-04030 BOLT HEX. SOCKET HEAD 12 /
58 91317-05010 BOLT HEX. SOCKET HEAD 2 /
59 91317-05018 BOLT HEX. SOCKET HEAD 8 /
60 91312-06010 BOLT HEX.SOCKET HEAD 28 (2006/1/26) OK /
61 91317-06018 BOLT HEX. SOCKET HEAD 16 /
62 90990-28J010 WASHER PLAIN 2 (2007/12/7) OK /
63 KV7-M2651-00X DAMPER,STOPPER 4 /
64 KV7-M2652-00X BRACKET,STOPPER Y 4 /
65 KV7-M2653-00X PIN,PARALLEL 4 /
66 97704-40012 SRW TRUSS HEAD TAP'G 4 /
67 KM8-M2647-00X GREASE NIPPLE 2 /
68 92907-04200 WASHER PLAIN 12 /
69 92903-06200 WASHER PLAIN 20 /
70 90172-00J060 WASHER EXTL.TOOTHED 20 (2008/4/14) OK /
71 KV7-M2611-S0X FRAME,Y AXIS SET 1 (2007/2/8) /
72 KV7-M2671-C0X Y-AXIS B.S. SUB ASSY 2 A
72-1 KV7-M2671-B0X Y-AXIS B.S. SUB ASSY 2 with K1 seal (2002/6/6) NG A
1
5

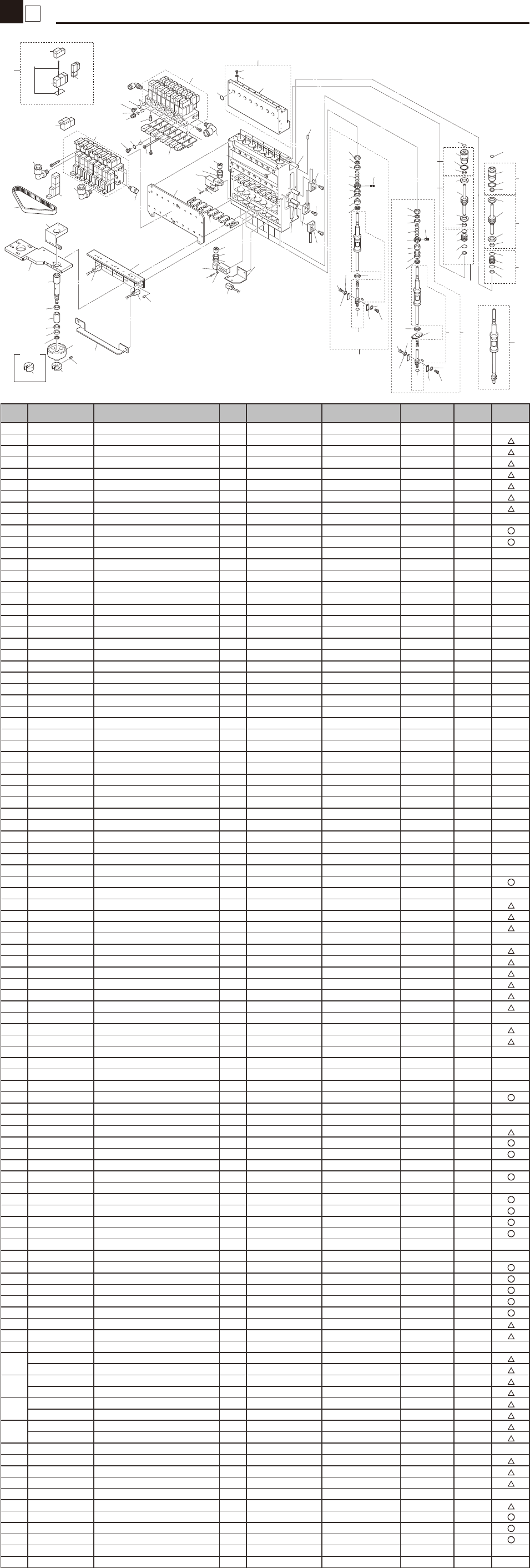

Head (ST)
5 Head
KV8-1109
3
53
57
86
85
66
62
84
60
44
31
37
50
63
46
45
33
53
52
54
55
32
43
41
42
42
78
58
35
36
59
56
38
39
40
29
51
65
67
65
34
1
5
8
4
3
53
2
4
6
8
7
49
49
47
48
48
8
6
8
7
49
49
47
27
26
25
23
24
21
20
22
19
9
11
11
12
12
13
13
10
27
26
25
23
24
21
20
22
18
9
11
11
12
12
13
92
92
93
94
87
88
89
89
90
90
13
28
10
69
64
97
71
98, 99
68
91
75
72
74
71
73
72
74
70
61
77
77
95
100
101
31
52
54
92
30
30
OLD
83
79
81
80
82
96
100
101
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KV8-M7101-00X HOUSING HEAD 1 /
2 KV8-M7103-50X PLUG 2 A
3 90200-01J125 O-RING 1 S12.5 (2001/11/22) OK A
4 90990-22J003 PACKING 1 MYR-6 (2002/1/21) OK E
5 KV8-M7103-10X PLUG 4 A
6 KV8-M7104-00X PISTON 8 A
7 90990-22J006 PACKING 1 LO43165 (2002/1/21) OK E
8 90990-22J002 PACKING 2 MYA-10A (2002/1/21) OK E
9 KV8-M71RJ-00X COLLAR,BRG. 4 /
10 90990-17J003 O-RING 4 (2001/11/22) OK A
11 KG7-M7137-A0X LEAF SPRING 8 E
12 90200-08J024 SCREW 8 (2008/12/9) OK /
13 90990-28J002 WASHER PLAIN 2 (2003/3/28) OK /
18 KV8-M7109-00X COLLAR 1,HEAD 4 /
19 KV8-M7110-00X COLLAR 2,HEAD 4 /
20 90933-03J128 BEARING 2 MR128ZZS (2001/7/6) OK /
21 90933-03J128 BEARING 2 MR128ZZS (2001/7/6) OK /
22 KM1-M7109-00X PULLEY 8 /
23 KV8-M7154-00X SPG.RETURN 4 /
24 KV8-M7108-00X NUT 8 /
25 90933-02J604 BEARING 1 604ZZ /
26 90440-01J030 CIRCLIP 8 (2001/12/28) OK /
27 KU1-M7152-00X WASHER 1 THURUST 8 /
28 KV8-M71R7-50X PLATE,BEARING 4 /
29 KV8-M7111-00X PULLY,POST 1 /
30 KV8-M7113-01X RING,DOG 1 Y3 (2000/1/24) NG /
31 KV8-M7115-00X SHAFT 1,TENSION 2 /
32 KV8-M7116-00X PULLY 2 1 /
33 KV8-M7117-00X BLOCK,ADJUST 1 /
34 KV8-M7119-00X BLOCK,ADJUST 1 /
35 KV8-M7124-00X PLATE,R SENSOR 1 /
36 KV8-M7131-01X BRACKET,Z SENSOR 1 (2001/1/16) OK /
37 KV8-M7166-00X PLATE,VALVE 1 /
38 KV8-M71V4-00X BRACKET,MOTOR 1 /
39 KV8-M71V5-00X HOLDER,PULLEY 1 /
40 KV8-M71Y1-00X COLLAR 1,PULLEY 1 /
41 KV8-M71Y2-00X COLLAR 2,PULLEY 1 /
42 KV8-M71Y3-00X BEARING 2 /
43 99009-10800 CIRCLIP 1 ISTW-10 /
44 KV8-M71Y9-50X BODY,BRACKET 1 /
45 90990-22J005 PACKING 8 (2002/2/1) OK A
46 91317-05006 BOLT HEX.SOCKET HEAD 8 (2002/1/8) OK /
47 KM1-M7105-00X PLUG 2 8 A
48 90990-22J003 PACKING 1 MYR-6 (2002/1/21) OK E
49 90200-01J125 O-RING 2 S12.5 (2001/11/22) OK A
50 KM1-M7112-01X STOPPER 1 /
51 KM1-M7138-00X BELT HEAD 2 B
52 90933-03J128 BRG 2 MF128ZZS (2001/7/6) OK A
53 90990-17J007 0-RING 12 5X1.0 (2001/12/25) OK A
54 90933-03J128 BEARING 2 MR128ZZS (2001/7/6) OK A
55 KV8-M653F-A0X SENSOR,3 4 E2S-Q22 B
56 KV8-M653G-A0X SENSOR,3 4 E2S-Q22 B
57 KV8-M7160-00X SENSOR,H.(L=430) 3 SPARE /
57 KV8-M7160-02X SENSOR,H.(L=430) 3 SPARE (2005/7/21) OK B
58 KV7-M653F-A0X SENSOR,HEAD 1 R ORG (2003/1/6) OK B
59 90990-20J001 PIN DOWEL 6 4X6 (2002/1/9) OK /
60 99480-04008 PIN,PARALLEL 8 X1 (2000/10/31) OK /
61 91317-03055 BOLT HEX SOCKET HEAD 7 M3X55 (2003/7/15) OK /
62 90115-02J008 BOLT HEX.SOCKET HEAD 8 (2002/8/21) /
63 $KM-05 MUFFLER 6 A
64 $SLH8-01 JOINT 2 /
65 $SLH6-01 JOINT 2 /
66 90990-22J001 PACKING 16 (2002/1/21) OK E
67 KV8-M7162-00X SOLENOID VALVE 1 UNIT C
68 KV8-M7163-01X EJECTER,RESIN X1 (1999/10/28) OK C
69 KV8-M71VB-00X COVER,SENSOR 1 /
70 KM1-M4592-13X VAC SENSOR BOARD ASSY 8 (2005/4/19) OK A
71 KM5-M7174-F0X FILTER CAP 2 /
72 90990-17J008 O-RING 2 (2001/11/22) OK A
73 90990-17J010 O-RING 6 (2001/12/6) OK A
74 K46-M8527-C0X FILTER 8 A
75 KM5-M7174-G0X FILTER CAP 6 A
77 92A08-03303 SET SCREW 2 M3X3 (2001/8/30) /
78 92A08-04305 SET SCREW 24 M4X5 /
79 KM5-M7174-A2X EJECTOR UNIT 8 No.80+No.81+UNIT C
80 KM1-M7163-21X VALVE 8 BLOW C
81 KM1-M7163-30X VALVE 8 OPERATE C
82 KV8-M7162-10X VALVE 8 UP / DOWN C
83 KV8-M7162-20X VALVE 8 SLOW C
84 KV8-M7160-A2X SENSOR,H. 1 N-UP (2005/7/21) OK B
85 KV8-M7160-B2X SENSOR,H. 1 N-DOWN (2005/7/21) OK B
86 90990-41J066 COLLAR 12 (2008/4/17) OK /
87
KV8-M7103-B0X PLUG ASSY 4 E
KGB-M8C01-10X PLUG ASSY SET 4 1 4 SET of parts numbers (2013/4/9) OK E
88
KV8-M7103-C0X PLUG ASSY 4 E
KGB-M8C01-20X PLUG ASSY SET 4 S 1 4 SET of parts numbers (2013/4/9) OK E
89
KV8-M7104-A0X PISTON ASSY 8 E
KGB-M8C00-00X PISTON ASSY SET 8 1 8 SET of parts numbers (2013/4/9) OK E
90
KM1-M7105-A0X PLUG 2 ASSY 8 E
KGB-M8C02-00X PLUG ASSY 2 SET 8 1 8 SET of parts numbers (2013/4/9) OK E
91 KV8-M71Y9-B0X BODY,BRACKET ASSY 1 /
92 KV8-M71S0-50X S.T.D SHAFT 3 SPARE 1 C
93 KV8-M712S-A0X S.T.D SHAFT 1 SPARE 1 C
94 KV8-M713S-A0X S.T.D SHAFT 2 SPARE 1 C
95 KM5-M7174-H0X SPACER 8 /
96 KGB-M7163-B0X EJECTOR 8 SPARE (2008/12/20) C
97 90200-10J030 O-RING 1 (2003/5/9) OK A
98 KM5-M7174-70X PACKING SET 1 2 both sides E
99 KM5-M7174-80X PACKING SET 2 6 middle E
100 91317-03014 BOLT HEX.SOCKET HEAD 4 /
101 92907-03200 WASHER PLAIN 4 /
