2 6 Nozzle (ST) Nozzle KV8-080422 4 5 1 2 3 6 T ype71A T ype72A T ype73A T ype76A T ype74A 7 T ype79A/89A No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level 1 KV8-M7710-A1X NOZZLE 71A/81A ASSY 1 …
1
6
Nozzle Changer
6 Nozzle
KV8-1109
10
8
10
13
12
15
13
9
14
7
11
18
1
2
3
4
23
5
6
6
19
21
20
24
24
25
17
16
26
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KV8-M9601-00X HOLDER ANC. 1 /
2 KV8-M9602-00X PLATE,CLAMP 1 /
3 KM1-M9603-01X PLATE,JOINT CYL. 1 /
4 KV8-M9604-00X JOINT,CYL. 1 (1999/5/12) OK /
5 KM1-M9605-03X CYLINDER,CLAMP 1 (2001/7/3) OK B
6 KV8-M9606-00X GUIDE,PLATE CLMP 2 (1999/5/12) OK /
7-1 KM1-M9607-01X PLATE,HOLDER 1 Black /
7-2 KM1-M9607-02X PLATE,HOLDER 1 Silver (2008/10/30) NG /
8-1 KM1-M9608-01X PLATE,GUIDE 1 Black /
8-2 KM1-M9608-02X PLATE,GUIDE 1 Silver (2008/10/30) NG /
9-1 KM1-M9609-01X PLATE,BASE 1 Black /
9-2 KM1-M9609-02X PLATE,BASE 1 Silver (2008/10/30) NG /
10 KM1-M9610-00X GUIDE 2 /
11 KM1-M9611-03X CYLINDER,U/D 1 (2001/7/3) OK B
12 KM1-M9612-00X JOINT,CYL.U/D 1 /
13 KM1-M9613-01X PLATE,GUIDE STOP 2 /
14 KV8-M9614-00X BASE,ANC 1 (1999/5/12) OK /
15 KM1-M9615-00X ROD,ADJUST 1 /
16 90990-20J001 PIN DOWEL 4 (2002/1/9) OK /
17 90990-20J002 PIN DOWEL 4 (2002/1/9) OK /
18 KH5-M655A-A1X SENSOR,1-1 14 (2000/4/19) OK /
19 90990-19J004 NEEDLE PIN 28 (2001/12/25) OK /
20 KG2-M8582-40X VALVE 1 B
21 KV8-M9621-00X BASE,NOZZLE 1 /
23 KH5-M655A-02X FIBER 1 SPARE C
24 $SC4-M5A SPEED CONTROLLER 4 /
25 K40-M7133-00X DAMPER 3 2 (2000/7/21) E
26
KV8-M9616-50X LABEL,A.N.C. 1 ST /
KV8-M9616-00X LABEL,A.N.C. 1 FNC /
2
6

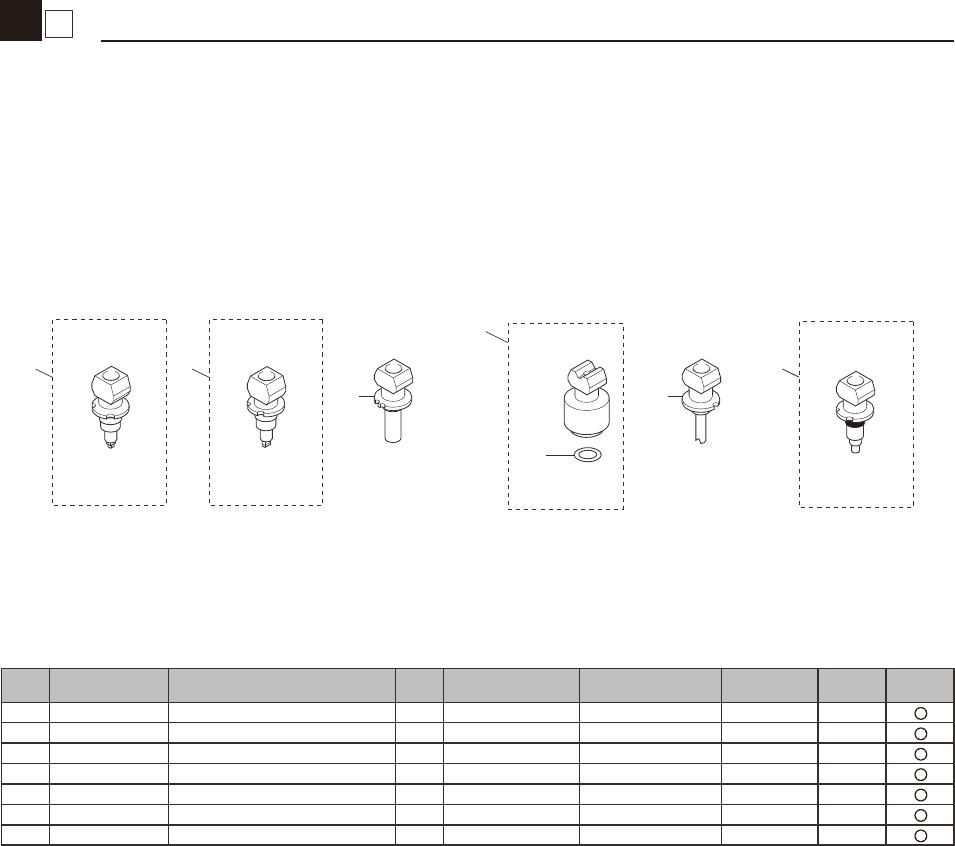

Nozzle (ST)
Nozzle
KV8-080422
4
5
1 2
3
6
Type71A Type72A Type73A Type76AType74A
7
Type79A/89A
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KV8-M7710-A1X NOZZLE 71A/81A ASSY 1 (2000/4/10) OK E
2 KV8-M7720-A1X NOZZLE 72A ASSY. 1 E
3 KV8-M7730-00X NOZZLE 73A/83A/93A 1 E
4 KV8-M7740-A0X NOZZLE 74A/84A/94A ASSY. 1 E
5 90990-17J013 O-RING 5 (2002/7/10) OK E
6 KV8-M7760-00X NOZZLE 76A/86A/96A 1 E
7 KV8-M7790-A0X NOZZLE 79A/89A ASSY 1 E
3
6
Nozzle (FNC)
Nozzle
KV8-080422
1
2
6
7
Type71F Type72F
13
Type79F
11
12
Type73F
12
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KV8-M71N1-A1X NOZZLE 71F ASSY. 1 (2004/8/2) OK E
2 KV8-M71U5-00X SCREW 2 E
6 KV8-M71N2-A1X NOZZLE 72F ASSY. 1 (2004/8/2) OK E
7 KV8-M71U5-00X SCREW 2 E
11 KV8-M71N3-A0X NOZZLE 73F ASSY 1 TYPE73F E
12 KV8-M71U5-00X SCREW 2 E
13 KV8-M71N9-A1X NOZZLE 79F ASSY 1 TYPE79F (2004/8/2) E
