1 7 Push-in 7 Conveyor Unit KV8-1109 1 2 9 12 4 5 13 13 16 16 15 6 7 3 10 11 NORMAL 8 14 No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level 1 KGA-M9221-00X PLA TE PUSH IN 1 (2002/11/27) OK / 2-1 …
3
6
Nozzle (FNC)
Nozzle
KV8-080422
1
2
6
7
Type71F Type72F
13
Type79F
11
12
Type73F
12
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KV8-M71N1-A1X NOZZLE 71F ASSY. 1 (2004/8/2) OK E
2 KV8-M71U5-00X SCREW 2 E
6 KV8-M71N2-A1X NOZZLE 72F ASSY. 1 (2004/8/2) OK E
7 KV8-M71U5-00X SCREW 2 E
11 KV8-M71N3-A0X NOZZLE 73F ASSY 1 TYPE73F E
12 KV8-M71U5-00X SCREW 2 E
13 KV8-M71N9-A1X NOZZLE 79F ASSY 1 TYPE79F (2004/8/2) E
1
7

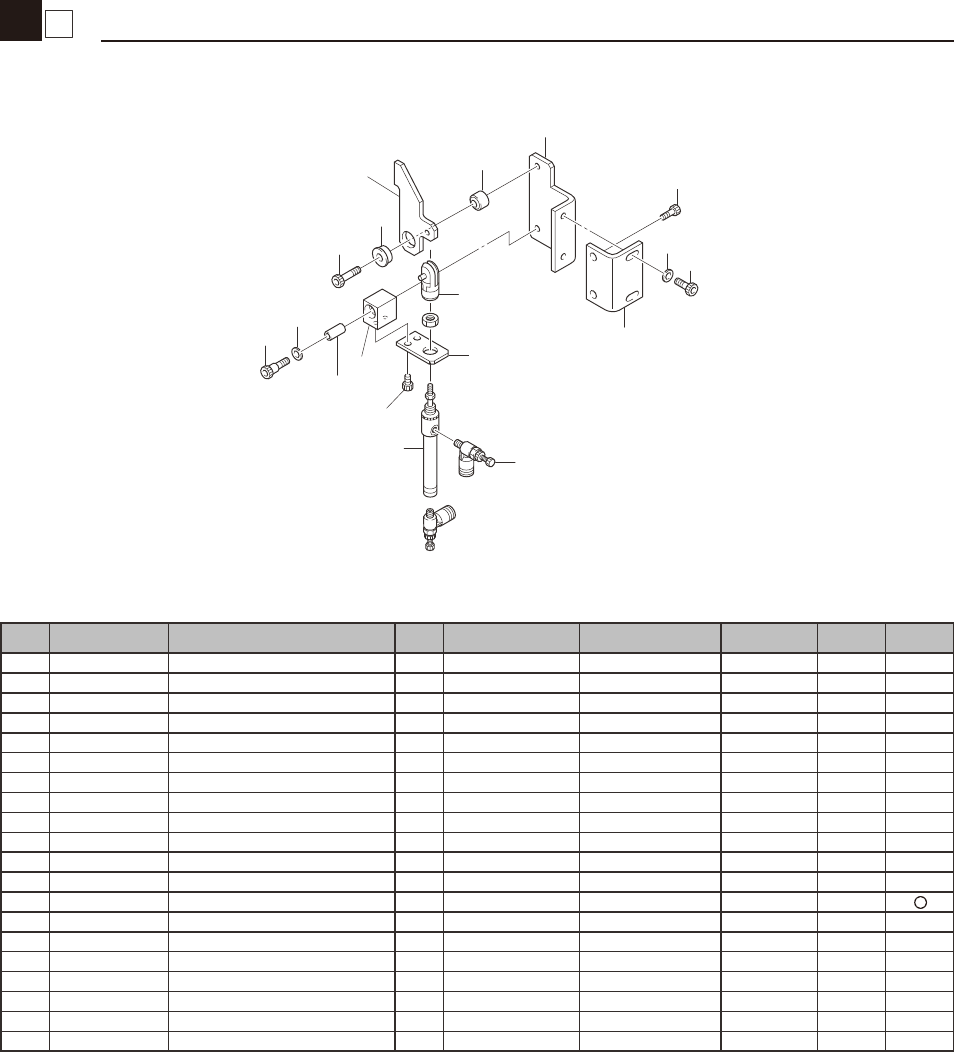

Push-in
7 Conveyor Unit
KV8-1109
1
2
9
12
4
5
13
13
16
16
15
6
7
3
10
11
NORMAL
8
14
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KGA-M9221-00X PLATE PUSH IN 1 (2002/11/27) OK /
2-1 KV7-M9222-00X BRACKET,PUSH IN 1 t=3.2 /
2-2 KV7-M9222-01X BRACKET,PUSH IN 1 t=2 (2006/1/13) NG /
3 KV7-M9223-00X HOLDER CYL. 1 /
4-1 KV7-M9224-00X COLLAR 1 t=6.5 /
4-2 KV7-M9224-01X COLLAR 1 t=7.5 (2006/2/20) Set /
5-1 KV7-M9225-00X BRACKET,HOLDER 1 t=3.2 /
5-2 KV7-M9225-01X BRACKET,HOLDER 1 t=2 (2006/1/13) NG /
6 90990-41J061 COLLAR 1 (2008/4/17) OK /
7-1 KV7-M9227-00X BLOCK,COLLAR 1 /
7-2 KV7-M9227-01X BLOCK,COLLAR 1 (2006/2/20) Set /
8 90933-03J694 BEARING 1 (2001/7/6) OK /
9 KG7-M9166-00X CYLINDER 1 (2003/8/29) OK B
10 KJ9-M177F-11X Y-KNUCKLE 1 (2005/11/3) OK /
11 $SC4-M5A SPEED CONTROLLER 2 /
12 91317-04006 BOLT HEX.SOCKET HEAD 2 /
13 91317-04008 BOLT HEX.SOCKET HEAD 2 /
14 91317-04014 BOLT HEX.SOCKET HEAD 1 /
15 91317-04016 BOLT HEX.SOCKET HEAD 1 /
16 92907-04200 WASHER PLAIN 1 /
2
7

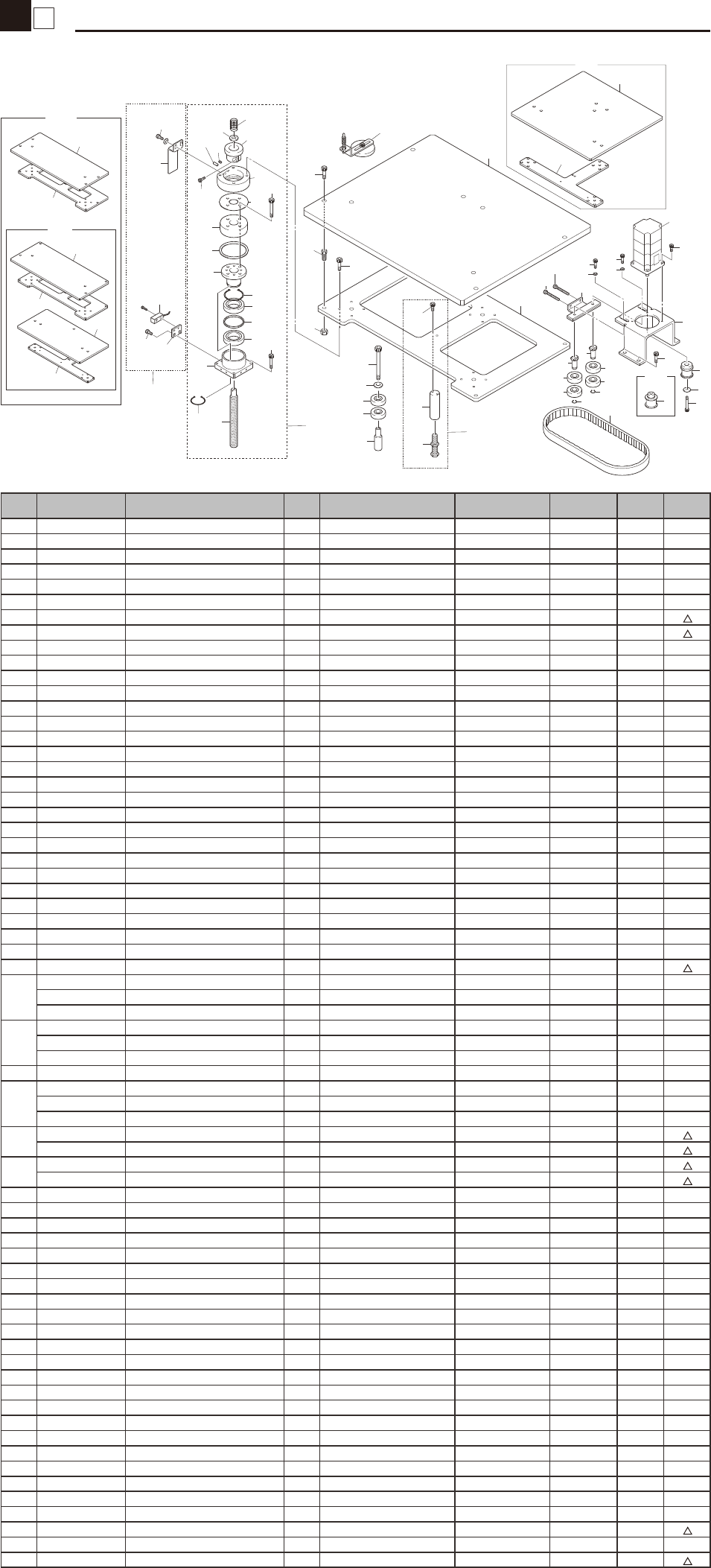

Push-Up
Conveyor Unit
KV8-1109
6
29
48
2
35
30
31
35
4
37
33
1
5
34
36
45
46
36
40
43
7
7
9
38
42
38
42
3
3
7
7
8
8
7
7
16
21
22
14
21
23
13
33
15
51
17
41
20
12
11
32
26
39
27
28
39
19
33
18
10
33
25
24
47
4
OLD
29
30
OLD
W250
OLD
49 FigC
49 FigB
49 FigA
50 FigF
50 FigE
50 FigD
53
52
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KV7-M9201-00X BRACKET, MOTOR 1 /
2 KV7-M9202-00X STAY, ADJUST 1 /
3 KV7-M9203-00X SHAFT 1 2 /
4-1 KV7-M9205-00X PULLEY 1 1 (BANDO) /
4-2 KV7-M9205-01X PULLEY 1 1 P22-3GT (UNITTA) 2001/12/28 NG /
5 90990-28J076 WASHER 1 (2007/12/18) OK /
6 90K55-523D5U AC SERVO MOTOR 1 B
7 90933-01J200 BEARING 4 (2001/6/29) OK A
8 99009-10400 CIRCLIP 2 /
9 KV7-M9204-00X SHAFT 2 1 /
10 KV7-M9207-00X FLANGE 1 1 /
11 KV7-M9208-00X FLANGE 2 1 /
12-1 KV7-M9209-00X PULLEY 2 1 (BANDO) /
12-2 KV7-M9209-01X PULLEY 2 1 P60-3GT (UNITTA) 2001/12/28 NG /
13 KV7-M9211-00X HOUSING 1 /
14 90990-41J060 COLLAR 1 (2008/4/17) OK /
15 KV7-M9213-00X NUT 1 /
16 KV7-M9214-00X SCREW 1 /
17 KV7-M9215-00X JOINT 1 /
18 KV7-M9217-00X FLANGE 1 /
19 KV7-M9218-00X SPRING 1 /
20 KV7-M921C-00X ROLLER 1 /
21 90933-01J905 BEARING 3 2 6905ZZ /
22 99009-42500 CIRCLIP 1 /
23 99009-25400 CIRCLIP 1 /
24 KV7-M9219-00X STOPPER 1 /
25 90990-33J011 BOLT, STOPPER 1 (2008/6/18) OK /
26 KV7-M920D-00X DOG 1 /
27 KV7-M920E-00X BRACKET 1 /
28 KGA-M921G-00X SENSOR, ORG 1 (2002/2/28) OK B
29-1
KGA-M920A-00X PLATE 440 1 W440 /
KGA-M920A-10X PLATE 382 1 W382 /
KGA-M920A-20X PLATE 335 1 W335 /
29-2
KGA-M920A-01X PLATE 440 1 W440 (2001/3/15) NG /
KGA-M920A-11X PLATE 382 1 W382 (2001/3/15) NG /
KGA-M920A-21X PLATE 335 1 W335 (2001/3/15) NG /
30-1 KV7-M920C-00X STAY,F 1 /
30-2
KGA-M920C-00X STAY 1 W440 (2001/3/15) NG /
KGA-M920C-10X STAY 1 W382 (2001/3/15) NG /
KGA-M920C-20X STAY 1 W335 (2001/3/15) NG /
31-1
KV7-M921A-00X BELT 1 W440,W382,W335 (BANDO) B
KV7-M921A-30X BELT 1 W250 (BANDO) B
31-2
KV7-M921A-01X BELT 1 W440,W382,W335 (UNITTA) 2001/12/28 NG B
KV7-M921A-31X BELT 1 W250 (UNITTA) 2001/12/28 NG B
32 91317-04008 BOLT HEX. SOCKET HEAD 2 /
33 91317-04010 BOLT HEX. SOCKET HEAD 10 /
34 91317-04012 BOLT HEX. SOCKET HEAD 1 /
35 91317-04022 BOLT HEX. SOCKET HEAD 2 (2002/2/1) OK /
36 91317-05012 BOLT HEX. SOCKET HEAD 8 /
37 91317-05014 BOLT HEX. SOCKET HEAD 4 /
38 91317-05016 BOLT HEX. SOCKET HEAD 2 /
39 91317-05020 BOLT HEX. SOCKET HEAD 8 /
40 91317-06060 BOLT HEX. SOCKET HEAD 1 /
41 92A08-03306 SCREW,SET 1 (2001/9/21) OK /
42 92907-04200 WASHER PLAIN 2 /
43 92907-06200 WASHER PLAIN 1 /
45 KGA-M921T-00X BOLT 4 /
46 95602-10100 NUT U 4 (2006/1/10) OK /
47 92907-10600 WASHER PLAIN 1 M10 (2003/11/13) /
48 KV7-M921D-10X PUSH UP PIN UNIT 9 /
49 KGA-M920A-30X PLATE 250 1 W250 FigA /
49-1 KGA-M920A-31X PLATE 250 1 W250 FigB (2001/3/15) NG /
49-2 KGA-M920A-32X PLATE 250 1 W250 FigC (2001/12/17) NG /
50-1 KV7-M920C-30X STAY,F 1 W250 FigD /
50-2 KGA-M920C-30X STAY 1 W250 FigE (2001/3/15) NG /
50-3 KGA-M920C-31X STAY 1 W250 FigF (2001/12/17) NG /
51 KV7-M9211-A0X SCREW UNIT 3 B
52 KV7-M9219-A0X STOPER ASSY 1 /
53 KV7-M920D-A0X SENSOR UNIT ASSY 1 B
