2 2 Base Cover Cover KV8-080617 8 8 8 8 9 8 13 8 8 8 14 16 14 9 14 8 8 15 14 1 1 14 13 10 1 1 5 6 6 18 7 3 12 1 1 9 2 9 1 1 14 9 18 8 16 10 8 10 1 1 9 1 1 1 17 6 6 7 6 7 4 1 OLD OLD No. Part No. Part Name Q'ty Remar…
1
2

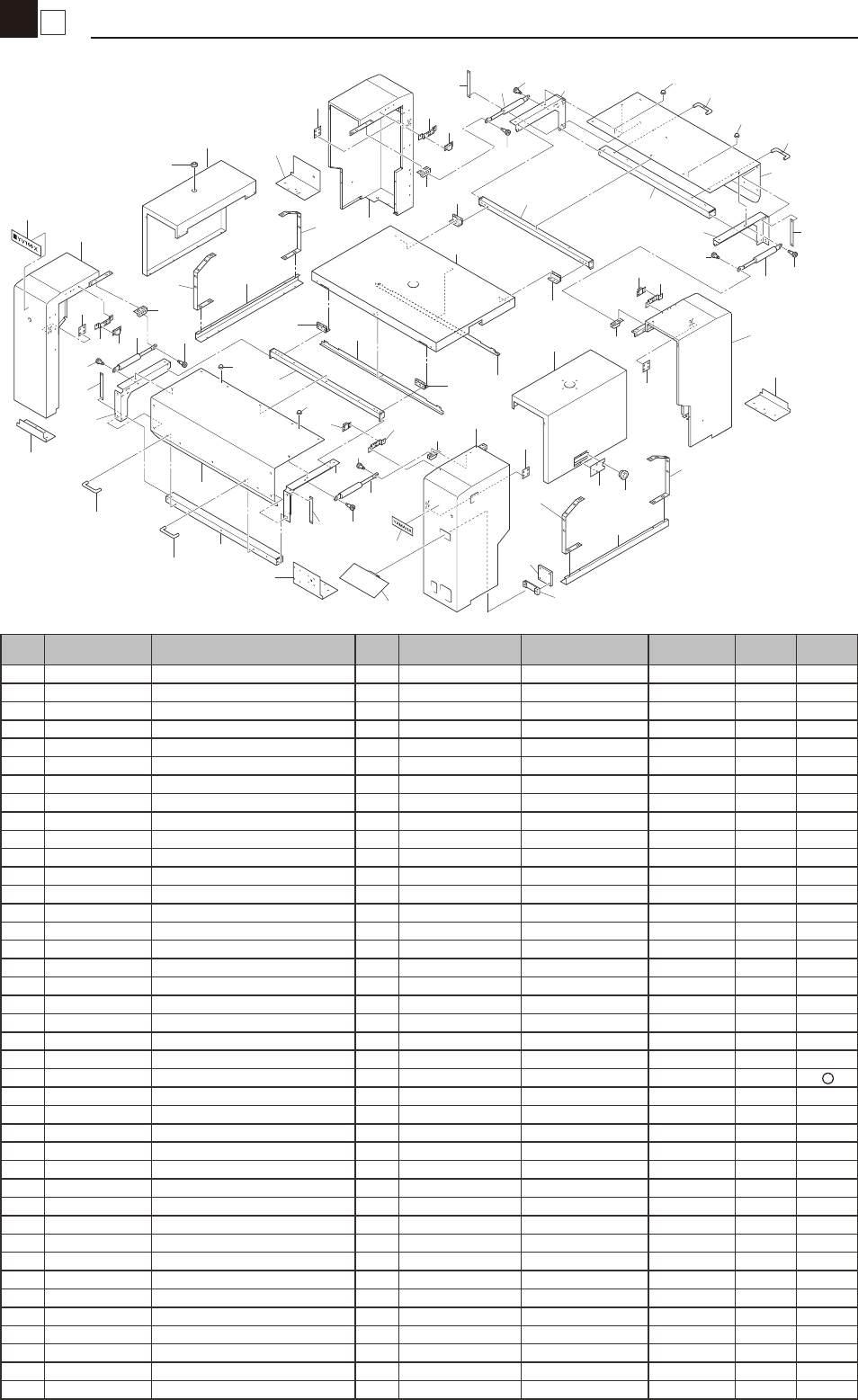

Top Cover
2 Cover
KV8-1109
31
21
9
28
22
28
22
20
3
30
28
28
30
11
22
26
29
11
23
25
11
10
27
19
9
22
16
20
25
34
23
14
31
32
2
33
31
32
6
21
31
32
23
7
15
10
5
1
25
5
29
8
10
13
10
23
12
25
17
19
30
16
25
4
21
20
18
32
18
21
30
35
25
20
17
25
11
24
25
36
37
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KV7-M1301-A0X COVER 1 ASSY 1 /
2 KV7-M1302-A0X COVER 2 ASSY 1 /
3 KV7-M1303-A0X COVER 3 ASSY 1 /
4 KV7-M1304-A0X COVER 4 ASSY 1 /
5 KV7-M1305-00X COVER 5 2 /
6 KV7-M1306-A1X COVER 6 ASSY 1 (2000/10/2) OK /
7 KV7-M1307-A0X COVER 7 ASSY 1 /
8 KV7-M1308-A0X COVER 8 ASSY 1 /
9 KV7-M1309-01X COVER,9 2 (2000/10/2) OK /
10 KM0-M1322-00X PLATE PLUG 4 /
11 KM0-M1331-01X BRACKET ,GAS DAMPER 4 /
12 KM8-M1338-01X BRACKET MAIN SWITCH 1 /
13 KV7-M1336-00X BKT CORNER L,BACK 1 /
14 KV7-M1337-00X BKT CORNER L,FRONT 1 /
15 KV7-M1339-00X BKT CORNER R,BACK 1 /
16 KV7-M1340-01X BRACKET 1,COVER 9 2 (2000/10/2) OK /
17 KV7-M1341-02X BRACKET 2,COVER 9 2 (2001/3/28) OK /
18 KV7-M1342-00X BRACKET 3,COVER 9 2 /
19 KV7-M1343-01X BRACKET 4,COVER 9 1 (2000/10/20) OK /
20 KV7-M1349-00X PLATE 2 NUT 4 /
21 K46-M1374-10X HINGE 2 4 /
22 KH2-M1324-00X GRIP 4 /
23 KL3-M1348-10X GAS SPRING 4 A
24 KH5-M13B1-10X BRACKET KEYBOARD 1 /
24-1 KGA-M13B1-00X BRACKET,KEYBOARD 1 (2002/6/11) NG /
24-2 KGA-M13B1-10X STAY KEYBOARD 1 (2005/12/5) NG /
25 KM0-M1346-00X SHOULDER,BOLT 8 /
25-1 90990-31J006 BOLT,SHOULDER 8 (2008/6/24) OK /
26 KL0-M1318-00X COVER 18 1 /
27 KH1-M13A9-00X BUSH 1 /
28 K93-M1392-00X SPACER 4 TM-180-303 /
29 KV7-M1329-00X COVER 29 2 /
30 KM0-M1335-00X BKT 1 GATE COVER 4 /
31 KM0-M1332-00X BRACKET MAGNET 4 /
31-1 KM0-M1332-01X BRACKET MAGNET 4 (2001/9/18) SET /
32 K93-M1388-00X MG.CATCH 4 TL-77S /
32-1 KV5-M1130-00X CATCH MG. 4 (2001/9/18) SET /
35 KV7-M1350-00X CAP,PATLIGHT 1 /
36 KL3-M1381-02X PLATE 1 KEY BOARD 1 (2001/3/28) OK /
37 KL3-M1382-01X PLATE 2 KEY BOARD 1 (2001/3/28) OK /
2
2

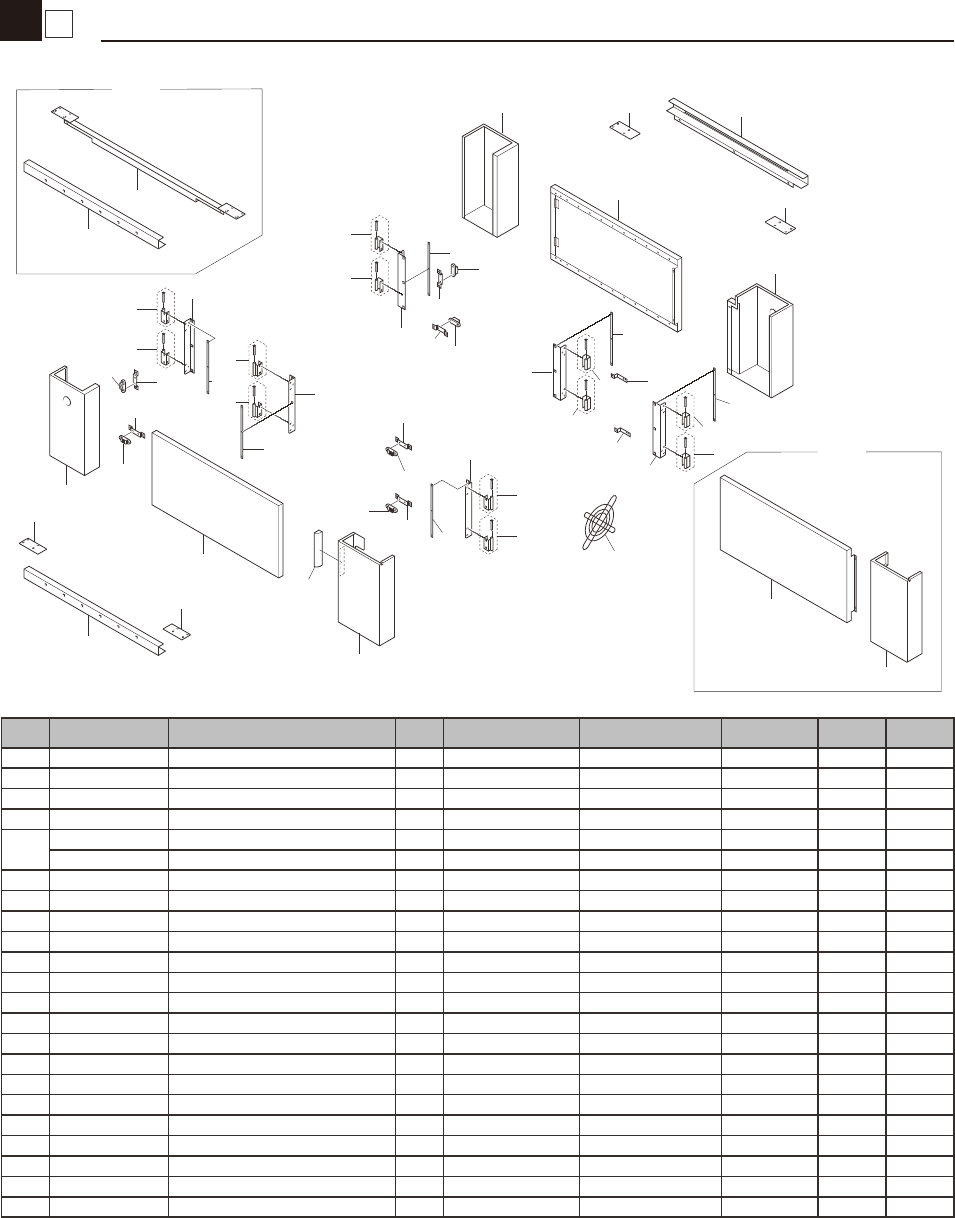

Base Cover
Cover
KV8-080617
8
8
8
8
9
8
13
8
8
8
14
16
14
9
14
8
8
15
14
11
14
13
10
11
5
6
6
18
7
3
12
11
9
2
9
11
14
9
18
8
16
10
8
10
11
9
11
1
17
6
6
7
6
7
4
1
OLD
OLD
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KV7-M1310-02X COVER 10 1 2000/2/12 NG /
1-2 KGA-M1310-00X COVER 10 1 (2005/6/2) OK /
2 KV7-M1311-00X COVER 11 1 /
3 KV7-M1313-00X COVER 13 1 /
3-1
KV7-M1313-00X COVER 13 1 S.T.D (2004/4/1) OK /
KV7-M1313-10X COVER 13 1 with Power Indicator (2004/4/1) /
4 KV7-M1314-00X COVER 14 2 /
5 KV7-M1315-00X COVER 15 1 /
6 KV7-M1317-00X COVER 17 2 /
6-1 KV7-M1317-01X COVER 17 4 1999/8/5 NG /
7 KV7-M1325-00X BRACKET 5 2 /
7-1 KV7-M1325-01X BRACKET 5 2 1999/8/5 NG /
8 KG2-M1370-00X HINGE ASSY 12 /
9 K44-M1354-00X MG.CATCH 6 TL-152-2 /
10 KV7-M1326-00X BRACKET 1-1 3 /
11 KV7-M1370-00X BRACKET MAGNET 6 /
12 KV7-M1327-00X BRACKET 1-2 1 /
13 KV7-M1328-00X BRACKET 2 2 /
14 KV7-M1347-00X PLATE BRACKET 6 /
15 KJ0-M4187-00X FAN GUARD 2 /
16 KGS-M1371-00X BRACKET,FIX 2 (2006/9/6) OK /
17 KV7-M1372-00X HANDLE 1 /
18 KV7-M1312-00X COVER,12 1 (1999/11/30) /
1
3
Feeder Holder E
3 Feeder
KV8-1109
Fig D Fig E Fig F
16mm
16mm
20mm
Fig G Fig H
16mm
20mm
50mm
38mm
14
25
15
3
15
22
24
15
21
23
6
2
8
15
25
26
18
16
15
23
4
5>4
16
16
16
7
15
21
20
19
OLD
1
14
10
17
27
10
17
27
1
OLD
28,29
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KM0-M3401-E2X PLATE E,FEEDER 1 /
1-2 KM0-M3401-E3X PLATE E,FEEDER 1 (2005/2/14) NG /
2 KM0-M3402-F0X GUIDE F-1.TAPE 1 /
3 KM0-M3403-E0X GUIDE E-2.TAPE 1 /
4 KM0-M3405-01X STAND,1 1 Fig D /
4-1 KM0-M3405-02X STAND,1 1 Fig E (2004/4/20) OK /
4-2 KM0-M3405-03X STAND,1 1 Fig F (2004/11/1) NG /
4-3 KM0-M3405-S0X STAND,1/2 SET 1 Set of the same Parts (2010/4/5) /
5 KM0-M3406-01X STAND,2 1 Fig G /
5-1 KM0-M3406-02X STAND,2 1 Fig H (2004/11/1) NG /
6 KM0-M3408-E0X BRACKET E.VALVE 1 /
7 KM0-M3409-E0X COVER E.VALVE 1 /
8 KGA-M3410-10X VALVE ASSY.50-L 1 C
10 $BF4BU JOINT 16 /
14 91317-06020 BOLT HEX.SOCKET HEAD 11 /
15 91317-04010 BOLT HEX.SOCKET HEAD 14 /
16 90990-12J005 SCREW BINDING HEAD 10 /
17 KG2-M3407-A0X AIR JOINT 50 A
18 KM0-M3419-E0X GUIDE E-5.TAPE 1 /
19 KM0-M3416-00X GASKET 50 /
20 98907-03004 SCREW.BINDING HEAD 50 /
21 91317-08020 BOLT.HEX SOCKET HEAD 4 /
22 KM0-M3404-E1X GUIDE E-3.TAPE 1 /
23 90990-07J002 BOLT HEXAGON 2 /
24 91317-03006 BOLT.HEX SOCKET HEAD 6 /
25 KM0-M3417-00X GUIDE4 2 /
26 KGA-M37P0-00X VALVE KIT 1 SPARE PARTS (2003/2/5) OK C
27 KM8-M34A0-00X FEEDER PLATE ASSY. 1 /
27-1 KM8-M34A0-01X FEEDER PLATE ASSY.50 1 (2004/4/20) NG /
28 KU5-M3430-01X LABEL,FEEDER 1 (1-60) /
29 KU5-M3430-20X LABEL,FEEDER 1 (101-160) /
