5-1 5 Lubrication points 1. Lubrication points and applicable grease 1.1 Applicable grease When greasing the lubrication points, be sure to use appropriate grease specified by Y AMAHA as listed below . c CAUTION If greas…
Chapter 5 Lubrication points
Contents
1.
Lubrication points and applicable grease
5-1
1.1 Applicable grease 5-1
1.2 Grease gun 5-1
2. Lubrication of each unit 5-2
2.1 Each axis unit 5-2
2.1.1 XT and YT-axis guide and ball screw 5-2
2.1.2 LX-axis guide and ball screw 5-3
2.1.3 LY-axis guide and ball screw 5-4
2.1.4 W-axis guide and ball screw 5-5
2.1.5 MS-axis guide 5-6
2.1.6 HZ and HS-axis guide and ball screw 5-7
5-1
5
Lubrication points
1. Lubrication points and applicable grease
1.1 Applicable grease
When greasing the lubrication points, be sure to use appropriate grease specified by YAMAHA as listed below.
c
CAUTION
If grease other than that specified is used, this may cause damage to the machine.
n
List of specified grease
Lubrication
point
Guide Ball screw Remarks
XT
-axis
NSL grease NSL grease X-axis for conveyor table
YT
-axis
NSL grease NSL grease Y-axis for conveyor table
LX
-axis
NSL grease NSL grease X-axis for X-ray camera table
LY
-axis
NSL grease NSL grease Y-axis for X-ray camera table
W
-axis
NSL grease NSL grease W-axis for conveyor table
MS
-axis
NSL grease ー Stopper unit
HZ
-axis
NSL grease NSL grease X-ray source unit
HS
-axis
NSL grease NSL grease Optical camera unit

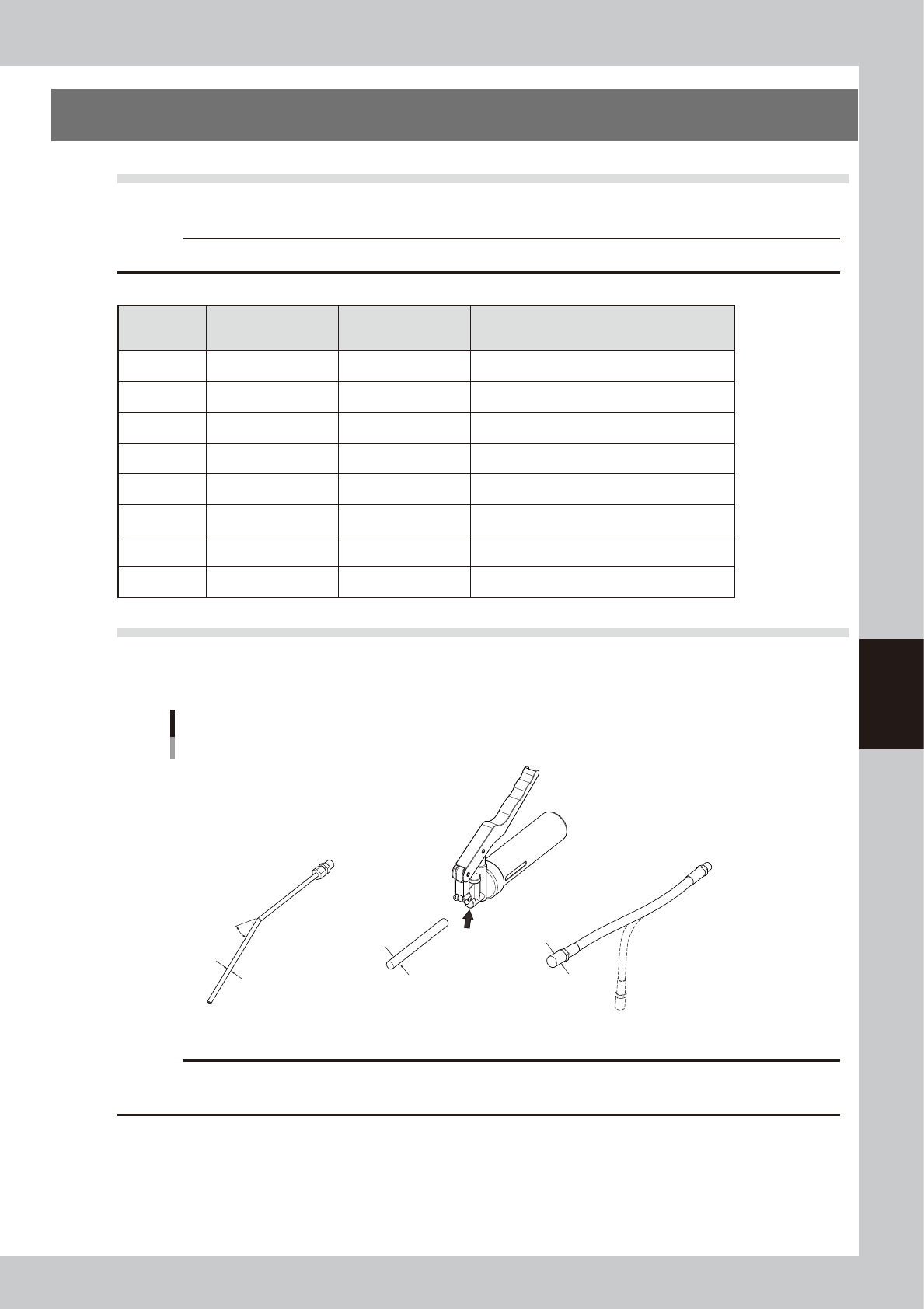

1.2 Grease gun
Select an appropriate nozzle suitable for the lubrication point from three kinds of nozzles shown below and
attach it to the grease gun to apply the grease. Change the nozzle according to the greasing instructions.
Grease gun
Grease gun
30°-bent type nozzle
Standard nozzle
Change the
nozzle here.
Chuck flexible type nozzle
30°
Outside diameter
of tip: φ14
Outside diameter
of tip: φ10
Outside diameter
of tip: φ5
53501-M6-00
c
CAUTION
Prepare different nozzles by grease. If two or more kinds of grease with different characteristics are mixed in the nozzle
and it is applied, this may cause the machine performance to lower.
5-2
5
Lubrication points
2. Lubrication of each unit
This section explains the lubrication points of each unit, lubrication intervals, and lubrication methods.
2.1 Each axis unit
2.1.1 XT and YT-axis guide and ball screw
Lubrication points for XT and YT axes
4. XT-axis ball screw
Grease nipple
2. YT-axis ball screw
Grease nipple
1. YT-axis linear guide
Grease nipple
1. YT-axis linear guide
Grease nipple
3. XT-axis linear guide
Grease nipple
3. XT-axis linear guide
Grease nipple
3. XT-axis linear guide
Grease nipple
Grease gun:
Apply by hand:
53502-M6-00
Unit to be lubricated
Lubrication
point
Interval Lubrication method
1 YT-axis guide 6
Once a month
Grease gun with standard nozzle
2 YT-axis ball screw 1 Grease gun with standard nozzle
3 XT-axis guide 6 Grease gun with standard nozzle
4 XT-axis ball screw 1
Grease gun with standard nozzle
*
Lubricate after moving the unit to near its origin
