Lubrication points
2. Lubrication of each unit
This section explains the lubrication points of each unit, lubrication intervals, and lubrication methods.
2.1 Each axis unit

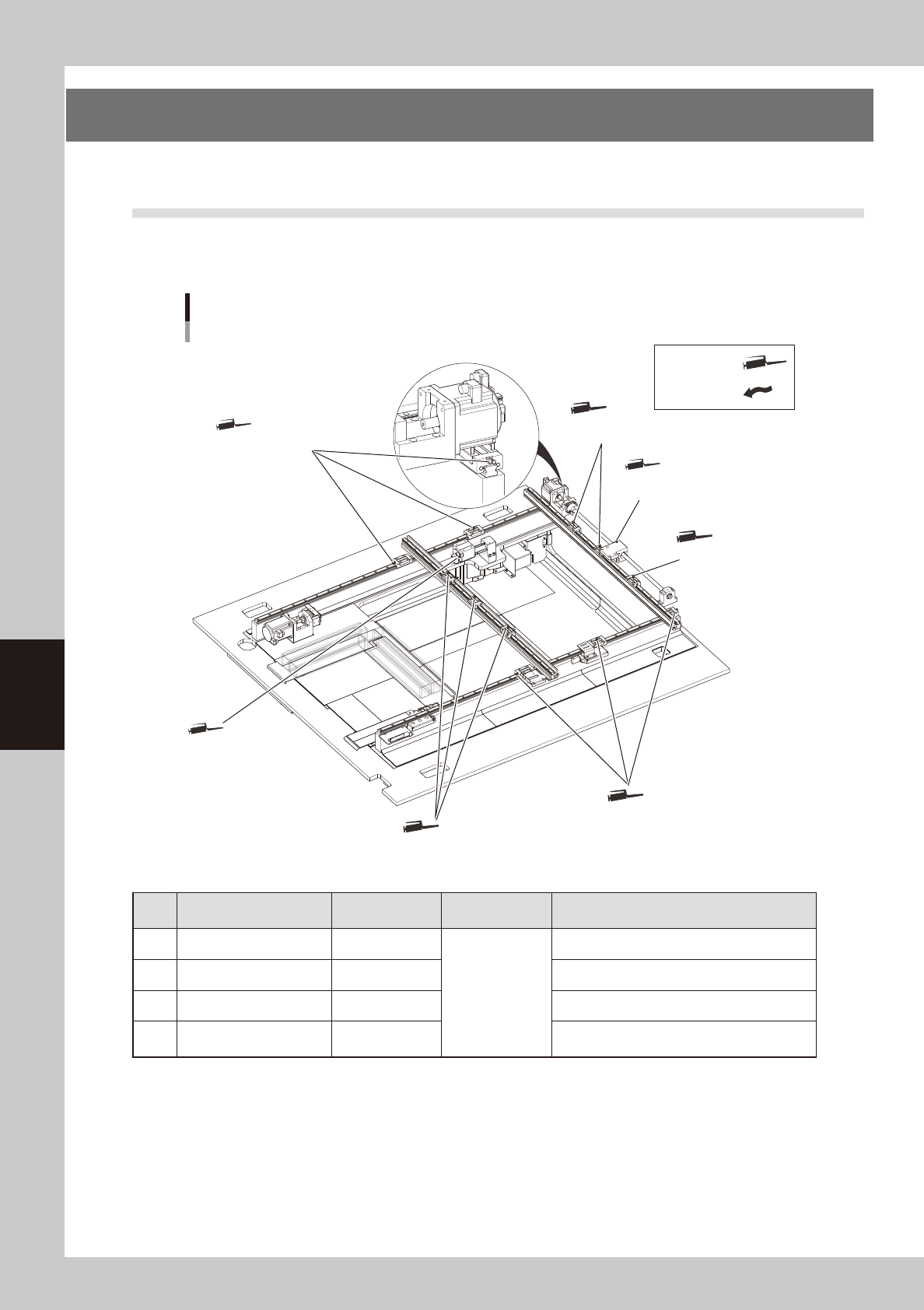

2.1.1 XT and YT-axis guide and ball screw
Lubrication points for XT and YT axes
4. XT-axis ball screw
Grease nipple
2. YT-axis ball screw
Grease nipple
1. YT-axis linear guide
Grease nipple
1. YT-axis linear guide
Grease nipple
3. XT-axis linear guide
Grease nipple
3. XT-axis linear guide
Grease nipple
3. XT-axis linear guide
Grease nipple
Grease gun:
Apply by hand:
53502-M6-00
Unit to be lubricated
Lubrication
point
Interval Lubrication method
1 YT-axis guide 6
Once a month
Grease gun with standard nozzle
2 YT-axis ball screw 1 Grease gun with standard nozzle
3 XT-axis guide 6 Grease gun with standard nozzle
4 XT-axis ball screw 1
Grease gun with standard nozzle
*
Lubricate after moving the unit to near its origin
5-3
5
Lubrication points
2.1.2 LX-axis guide and ball screw
Lubrication points for LX-axis
LX-axis ball screw
Grease nipple
LX-axis guide
Grease nipple
LX-axis guide
Grease nipple
Grease gun:
Apply by hand:
53503-M6-00
Unit to be lubricated
Lubrication
point
Interval Lubrication method
Guide 4
Once a month
Grease gun with standard nozzle
Ball screw 1 Grease gun with standard nozzle
5-4
5
Lubrication points
2.1.3 LY-axis guide and ball screw
Lubrication points for LY-axis
Grease gun:
Apply by hand:
LY-axis guide
Grease nipple
LY-axis guide
Grease nipple
LY-axis ball screw
Grease nipple
53504-M6-00
Unit to be lubricated
Lubrication
point
Interval Lubrication method
Guide 4
Once a month
Grease gun with standard nozzle
Ball screw 1 Grease gun with standard nozzle
