5-4 5 Lubrication points 2.1.3 L Y -axis guide and ball screw Lubrication points for L Y -axis Grease gun: Apply by hand: L Y -axis guide Grease nipple L Y -axis guide Grease nipple L Y -axis ball screw Grease nipple 535…
5-3
5
Lubrication points

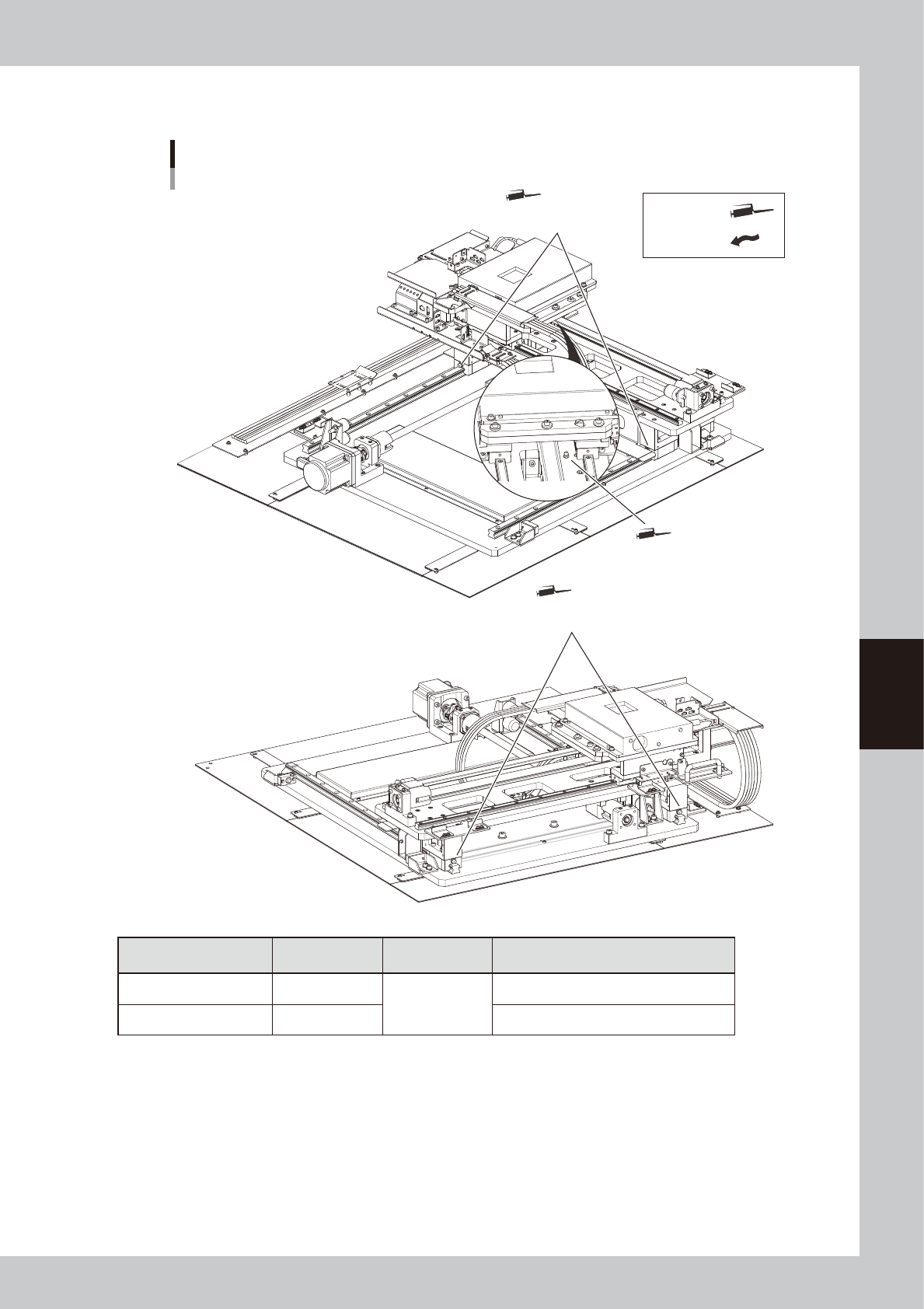

2.1.2 LX-axis guide and ball screw
Lubrication points for LX-axis
LX-axis ball screw
Grease nipple
LX-axis guide
Grease nipple
LX-axis guide
Grease nipple
Grease gun:
Apply by hand:
53503-M6-00
Unit to be lubricated
Lubrication
point
Interval Lubrication method
Guide 4
Once a month
Grease gun with standard nozzle
Ball screw 1 Grease gun with standard nozzle
5-4
5
Lubrication points

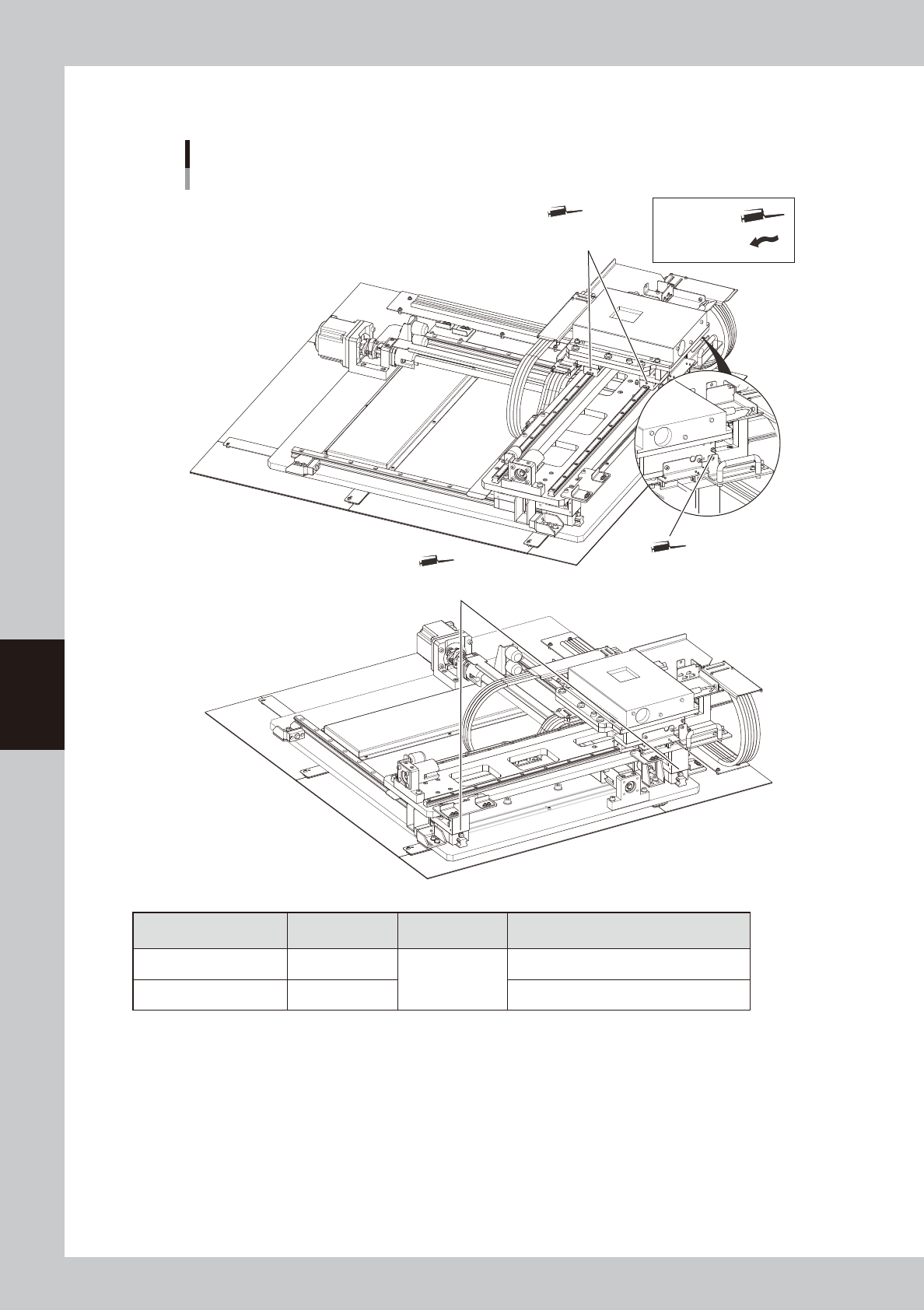

2.1.3 LY-axis guide and ball screw
Lubrication points for LY-axis
Grease gun:
Apply by hand:
LY-axis guide
Grease nipple
LY-axis guide
Grease nipple
LY-axis ball screw
Grease nipple
53504-M6-00
Unit to be lubricated
Lubrication
point
Interval Lubrication method
Guide 4
Once a month
Grease gun with standard nozzle
Ball screw 1 Grease gun with standard nozzle
5-5
5
Lubrication points

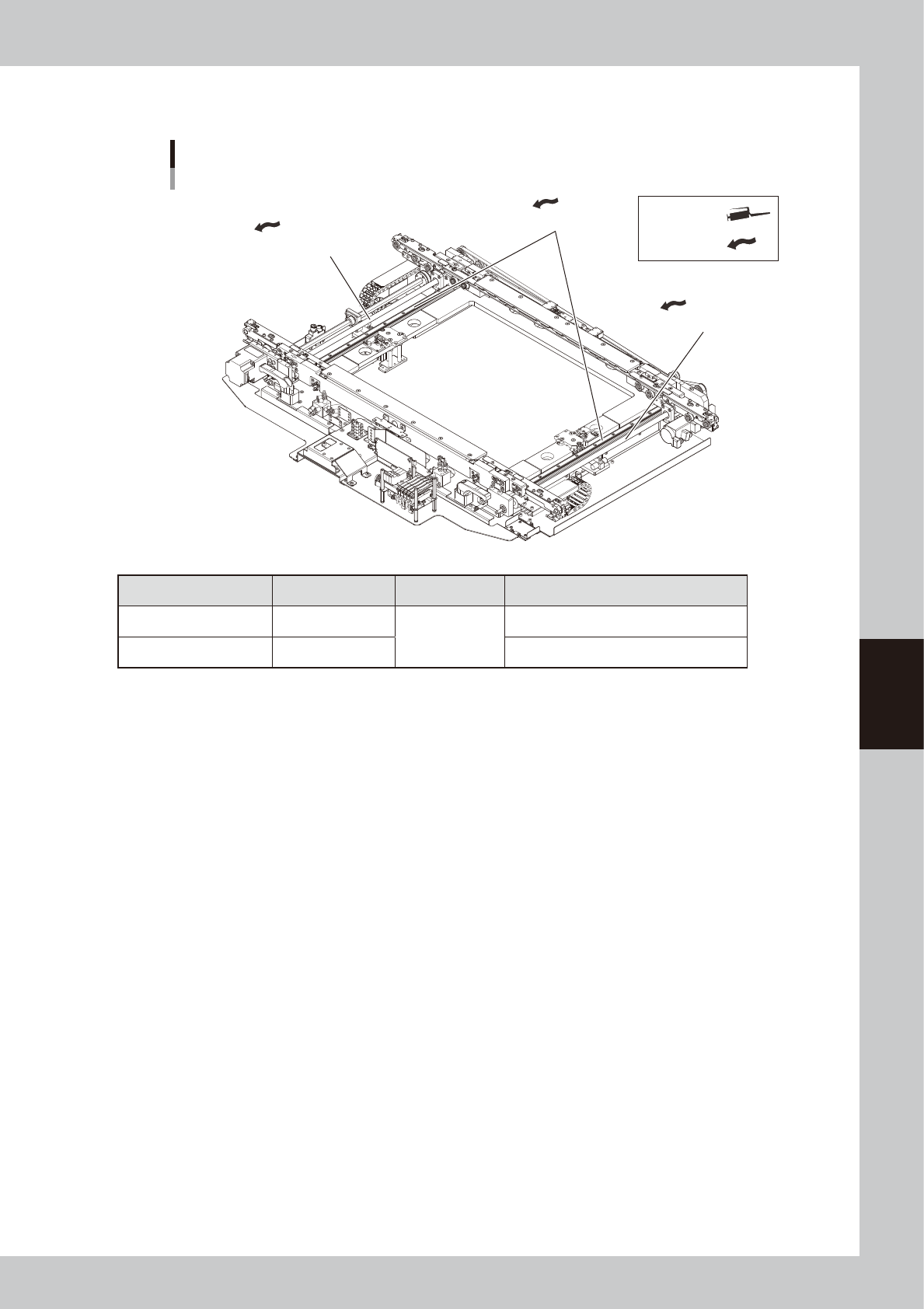

2.1.4 W-axis guide and ball screw
Lubrication points for W-axis
W-axis ball screw
W-axis guide
W-axis ball screw
Grease gun:
Apply by hand:
53505-M6-00
Unit to be lubricated Lubrication point Interval Lubrication method
Guide 2
Once every
3 months
Apply grease by hand
Ball screw 2 Apply grease by hand
