5-6 5 Lubrication points 2.1.5 MS-axis guide Lubrication points for MS-axis MS-axis guide Grease nipple MS-axis guide Grease nipple Grease gun: Apply by hand: 53506-M6-10 Unit to be lubricated Lubrication point Interval …
5-5
5
Lubrication points
2.1.4 W-axis guide and ball screw
Lubrication points for W-axis
W-axis ball screw
W-axis guide
W-axis ball screw
Grease gun:
Apply by hand:
53505-M6-00
Unit to be lubricated Lubrication point Interval Lubrication method
Guide 2
Once every
3 months
Apply grease by hand
Ball screw 2 Apply grease by hand
5-6
5
Lubrication points

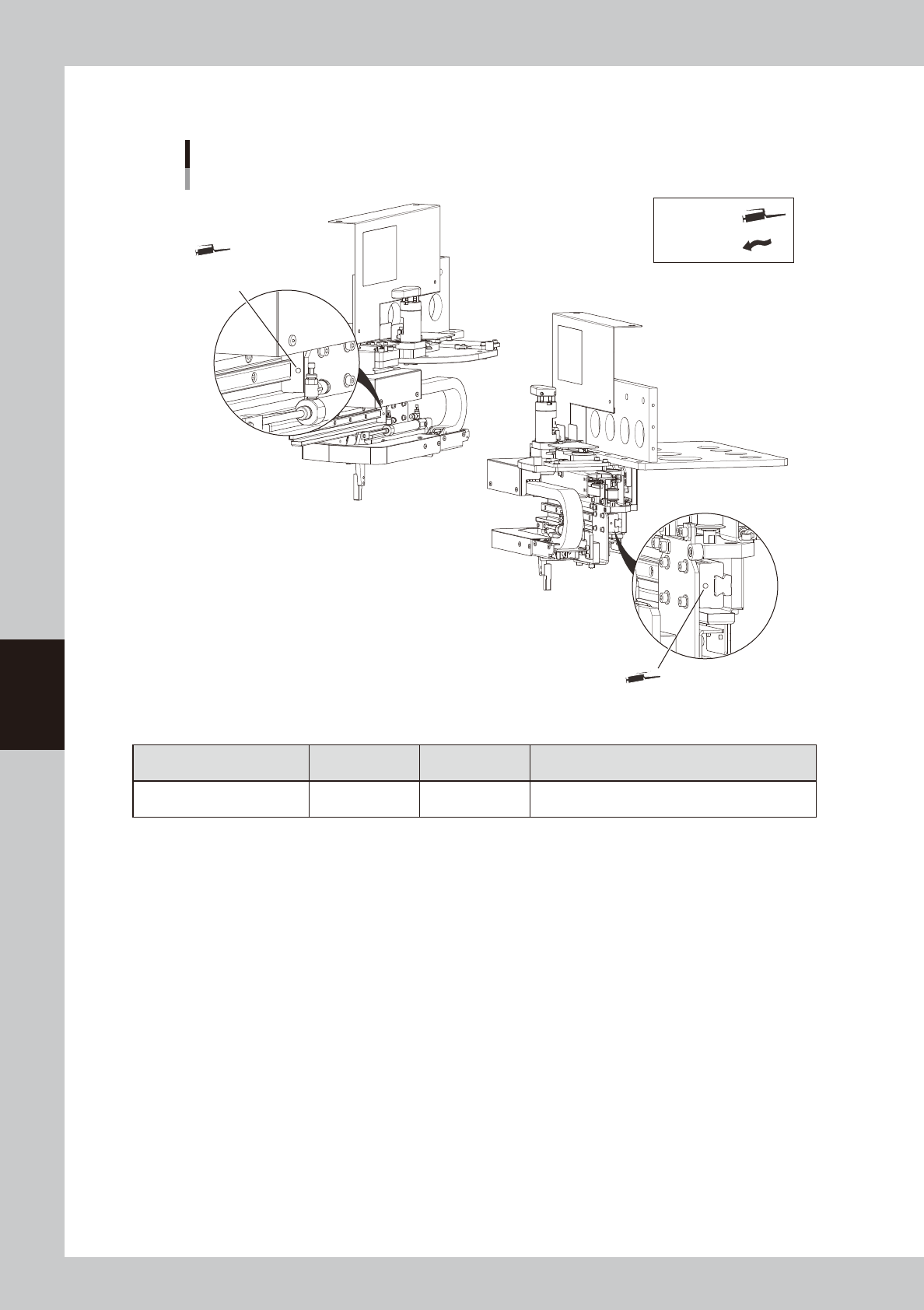

2.1.5 MS-axis guide
Lubrication points for MS-axis
MS-axis guide
Grease nipple
MS-axis guide
Grease nipple
Grease gun:
Apply by hand:
53506-M6-10
Unit to be lubricated
Lubrication
point
Interval Lubrication method
Guide 2
Once every
6 months
Grease gun with standard nozzle
5-7
5
Lubrication points

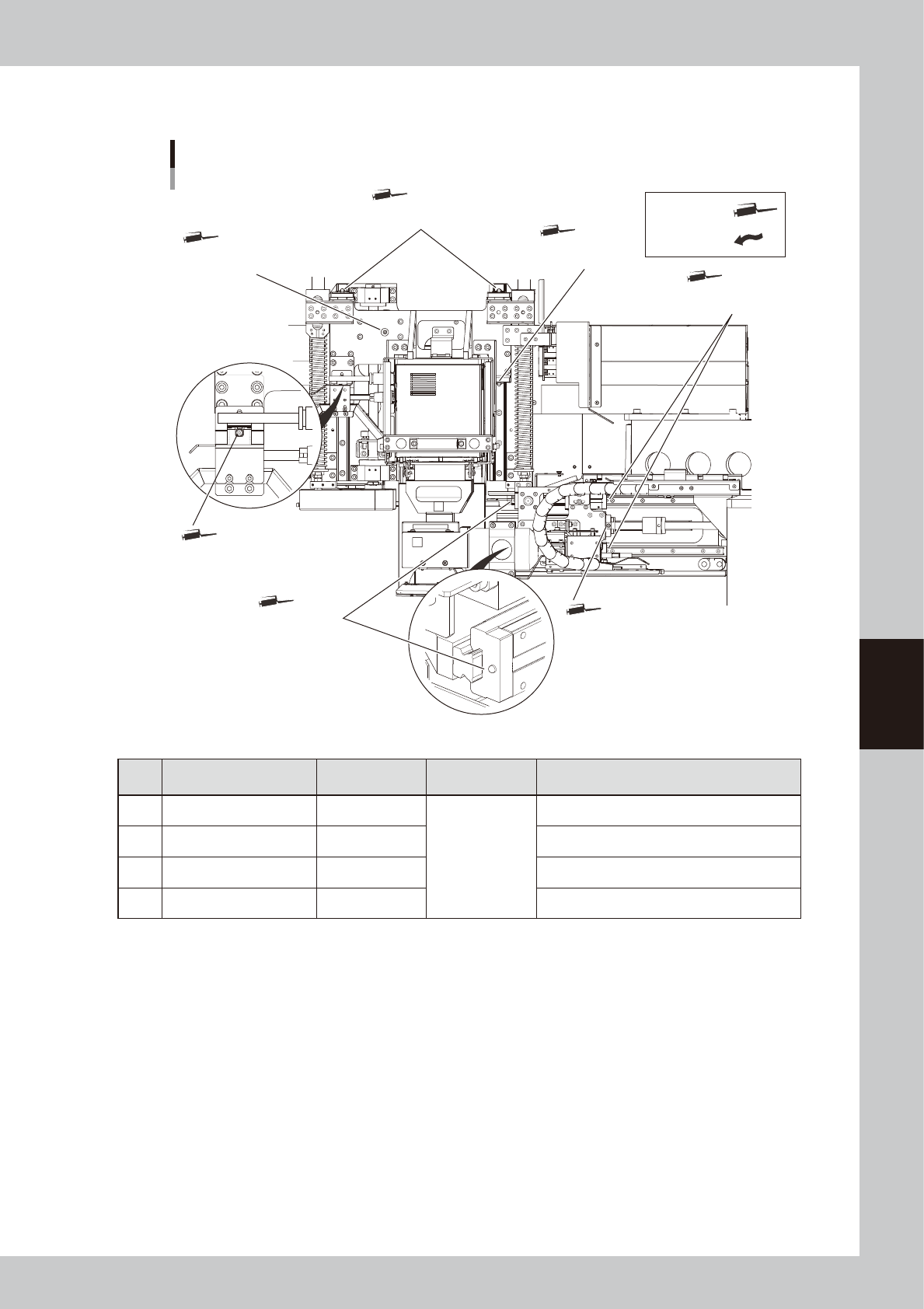

2.1.6 HZ and HS-axis guide and ball screw
Lubrication points on HZ and HS axes
1. HZ axis guide
Grease nipple
1. HZ axis guide
Grease nipple
3. HS axis guide
Grease nipple
3. HS axis guide
Grease nipple
1. HZ axis guide
Grease nipple
2. HZ axis ball screw
Grease nipple
4. HS axis ball screw
Grease nipple
Grease gun:
Apply by hand:
53507-M6-00
Unit to be lubricated
Lubrication
point
Interval Lubrication method
1 HZ-axis guide 4
Once every
6 months
Grease gun with standard nozzle
2 HZ-axis ball screw 1 Grease gun with standard nozzle
3 HS-axis guide 4 Grease gun with standard nozzle
4 HS-axis ball screw 1 Grease gun with standard nozzle
