xxviii Safety instructions 3.4 Label positions W arning/caution labels are attached to the Y AMAHA products to ensure safe and correct use. Check that the information on each label is clearly legible and comply with the …
xxvii
Safety instructions
Potential
hazard
Could cause machine damage (collisions with head, etc.).
To avoid
hazard
Verify that no objects have been placed on the top cover of the feeder exchange carriage (for
YSM40 and Z:LEX (YSM20
))
.
Applicable
machines
Feeder exchange carriage
(YSM40/YSM40R, Z:LEX(YSM20/YSM20W))
Case
Setup
Potential
hazard
Could cause machine damage (collisions with head, etc.).
To avoid
hazard
Verify that no objects have been placed on the top cover of the feeder exchange carriage (for YSM40
and Z:LEX (YSM20)).
Applicable
machines
Feeder exchange carriage
(YSM40/YSM40R, Z:LEX(YSM20/YSM20W))
Case
Setup
Potential
hazard
Machine damage
To avoid
hazard
Do not insert or remove any connector while power is on.
Applicable
machines
cATS10 (Z:LEX(YSM20/YSM20W) )
Case
Setup
xxviii
Safety instructions
3.4 Label positions
Warning/caution labels are attached to the YAMAHA products to ensure safe and correct use. Check that the
information on each label is clearly legible and comply with the instructions.
For safety precautions other than those on the labels shown in this section, see safety instructions "1. Safety".
n
NOTE
When connecting power to this equipment, refer to "Power connection terminals" described in the appendix of the
operator's manual.
n
NOTE
The label contents and positions are slightly differ depending on machine model. For the label contents and positions,
refer to the operator's manual for the machine being used.
Warning/caution labels

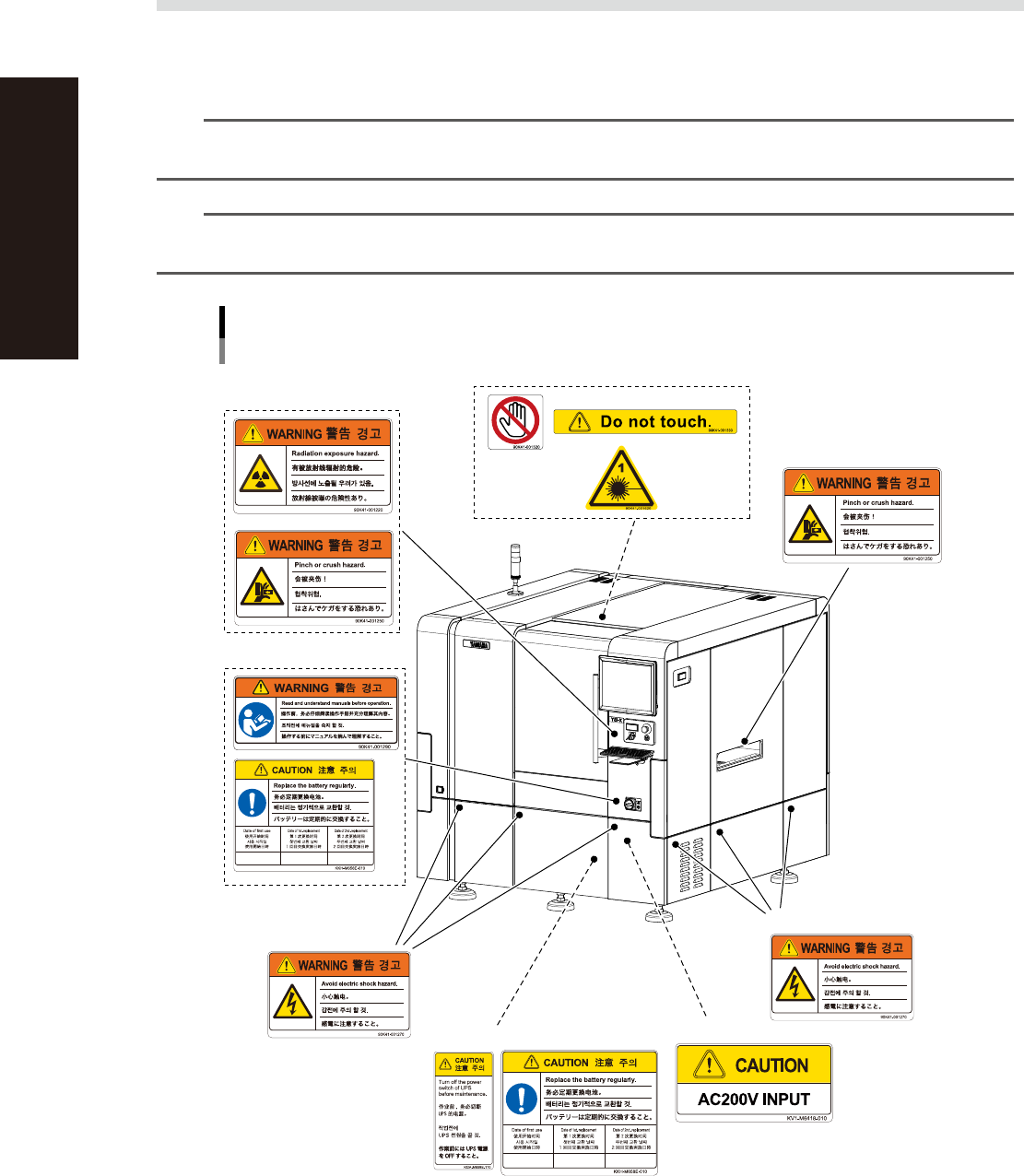

Front side
■ Lower panels
■ Side panel
■ Main switch
■ Operation and data input section
■ Conveyor opening
■ Inside of machine
■ Panels inner side
■ UPS behind panel
93201-M6-10
xxix
Safety instructions
Warning/caution labels

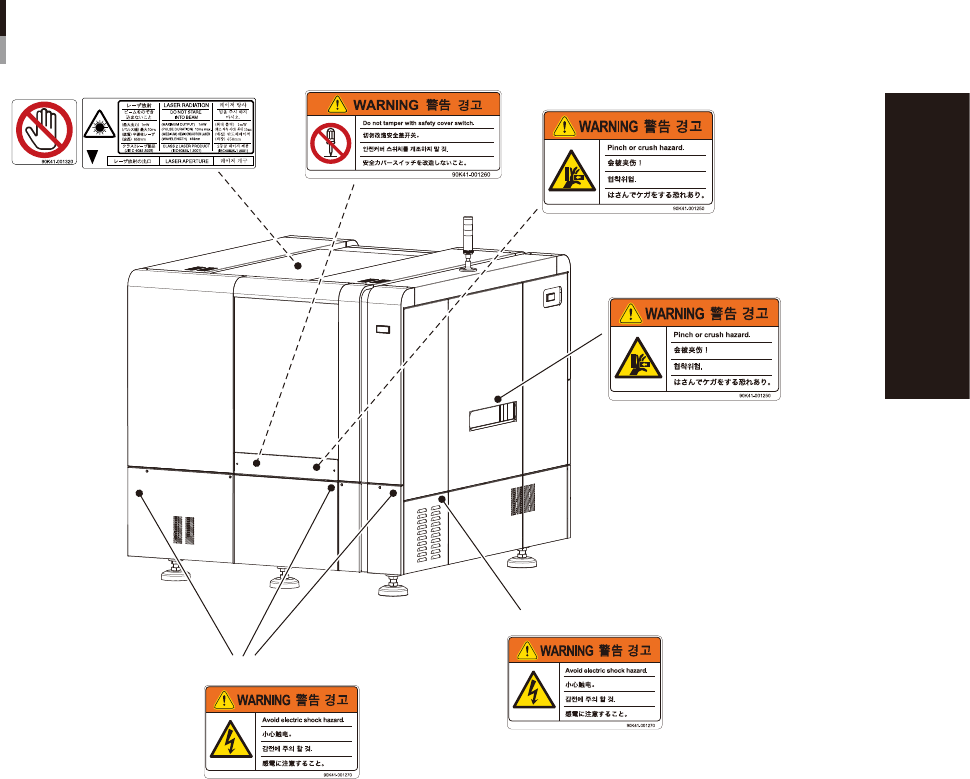

Rear side
■ Lower panels
■ Laser unit inside machine
■ Panels inner side
■ Conveyor opening
■ Panels inner side
■ Side panel
93202-M6-00
