1-5
1
Part names and functions
2.

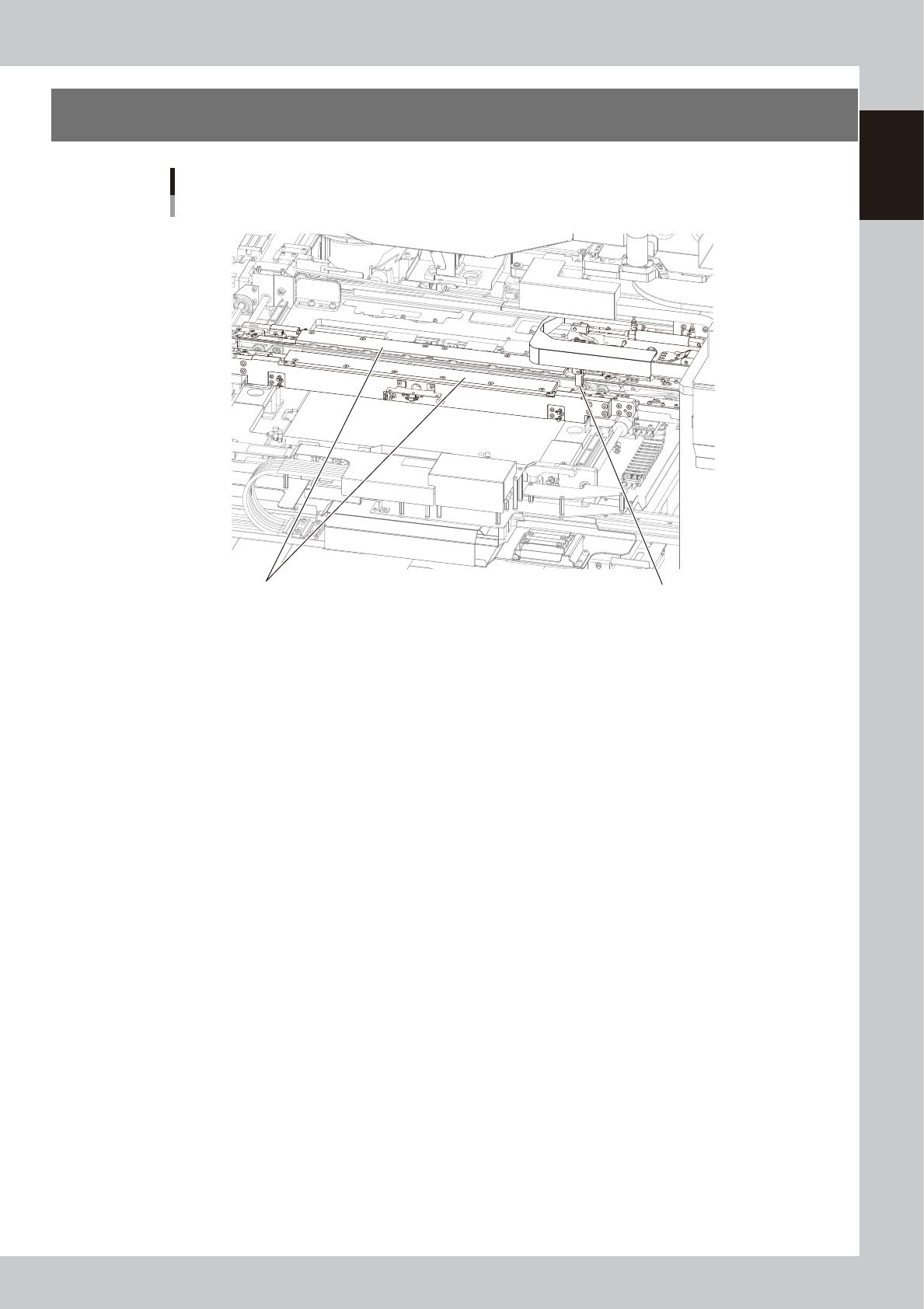

Conveyor unit
2. Board stopper1. Board clamp unit
Conveyor unit
YSi-X conveyor unit
23106-M6-10
1. Board clamp unit
This unit clamps a board in place for inspection.
There are two clamping methods: one is the board clamp that secures the board from the top and bottom and the other is
the side clamp that secures the board by pushing laterally on the board edge (W-axis direction).
2. Board stopper
When a board is carried in on the conveyor, the board stopper stops it in the clamping position.
Board sensor
Board sensors are arranged at the conveyor entrance and exit, and also at the board clamp position.
1-6
1
Part names and functions
3. Laser height sensor
The following explains the laser height sensor used for height measurement.
Laser height sensor
Laser height sensor (rotary type)
HL-axis rotary drive unit (inside cover)
23107-M6 -00
n
Height measurement
Height measurement is one of inspection status (inspection modes).
A laser height sensor is used to measure the height of parts within a step (specified inspection area) to determine whether
the measurement result falls within a user-specified range. When the result is within the specified range, it is determined
to be "OK" (pass). If not, it is determined to be "NG" (fail).
n
Height measurement method
Reference
The height of the reference position is measured as the reference height.
The height of parts is the difference between the reference height and the height obtained by “line measurement” or
“point measurement".
Line measurement (lead coplanarity)
Detects "lead coplanarity" of lead components such as QFP and SOP by measuring their heights.
Point measurement
· Chip floating check
Detects "chip floating" by measuring the height of a chip, which is difficult to find with a vision camera. Also detects
whether or not chip components are mounted.
· BGA coplanarity check
Detects "BGA coplanarity" and lead connection faults due to incomplete placement of a BGA, by measuring the
difference in BGA height.
· Polarity check
Detects a concave mark for polarity by measuring the difference in height, which is difficult to find with a vision
camera.
n
Board warp correction
When performing X-ray inspection, the height of boards can be measured with the laser height sensor to check and
correct the warping of boards.
n
Rotary angle of laser height sensor
The height of parts cannot be measured if the laser beam is blocked by other parts. To avoid this, the angle at which the
laser height sensor measures the height can be selected from 4 directions.
TIP
For instructions on how to use the laser height sensor, see "Laser height sensor" at the end of this manual.
1-7
1
Part names and functions
4. Axis configuration
The YSi-X servomotor-controlled axis configuration and movement are shown in the drawing and table below.
YT-axis
MS-axis
HZ-axis
LY-axis
LX-axis
HS-axis
XT-axis
Plus direction
Minus direction
Board
Conveyor rail
Conveyor table
Axis configuration
Example of right-to-left board flow
W-axis
HL-axis
X-ray generator
Optical camera
X-ray camera
X-ray camera table
Laser height sensor
Stopper unit
23108-M6-00
n
Function of each axis
Axis Function
XT-axis Moves the conveyor (board) in parallel with the board transport direction.
YT-axis Moves the conveyor (board) perpendicular to the board transport direction.
W-axis Changes the conveyor width.
MS-axis Moves the stopper unit according to the size (length) of boards transported.
HZ-axis
Changes the distance between the X-ray generator and board. (For zooming of X-ray
images)
HS-axis
Moves the optical camera to lower the X-ray generator. (For moving back the camera to
allow zooming of X-ray images)
LX-axis Moves the X-ray detector in parallel to the board transport direction.
LY-axis Moves the X-ray detector perpendicular to the board transport direction.
HL-axis Rotates the laser height sensor.
