2-5 2 Basic operation 2.2 Ending T o end the machine operation, follo w these steps. 1 On the main screen, press the [Off ] button. A power-off confirmation dialog box appears. Press the [Y es] button. Power-off confirma…
2-4
2
Basic operation
6
Change the conveyor width.
A dialog box for changing the conveyor width appears. Press the [Yes] button to change the conveyor
width to match the board width.
n
NOTE
A dialog box for changing the conveyor width appears. Press the [Yes] button to change the conveyor width to
match the board width.

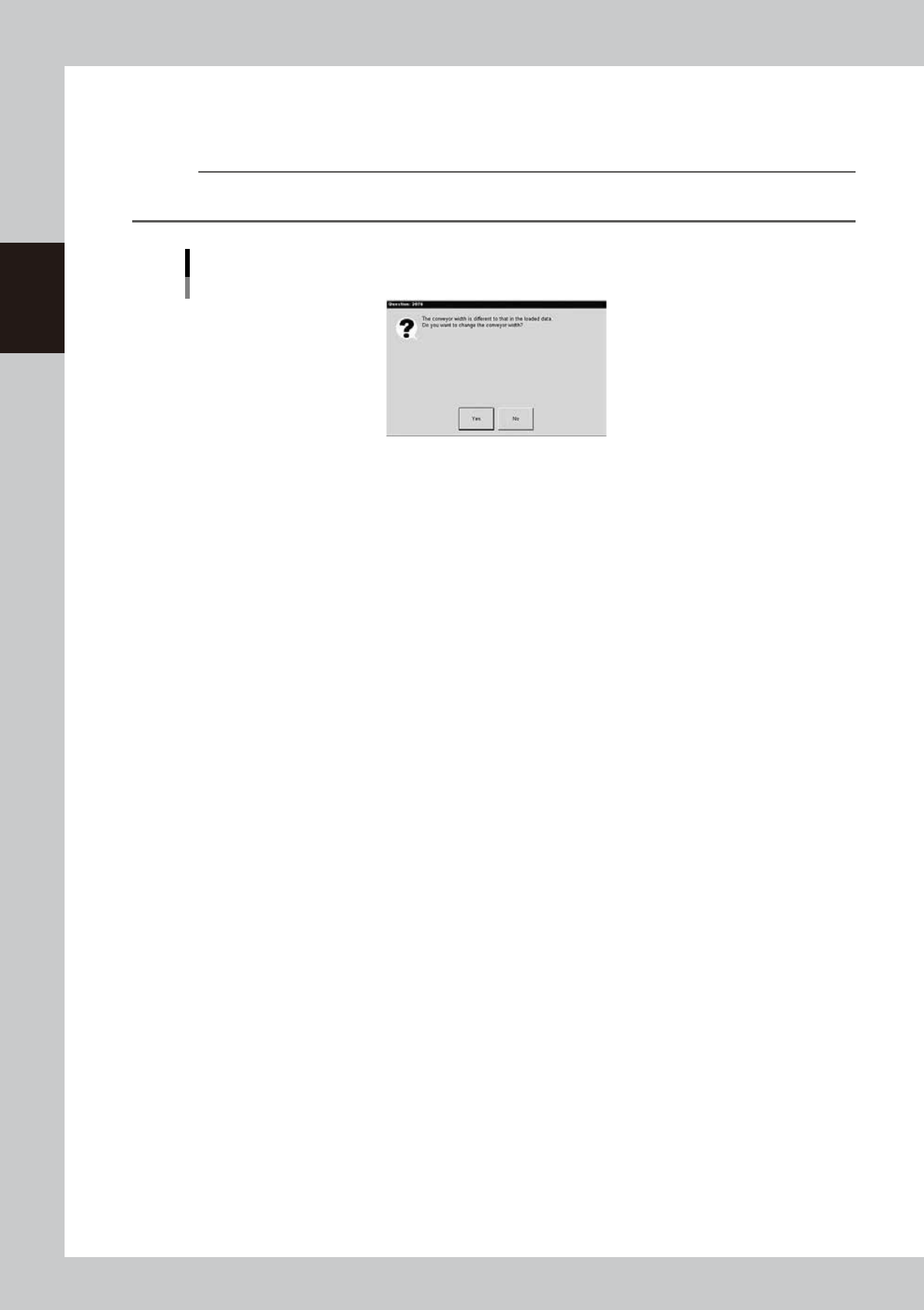

Dialog box for changing the conveyor width
24206-M6-00
2-5
2
Basic operation
2.2 Ending
To end the machine operation, follow these steps.
1
On the main screen, press the [Off] button.
A power-off confirmation dialog box appears. Press the [Yes] button.
Power-off confirmation dialog
Press the [Yes] button.
24205-M6-10
2
Move each axis back to its origin position.
When a dialog box for moving each axis appears, press the [Yes] button.
3
When a dialog box appears asking whether to end the operation, press the [Yes]
button.4
e
4
Press the emergency stop button.
When a dialog box for emergency stop appears, press the emergency stop button.
The YSi software end and Windows (OS) shuts down, displaying a message stating that you can turn off
the power.
c
CAUTION
Do not turn off the power until the above message appears. If you turn off the power without following the correct
sequence, the machine might be damaged.
5
Turn off the machine main switch.
When a power-off message appears, turn the main switch on the front lower right of the machine
counterclockwise to the OFF position.
6
Pull out the safety key.
Turn the X-RAY safety key to the “DISABLE” position and pull it out.
