4
Maintenance
3. Preparing for maintenance tasks
3.1 Consumable parts
The term "consumable parts" in this manual indicates parts subject to continual wear during use causing
gradual loss of functions.
The following parts are classified in this manual as consumable parts and should be replaced as needed during
maintenance.
n
Consumable parts list (optional parts)
Product Name Parts List Designation Parts No.
Conveyor belt (standard) BELT 1, CONVEYOR KLC-M914F-00X
Air filter element FILTER ELEMENT KLC-M8506-00X
Oil mist filter element MIST FILTER ELEMENT KLC-M8507-00X
Relay 1 SAFETY RELAY 2 KLB-M6522-00X
Relay I/O SPARE RELAY KGA-M6522-20X
Relay 2 RELAY,G2R-1-SND KV5-M6522-10X
Front door damper DAMPER,DOOR KLC-M13M2-00X
Front door damper strike PLATE,STRIKE KLC-M13M3-00X
UPS battery BATTERY,UPS2 LG0-M53H8-01X
c
CAUTION
• Parts (part numbers) listed in this manual are current as of the time this manual was issued.
• When placing an order, always contact us to obtain the latest information.
• Part numbers are subject to change without notice. Please contact our sales representative before ordering.
4-6
4
Maintenance
3.2 Maintenance tools
3.2.1 Cleaning tools
Cleaning tools
Parts supplied with machine
Cotton swab sticksLens blower brush Lens cleaner
CLEANER, VISION SET
53401-M6-10
n
Cleaning tools
Parts supplied with machine
Product Name Parts List Designation Parts No. Note
Cotton swab sticks SWAB KGA-M3802-00X
CLEANER, VISION SET
(KHW-M3801-YYY)
Lens blower brush BLOWER KGA-M3803-00X
Lens cleaner CLEANER, LENS KGA-M3801-00X
Cleaning tools
Optional parts
Vacuum ASSY Air blow tool
53455-M6-00
n
Cleaning tools
Optional parts
Product Name Parts List Designation Parts No. Note
Vacuum ASSY VACUUM ASSY KHY-M88V0-A0X For cleaning (vacuum)
Air blow tool AIR BLOW TOOL KU4-M8590-00X
c
CAUTION
Part numbers are subject to change without notice. Please contact our sales representative before ordering.
4-7
4
Maintenance

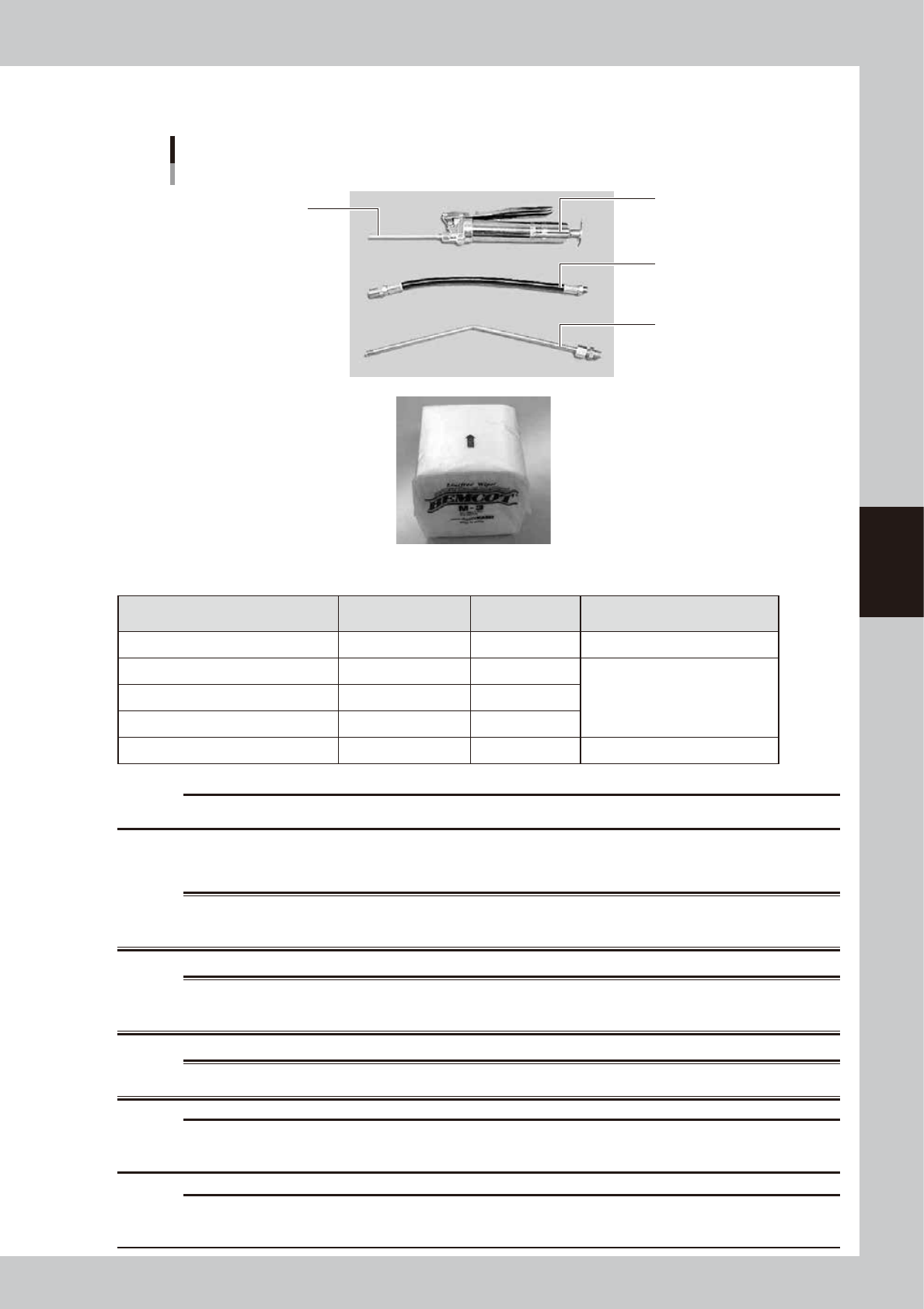

3.2.2 Lubricating tools and grease
Lubricating and greasing tools
Lubricating tools
Grease gun
Standard nozzle
Grease gun nozzle
(flexible type)
Grease gun nozzle
(30 deg. bent type)
Cleaning wiper
GREASE GUN SET
53402-M6-00
n
Lubricating and greasing tools
Product Name
Parts List
Designation
Parts No. Note
Lithium-based grease GREASE PACK K48-M3856-00X NSL 80g
Grease gun (with standard nozzle) GREASE GUN K48-M3852-01X
GREASE GUN SET
KHW-M3852-YYY
Nozzle (flexible type) GREASE NOZZLE K48-M3857-00X
Grease gun nozzle (30 deg. bent type) GREASE NOZZLE K48-M3854-00X
Cleaning wiper WIPER KGS-M3840-YYY
c
CAUTION
Part numbers are subject to change without notice. Please contact our sales representative before ordering.
n
Precautions when handling grease
w
WARNING
INFLAMMATION MAY OCCUR IF GREASE OR LUBRICANT GETS INTO THE EYES. BEFORE HANDLING THE GREASE OR
LUBRICANT, WEAR SAFETY GOGGLES TO ENSURE THE GREASE OR LUBRICANT DOES NOT GET INTO THE EYES.
w
WARNING
INFLAMMATION MAY OCCUR IF GREASE OR LUBRICANT COMES INTO CONTACT WITH SKIN. BE SURE TO WEAR PROTECTIVE
GLOVES TO PREVENT CONTACT WITH SKIN.
w
WARNING
DO NOT TAKE ORALLY OR EAT GREASE OR LUBRICANT. EATING WILL CAUSE DIARRHEA AND VOMITING.
c
CAUTION
After use, tightly cap the grease tube to ensure dust, debris and moisture do not enter inside. Store the grease in a
dark location not exposed to direct sunlight and keep it away from fire and heating sources.
c
CAUTION
Be sure to use the specified grease and apply it to the specified location by following the instructions in this manual.
Failure to follow the instructions may cause damage to the machine.
