2 Operational safety Use r manual SIPLACE TX V2 2.2 Warning labels From software version 711.1 04/2018 36 Fig. 2.2 - 2 Warning labels - location 1 (default label) Item W 006, item no. - 03155631 -01 Item W 024, item no. …
User manual SIPLACE TX V2 2 Operational safety
From software version 711.1 04/2018 2.2 Warning labels
35
2.2.1 Warning labels on the placement machine (default label)

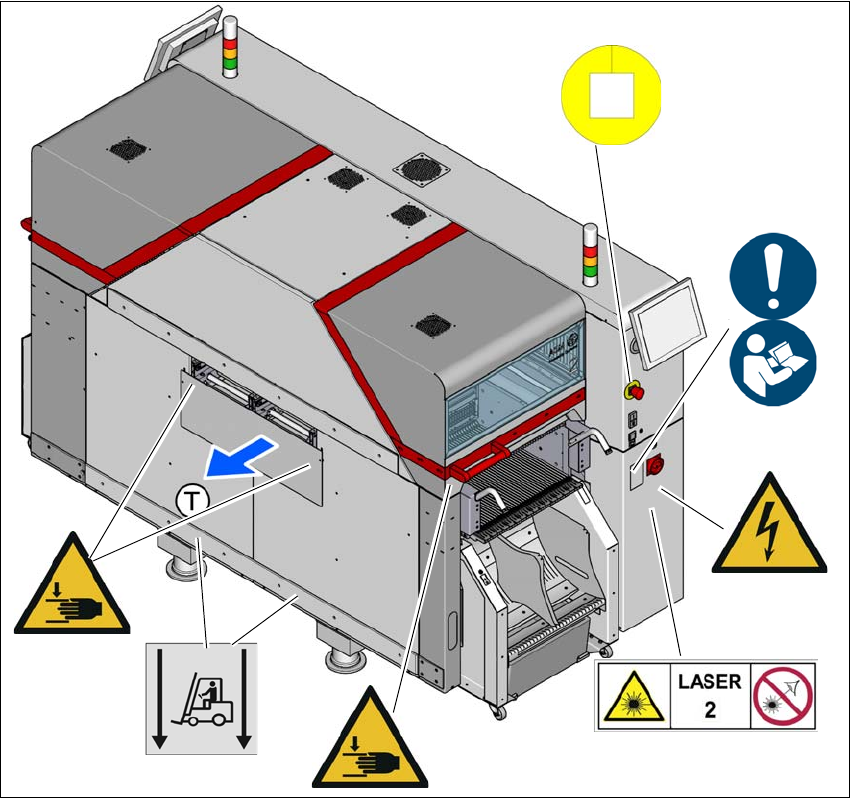

Fig. 2.2 - 1 Warning labels - location 2 (default label)
(1) Warning - fork lifts (pallet truck or fork lift truck) - attach here
Item W 002, item no. 03155798-01
Item W 024, item no. 03155346-01
Item W 012, item no. 03155378-01
Item W 210, item no. 03155796-01
Item Laser mark - risk class 2, item no. 03155298-01
(T) Direction of PCB transport
W 024
W 210
W 024
M 002
W 012
(1)
Laser mark, risk class 2
2 Operational safety User manual SIPLACE TX V2
2.2 Warning labels From software version 711.1 04/2018
36

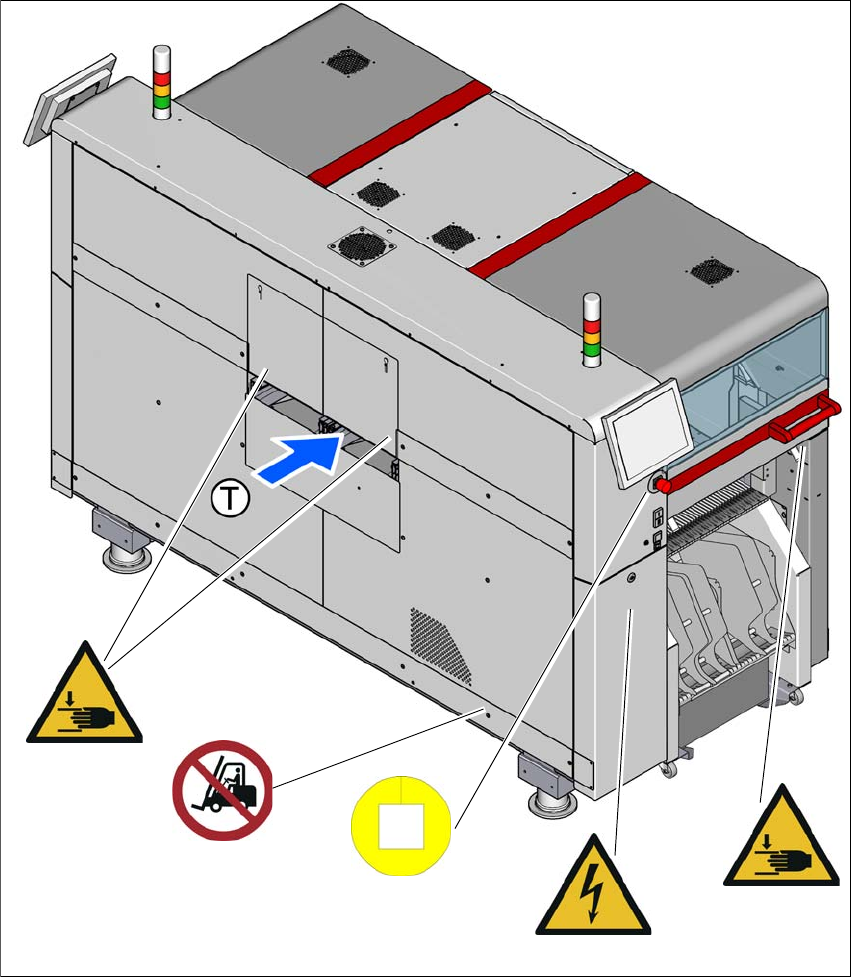

Fig. 2.2 - 2 Warning labels - location 1 (default label)
Item W 006, item no. - 03155631-01
Item W 024, item no. 03155346-01
Item W 012, item no. 03155378-01
Item W 210, item no. 03009350-01
(T) Direction of PCB transport
W 210
W 012
P 006
W 024
W 024
User manual SIPLACE TX V2 2 Operational safety
From software version 711.1 04/2018 2.2 Warning labels
37

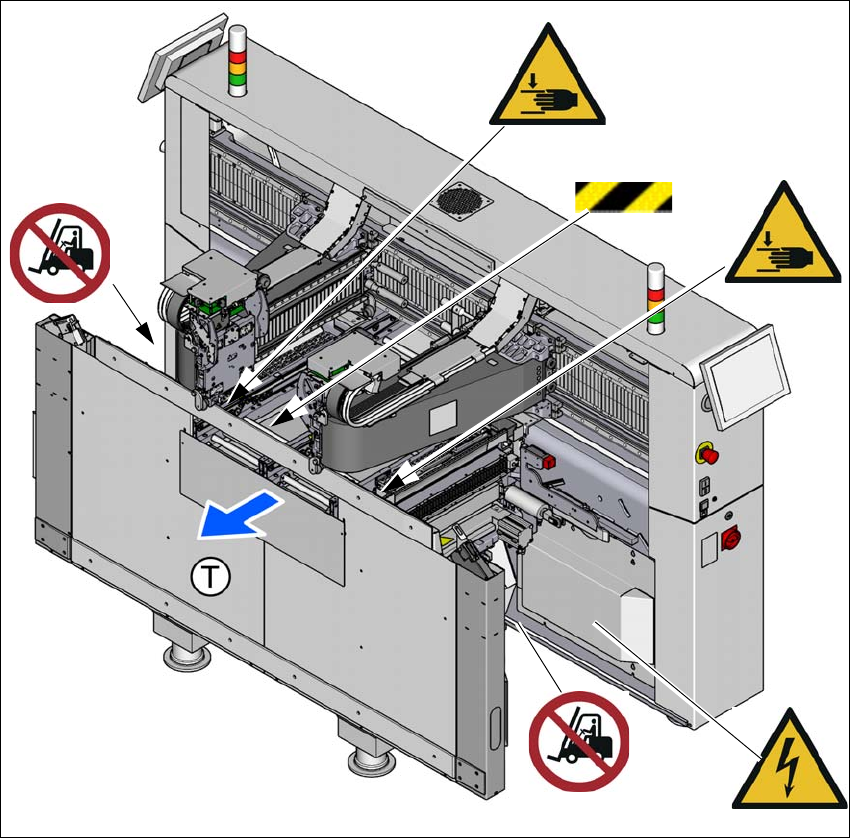

Fig. 2.2 - 3 Warning label in the placement machine (label for China, example of SIPLACE TX2i V2 shown)
(1) Warning strips on the hand guard, inside
Item W 006, item no. - 03155631-01
Item W 024, item no. 03155346-01
Item W 012, item no. 03155378-01
(T) Direction of travel
The warning labels W 024 are attached to the inside of the metal cover panels.
The warning strips are attached to the inside, on the hand guard.
1
W 024
W 012
P 006
P 006
W 024
