User manual SIPLACE TX V2 2 Operational safety
From software version 711.1 04/2018 2.2 Warning labels
47
2.2.6 Warning labels on the gantries

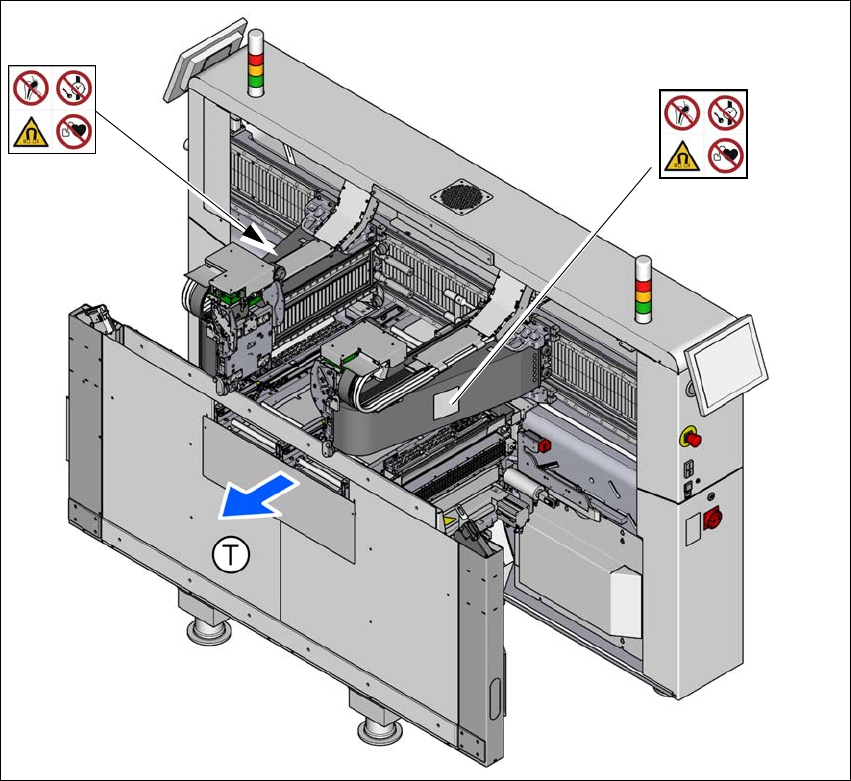

Fig. 2.2 - 8 Warning labels on the gantries (example SIPLACE TX2i V2)
2
Item W 006, item no. 03155812-01
W 006
W 006
2 Operational safety User manual SIPLACE TX V2
2.2 Warning labels From software version 711.1 04/2018
48
2.2.6.1 Warning label W 006
2
W 006 in fig. 2.2 - 8, page 47, item no. 03155812-01
(Quantity per placement machine: 2)
2
2
2
CAUTION
Data loss due to powerful magnetic fields
There is a risk that the powerful magnetic fields could corrupt data on data media or credit
cards and check cards.
Keep data carriers and check cards away from the placement machine.
DANGER
Danger to life from powerful magnetic fields inside theplacement machine!
When protective covers are opened inside the placement machine, the life of persons
with the following passive or active implants is put at risk:
– Pacemakers
– Defibrillators
– Insulin pumps etc.
At-risk people must not stand in the immediate vicinity of the placement machine.
WARNING
Danger of crushing
There is a danger of crushing for persons with passive metal implants (e.g. plates,
screws).
Never reach into the placement machine when the protective covers are open and
do not bend over the open placement machine.
Do not bring any metal objects into the danger area.
User manual SIPLACE TX V2 2 Operational safety
From software version 711.1 04/2018 2.2 Warning labels
49
2.2.7 Warning labels on the SIPLACE SpeedStar C&P20 P2
2
Fig. 2.2 - 9 Warning labels on the SIPLACE SpeedStar C&P20 P2
(1) Temperature label, item no. 03031926-01
(2) Housing for the star motor
(3) Handle
(4) Warning label - risk group 2
Item Laser mark - risk class 2, item no. 03155298-xx
(1)
(3)
(2)
(4)
Laser mark, risk class 2
