2.5 Safety features
2.5.1 Protective covers
The travel range of the gantries is covered with two movable protective covers. The protective
hoods and covers serve as protective devices which prevent unauthorized access to the inside of
the placement machine.
2
2

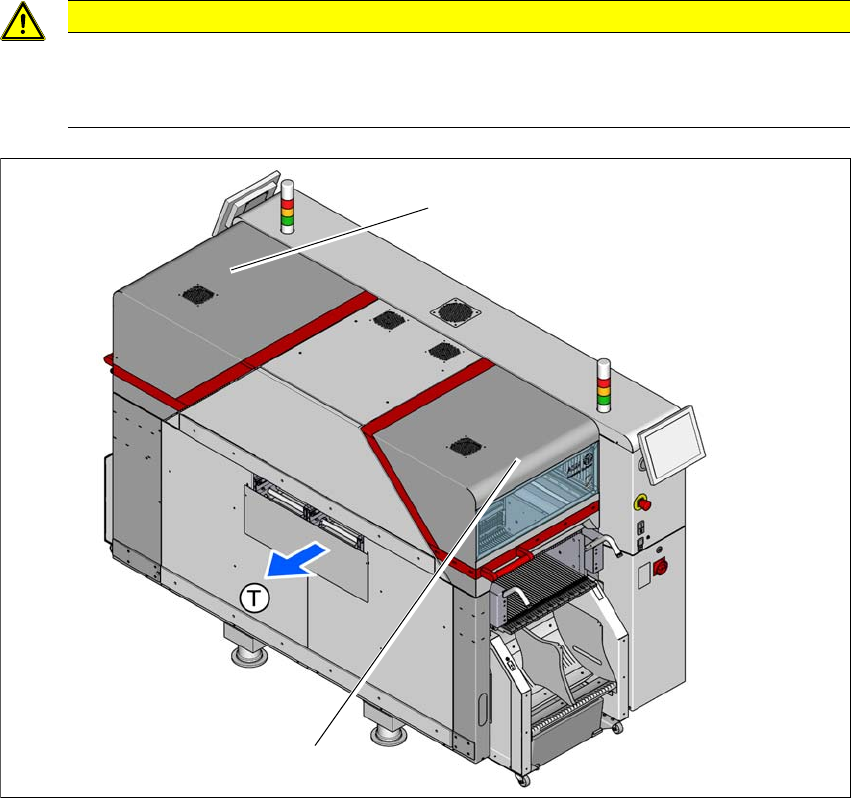

Fig. 2.5 - 1 Protective covers
(1) Protective cover location 1
(2) Protective cover location 2
(T) Direction of travel
CAUTION
Risk of damage!
The protective covers and other covers could be damaged if too much force is exerted.
Do not stand on or climb up the protective covers and other covers.
(1)
(2)
User manual SIPLACE TX V2 2 Operational safety
From software version 711.1 04/2018 2.5 Safety features
71
Function 2
If one of the protective covers is opened upwards, the power supply to the gantry axes will be im-
mediately interrupted. The gantry axes stop moving. The message "Close cover" is displayed on
the screen.
Close the protective covers and press the START button (item 2 in fig. 2.5 - 2), to continue
placement.
2 Operational safety User manual SIPLACE TX V2
2.5 Safety features From software version 711.1 04/2018
72
2.5.2 Switches and buttons
2.5.2.1 Positions of switches and buttons
2
Fig. 2.5 - 2 Position of switches and buttons - PCB output end (location 2)
(1) EMERGENCY STOP button
(2) Start button (green)
(3) Stop button (black)
(4) Main switch
(5) Button for docking and undocking the component trolley at the respective location
(T) PCB transport direction
